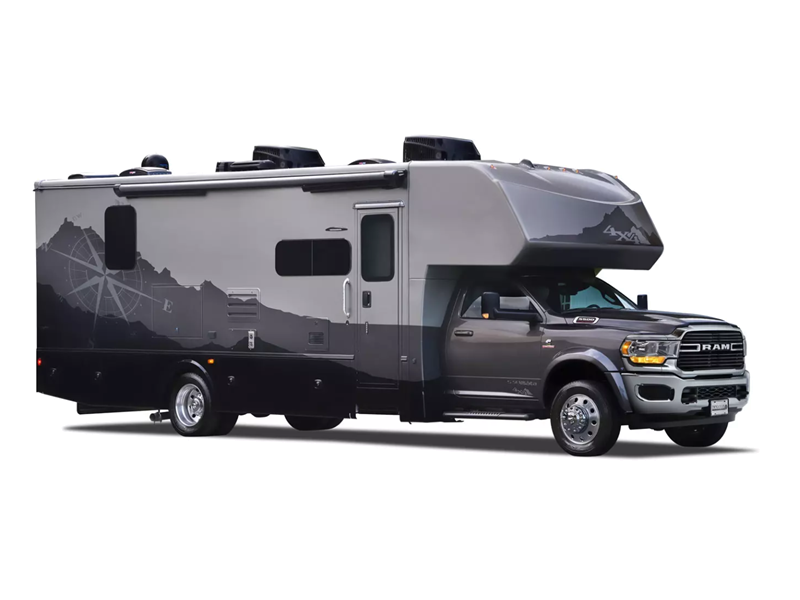

Dynamax isata 5 Motor Home Super C - Diesel

Standard Features (2024)

Chassis

• Ram® 5500 SLT Chassis- Factory 4-Wheel Drive
• Cummins® 6.7L I6 Turbo Diesel Engine (360hp/800 ft.-lbs. of Torque)
• AISIN® HD 6-Speed Automatic Transmission
• 52-Gallon Fuel Tank
• 9-Gallon Diesel Exhaust Fluid Tank
• Trailer Hitch (10,000 Tow lbs./750 tongue lbs. ) with 7-Way Round Tow Connection
• Weigh Safe Trailer Hitch Receiver
• Active Brake Assist
• Adaptive Cruise Control
• Ram® OEM Trailer Brake Control
• Cummins® Smart Exhaust Brake System
• Ram® ESC Suspension and Stability Package
• DynaRide+ Upgraded Suspension System featuring Four-Point Bilstein® Gas-Charged Shock Absorbers and Rear MORryde® RSX™ Rubber Shear Springs with Heavy-Duty Rear Sway Bar
• Momentary Battery Booster Switch for Connecting Chassis and House Batteries
• Tire Pressure Monitoring System
• Dual 12V Chassis Batteries
• Dual 220-Amp Alternators (440 Total Amps)
• 4-Wheel ABS
• B-20 Bio Diesel Capability
• Ram® 50KSI Chassis Construction
• Engine Block Heater
• Aluminum Running Boards
• Front and Rear Tires: 225/70R19.5G (All Position Front And Rear Traction)
• Single Front Wheels: Aluminum (19.5” x 6.0”) *Outside Rims are Polished
• Dual Rear Wheels: Aluminum (19.5” x 6.0”) *Outside Rims are Polished
• 4.88 Rear Axle Ratio
• Daytime Running Lights

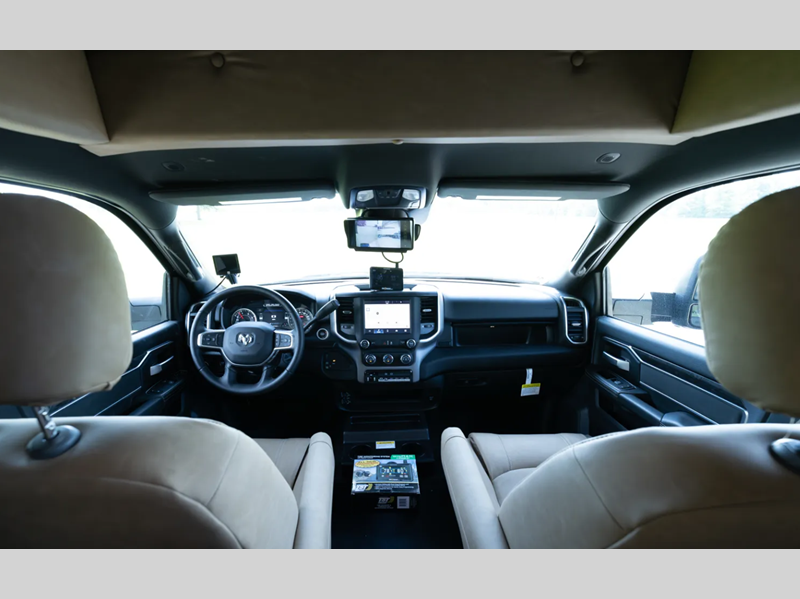

• Heated, Leatherette Reclining Driver and Passenger Seats with Armrest
• Power Driver Seat
• Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
• 12V and USB Accessory Ports
• Temperature/Compass Gauge with Traveler/Mini-Trip Computer

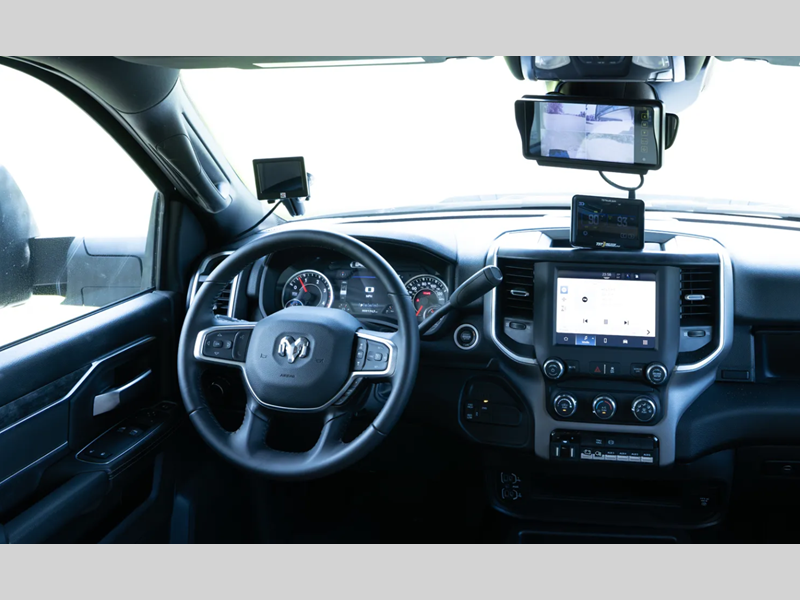

• 8.4” Touch Screen Dash Radio with U-Connect®, Hands-Free Voice Command with Bluetooth®, Sirius/XM® Radio-Ready, Media Hub, (SD, USB, AUX), Apple® CarPlay™, Android® Auto™, and Six (6) Speakers
• Heated Steering Wheel
• Adjustable Steering Column
• Power and Heated Exterior Mirrors with Courtesy Lamps and Turn Signals
• Power Windows and Locks
• 3-Point Seat Belts
• Front Safety Airbags
• Drink Holders

Construction

• 2” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
• Composite Exterior Fiberglass (No Exterior Wood)
• Aluminum-Framed Floor
• Composite Flooring Substrate (Lightweight & Moisture Resistant)
• Aluminum-Framed Roof Trusses
• Crowned, One-Piece Fiberglass Roof
• Foil-Lined Ductwork Throughout
• Fiberglass Front Cap, and Front Wing Panels
• Rear Bumper
• Automatic, 4-Point Hydraulic Leveling Jacks
• Dark-Tinted, Frameless Windows
• Seamless Rotocast Storage Compartments with LED Lighting
• Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches
• Electric Slide System

Exterior

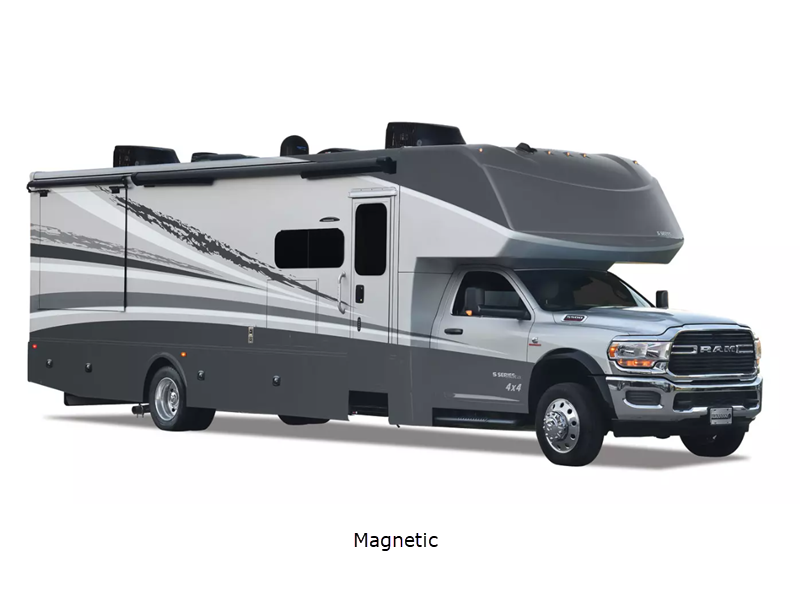

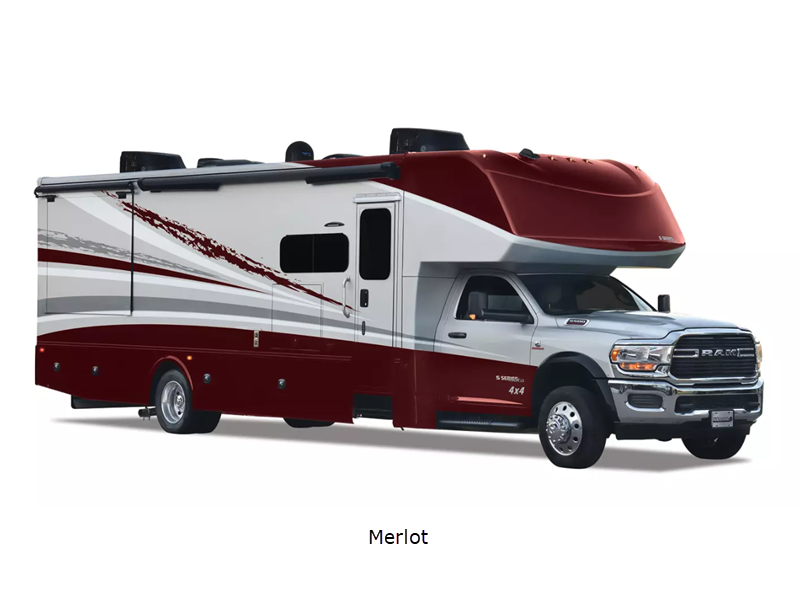

• Custom Full Body Paint Package
• Premium Cut and Buffed Paint Finish
• Front-End Diamond Shield® Paint Protection
• Slideout Toppers
• Armless Patio Awning with LED Lighting and Motion-Activated Retraction
• LED Patio Light
• Power Entry Steps
• Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
• Keyless Entry Touch Pad at Entry Door
• Lighted Acrylic Entry Grab Handle
• Exterior Wall-Mounted Entertainment Center with 32” LED Smart TV (N/A - 28SS)
• Exterior TV Mount (28SS Only)
• Front and Rear LED Clearance and Marker Lighting
• Rear LED Docking Lights
• Rear "DYNAMAX" Rock Guard

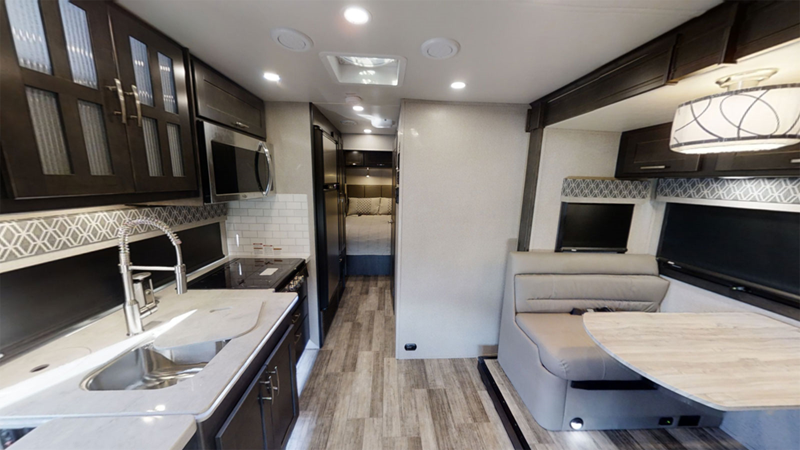

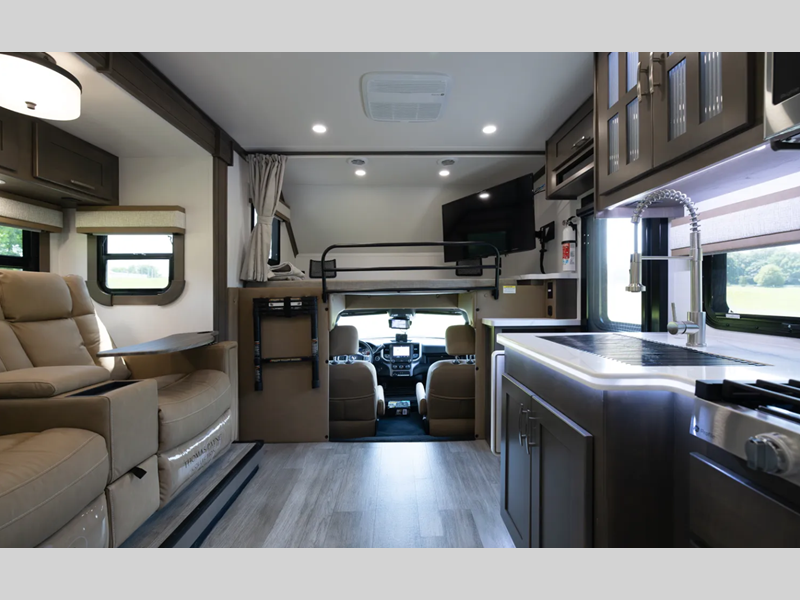

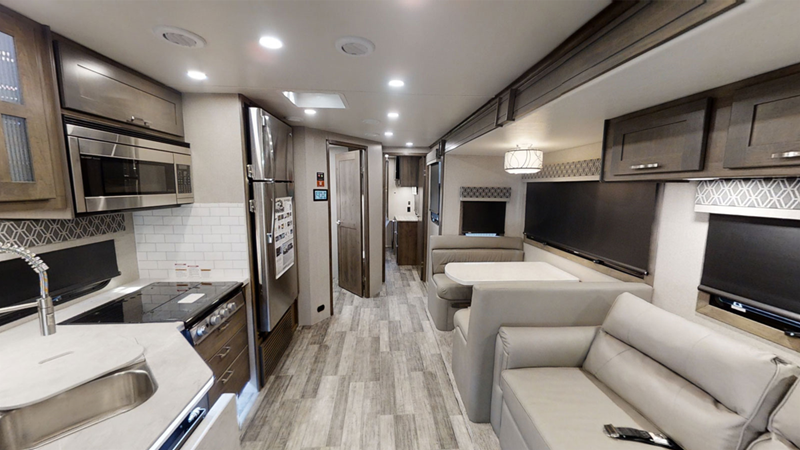

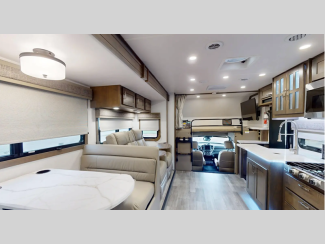

Interior

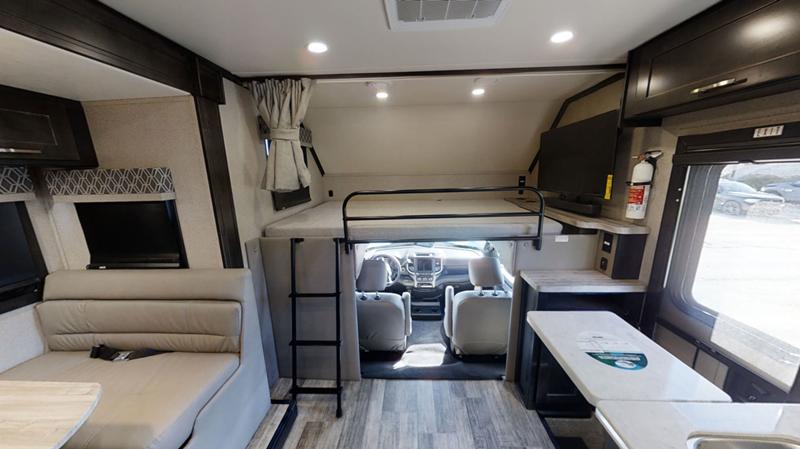

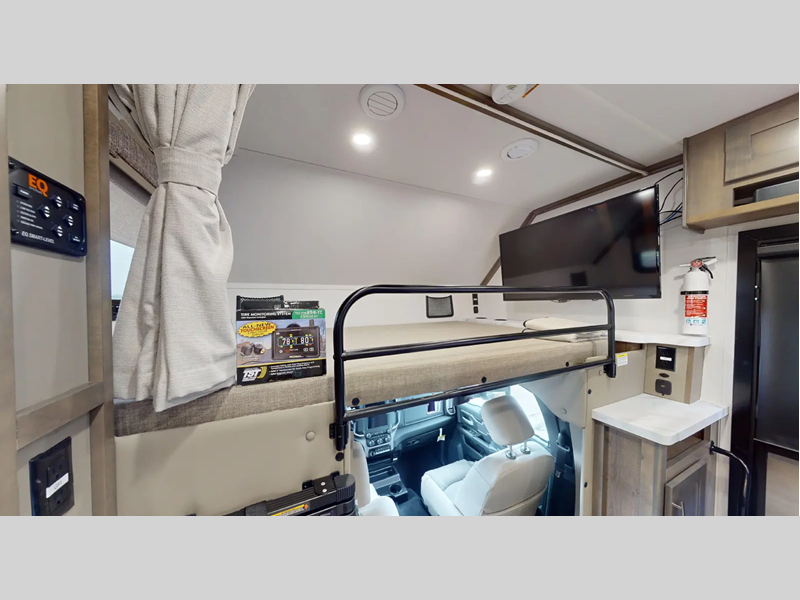

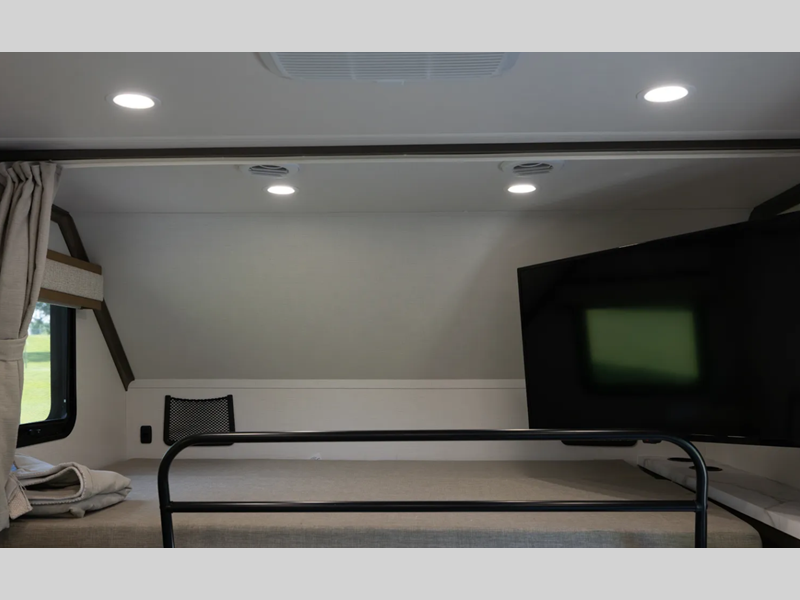

• Front Cab-Over Bunk Area with Mattress (50” x 80”) and Privacy Curtain
• Premium Vinyl Flooring Throughout
• Soft-Touch Padded Vinyl Ceiling
• LED Recessed Ceiling Lights

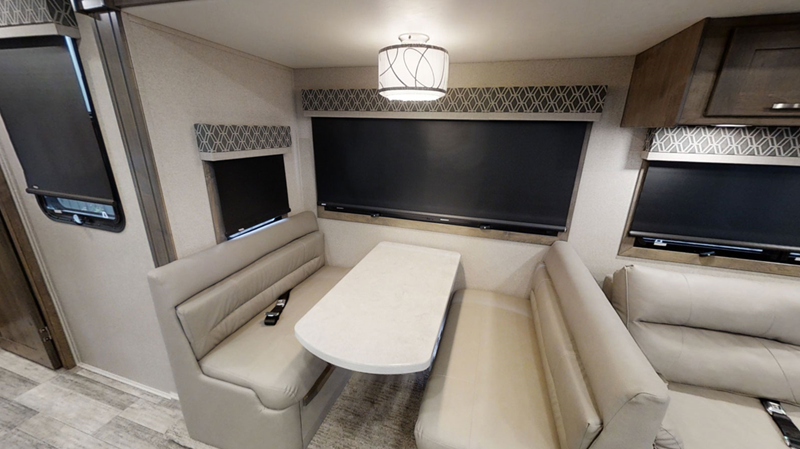

• Sprung, Residential Style Dinette Seats with Lift Up Storage
• Tri-Fold Sofa (30FW, 34DS)
• Coordinating Window Treatments
• Blackout Roller Shades
• Hardwood Shaker-Style Cabinetry

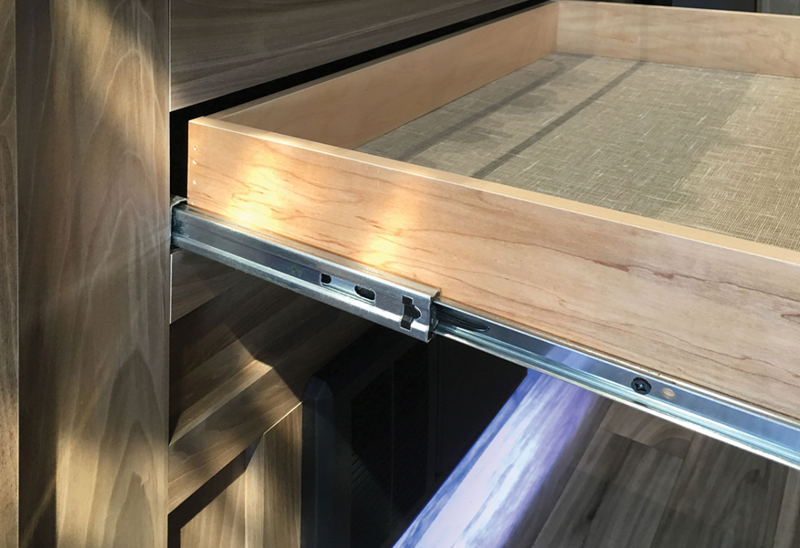

• Full Extension, Soft-Closing Drawer Guides (Where applicable)
• Hidden Hinges
• 39” LED Smart TV (Living Area)
• Sound Bar (Living Area)
• Entry with Non-Skid Rubber Steps and Risers
• Thermal, Reflective Front Privacy Shades
• USB Charging Ports

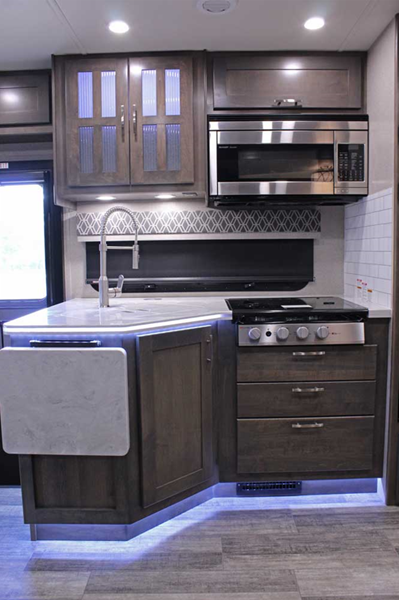

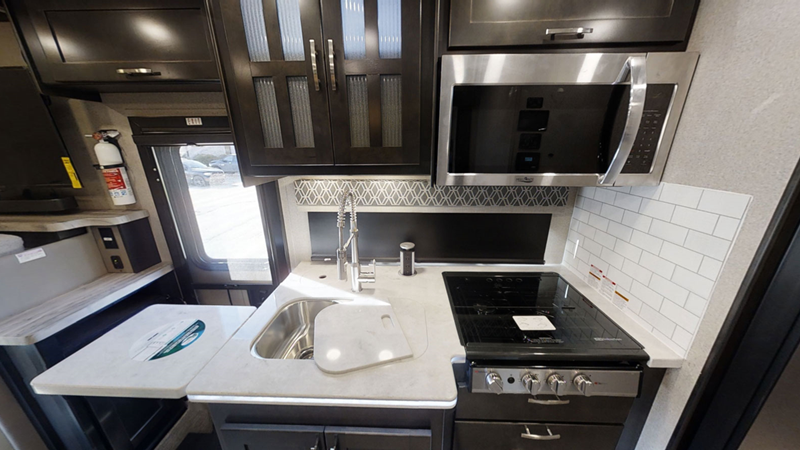

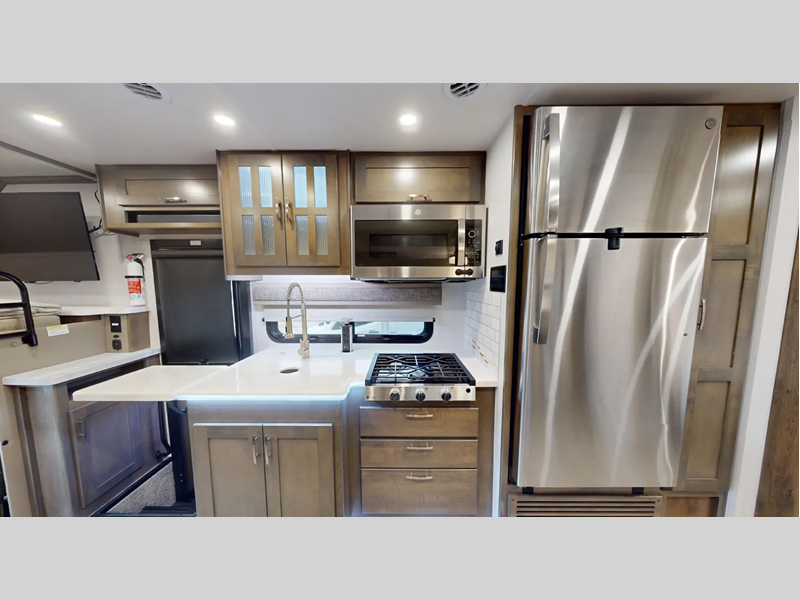

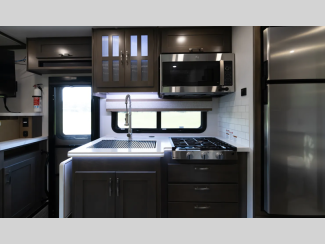

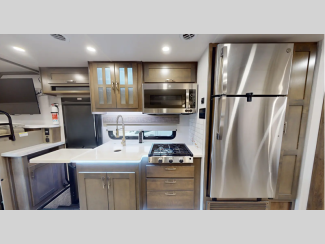

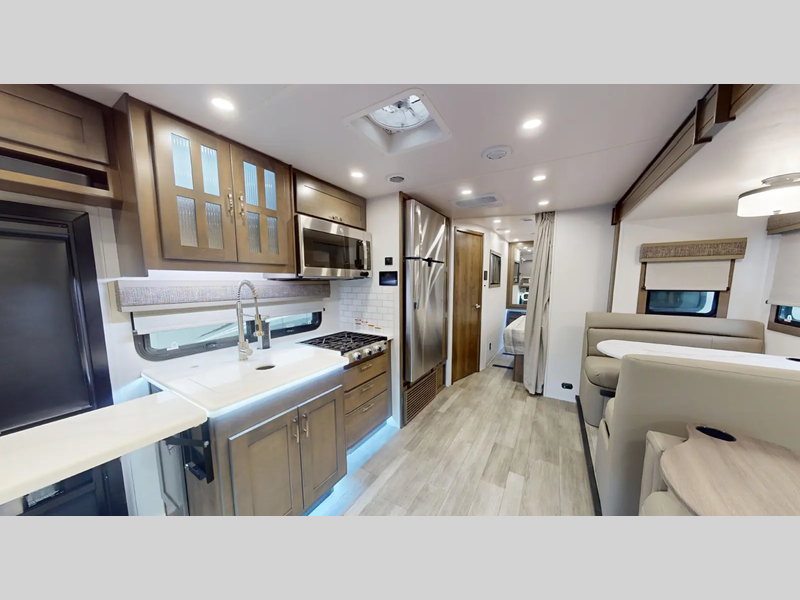

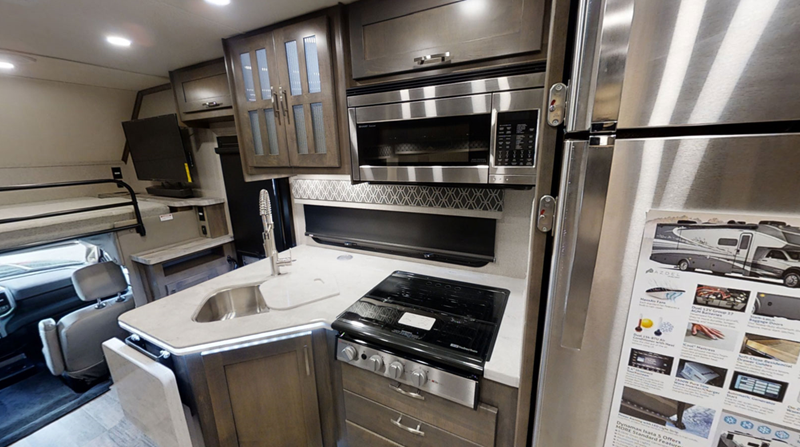

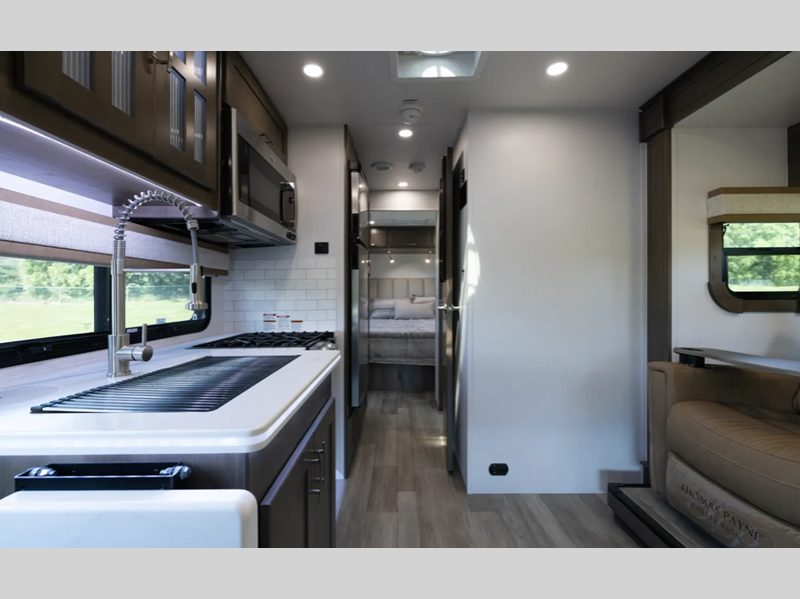

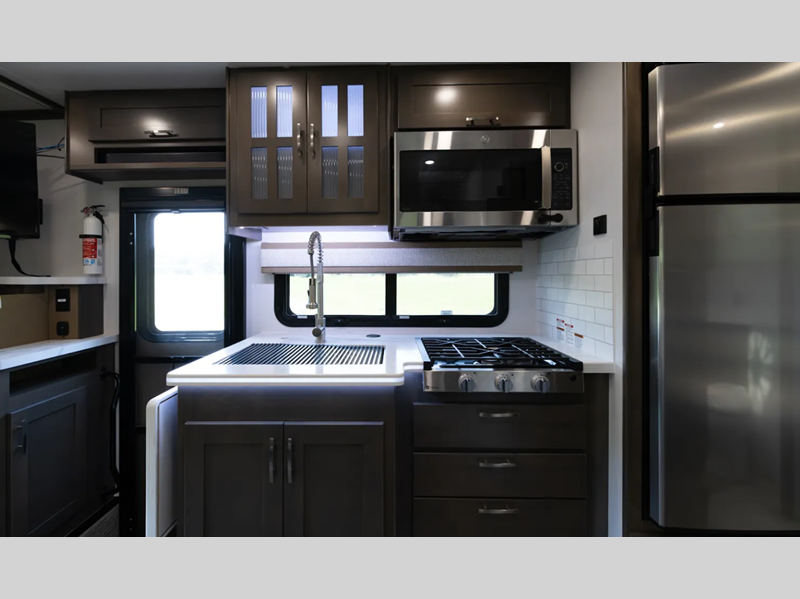

Kitchen

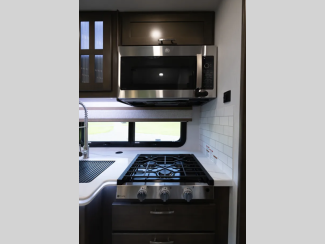

• Gas Range with Glass Cover
• Convection Microwave Oven
• 16 cu. ft. Residential Refrigerator with Ice Maker (Double-Door and Stainless Steel) (N/A 28SS)
• 12V 10 cu. ft. Refrigerator with Ice Maker (28SS Only)
• Solid Surface Countertops with LED Lighting and Backsplash
• Stainless Steel Double-Bowl Sink with Solid Surface Covers

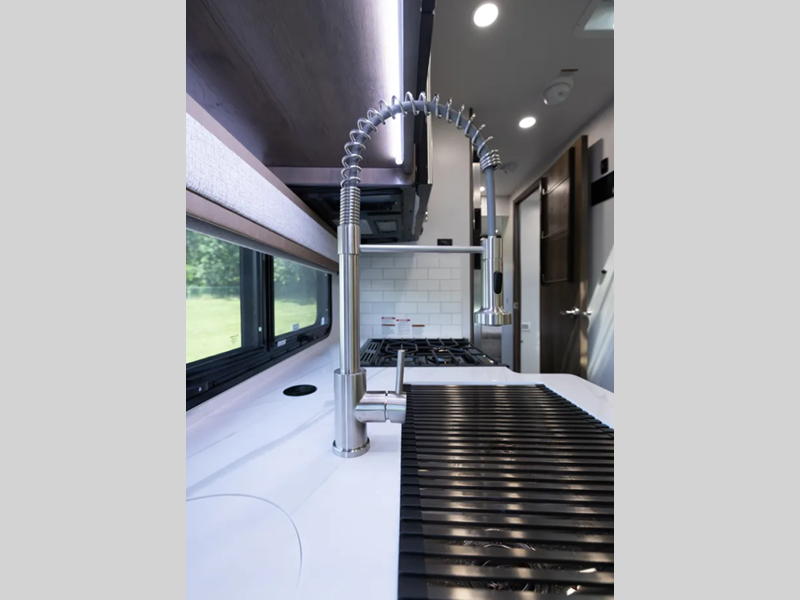

• Residential Stainless Steel Spring Gooseneck Faucet
• Pantry (Floor plan specific)
• Overhead Cabinet Accent Light
• Under-Cabinet Lighting
• Kitchen Trash Can
• MaxxAir® Power Vent with Built-In Rain Cover

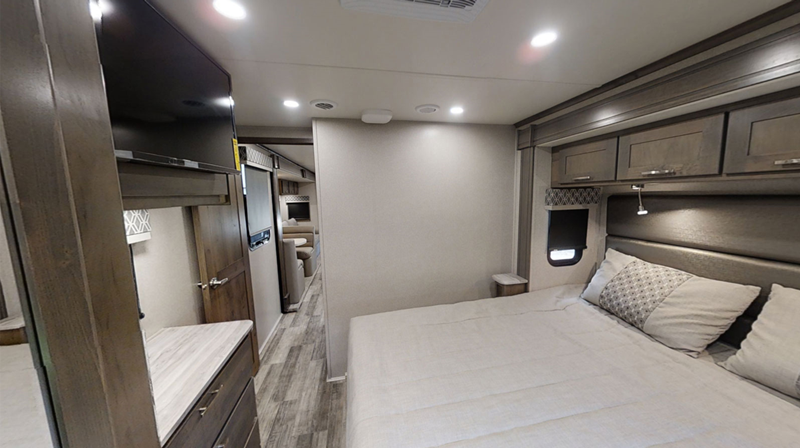

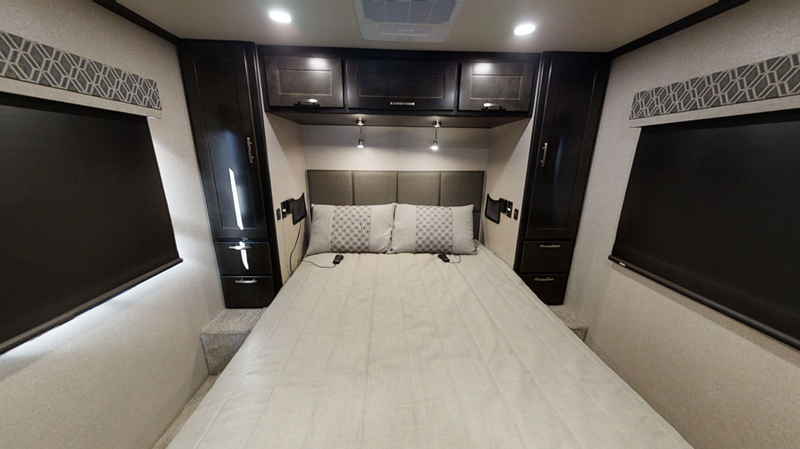

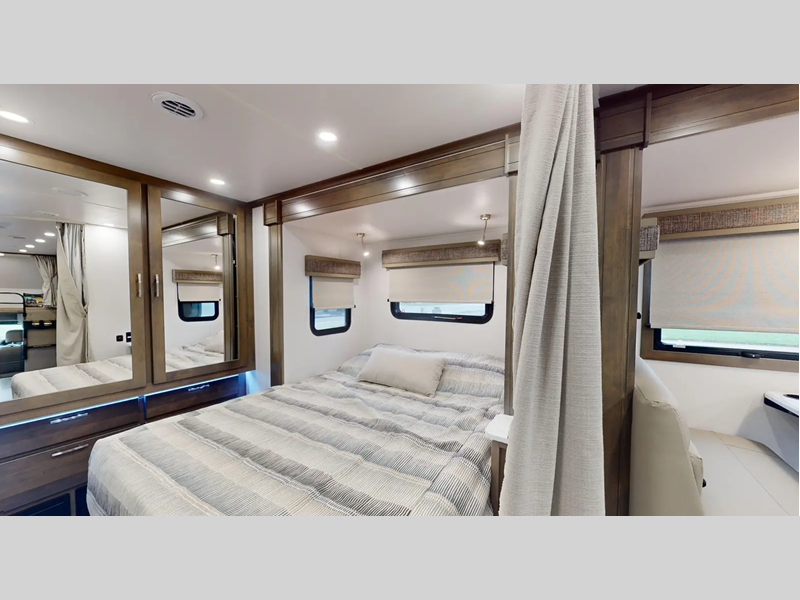

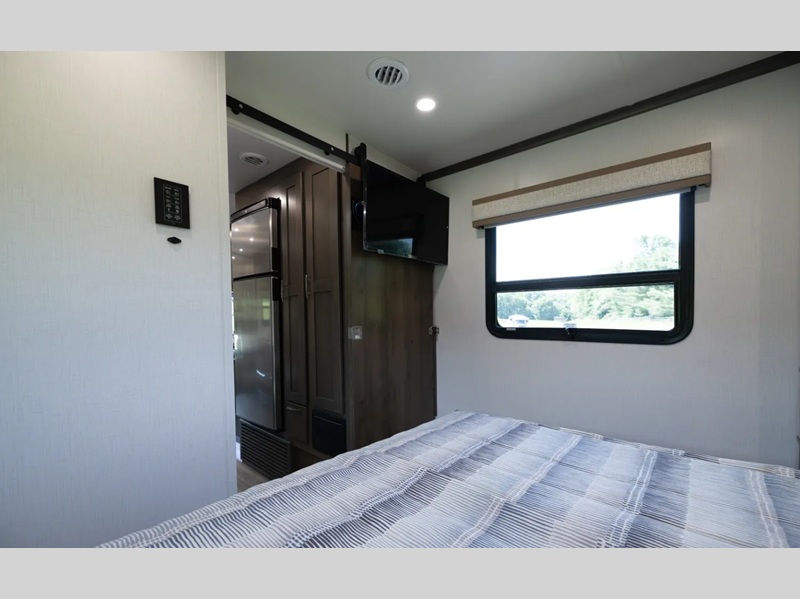

Bedroom or Bunk Area

• King Bed (71” x 78”) with Gel-Infused Memory Foam Mattress (34DS)

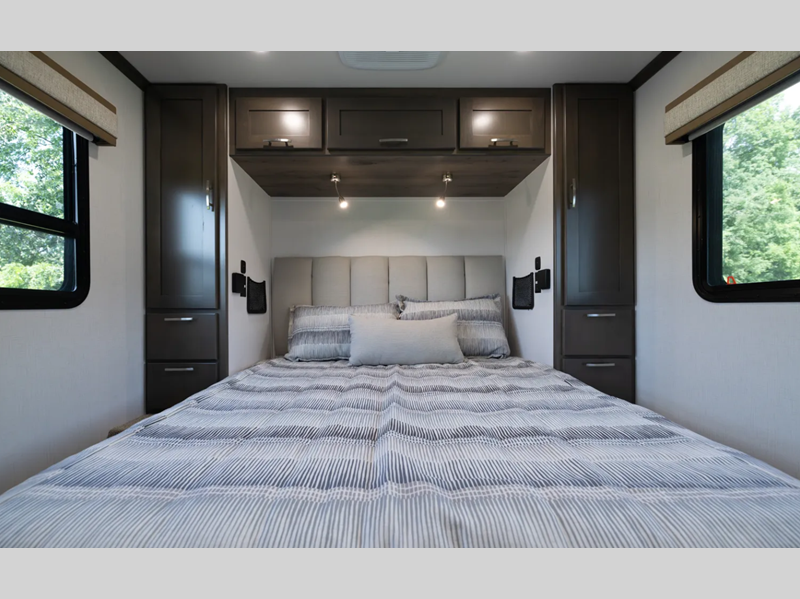

• Queen Bed (60” x 75”) with Gel-Infused Memory Foam Mattress (30FW, 28SS)
• Deluxe Padded Headboard (28SS & 34DS)
• Designer Bedding Package
• 32” LED Smart TV

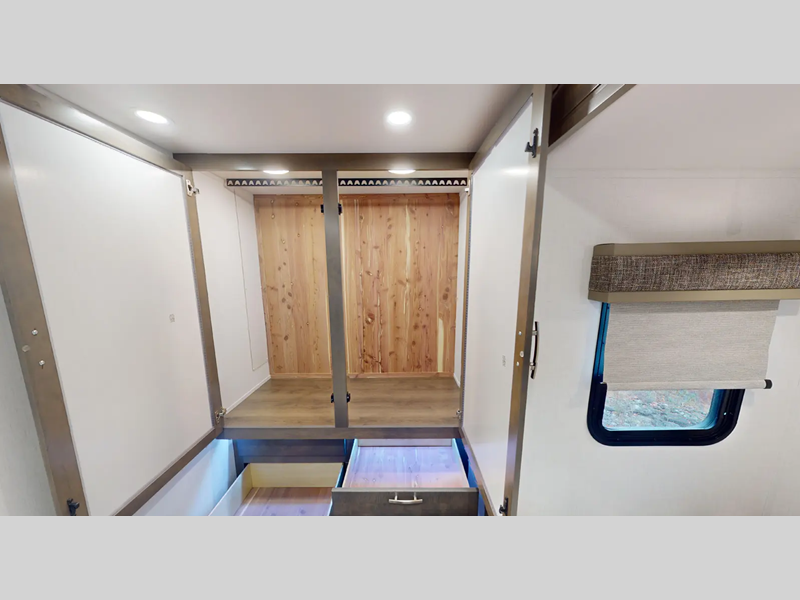

• Cedar-Lined Wardrobe
• LED Reading Lights
• USB Charging Ports

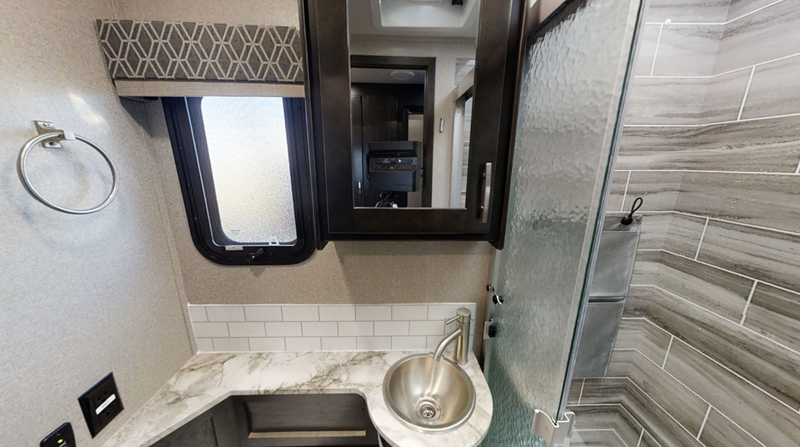

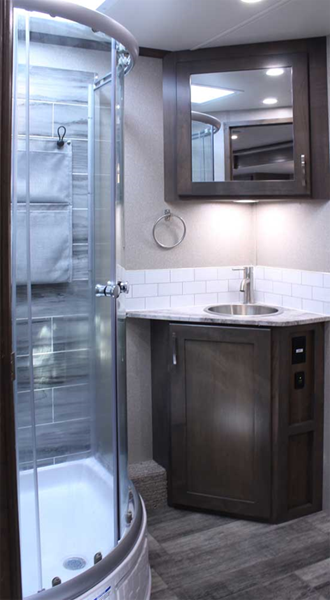

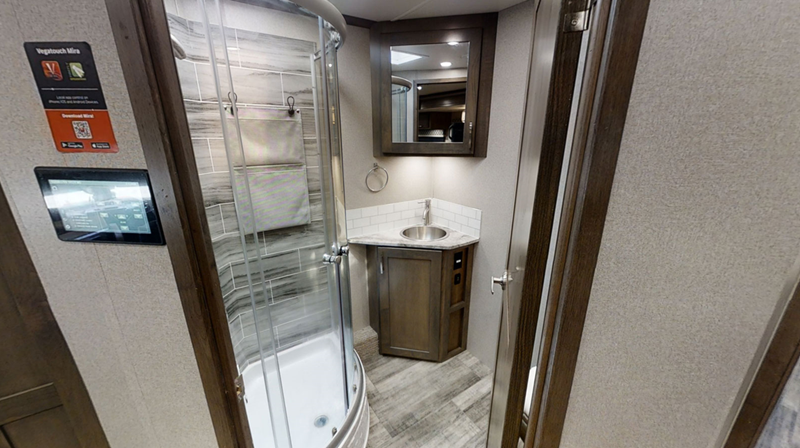

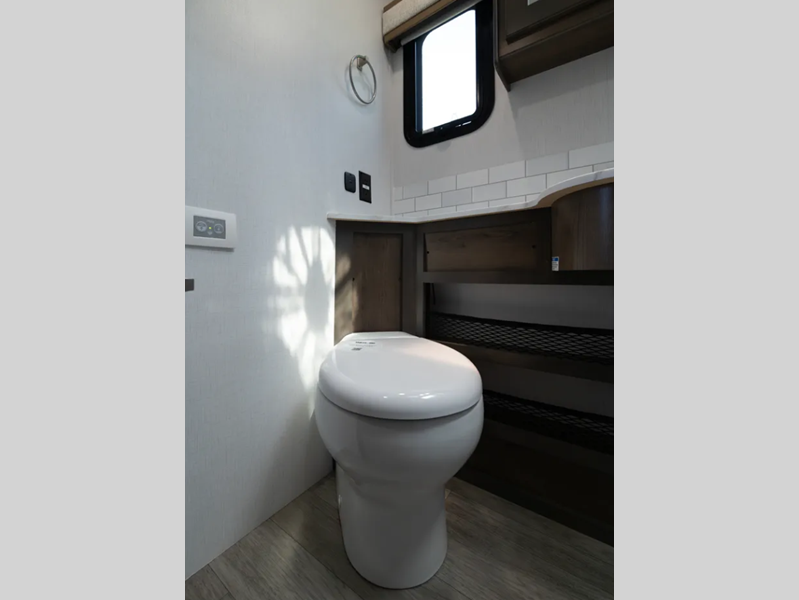

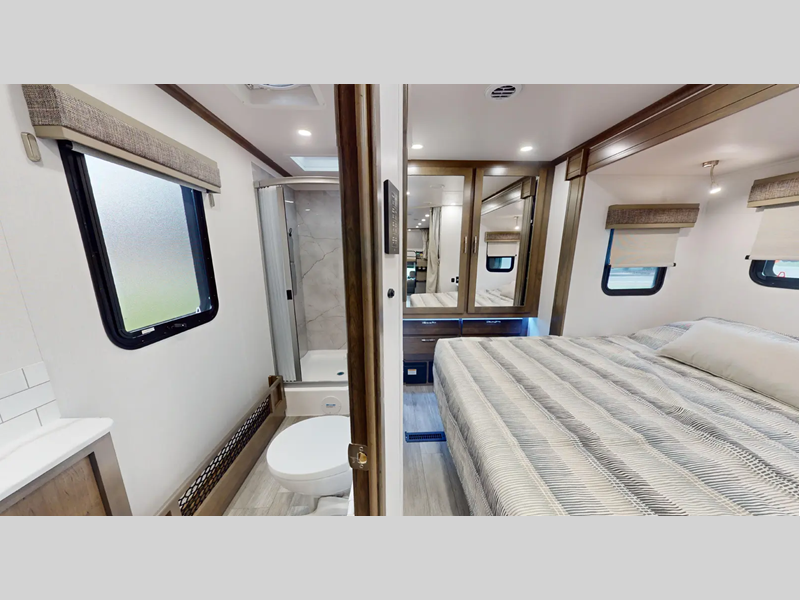

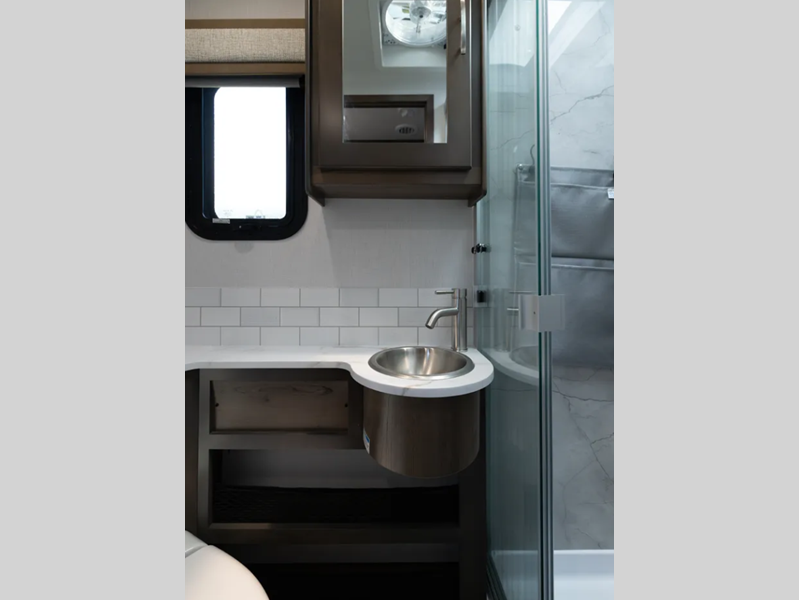

Bathroom

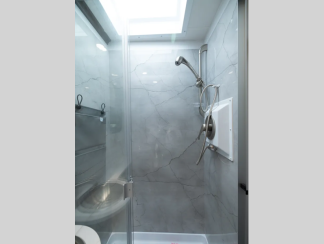

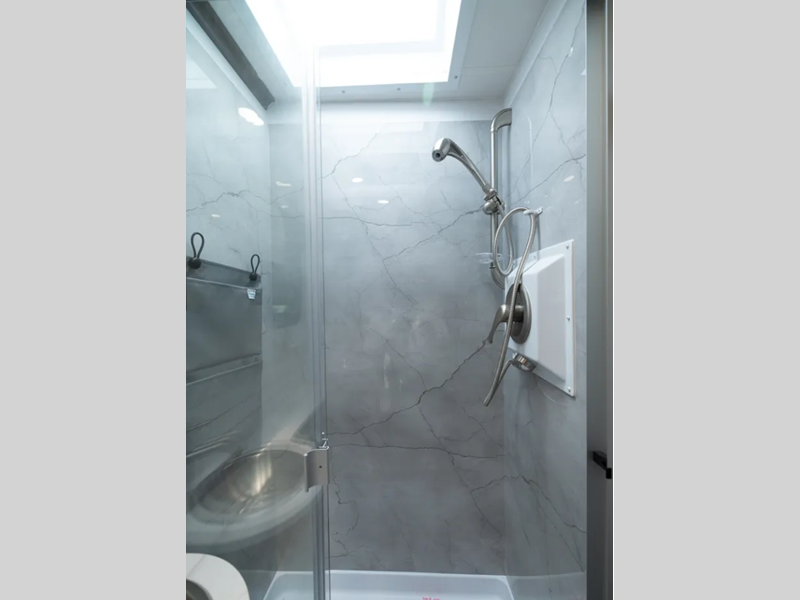

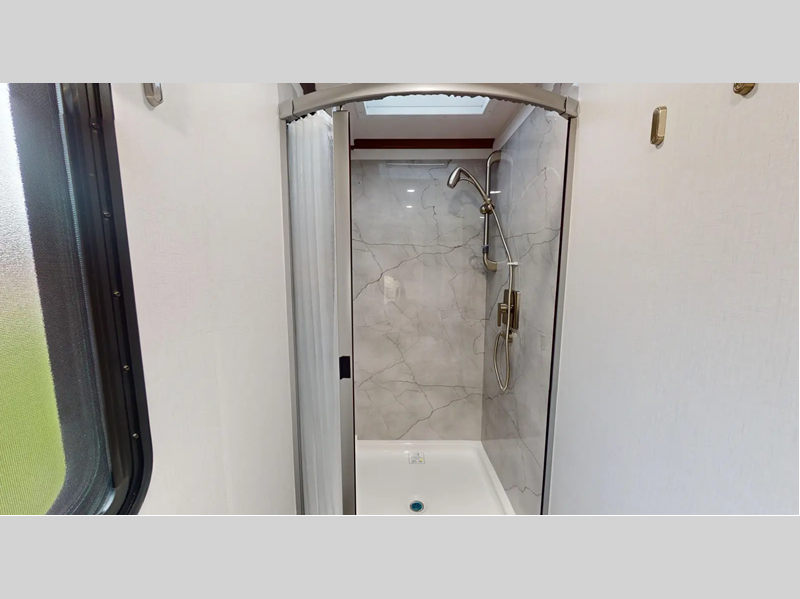

• Designer Shower with Skylight
• Oxygenics Body Spa® RV Shower Head
• Stainless Steel Sink with Residential Faucet
• Porcelain Electronic-Flush Macerator Toilet (N/A – 30FW)
• Porcelain Foot-Flush Toilet (30FW)
• MaxxAir® Power Vent with Built-In Rain Cover

Utilities

• Dual Low-Temp Lithium Auxiliary Batteries (200aH Total)
• Firefly Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
• Battery Disconnect
• 50-Amp Service
• 3,000W Pure Sine Wave Inverter/Charger (3,500 Peak Watts)
• 8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)

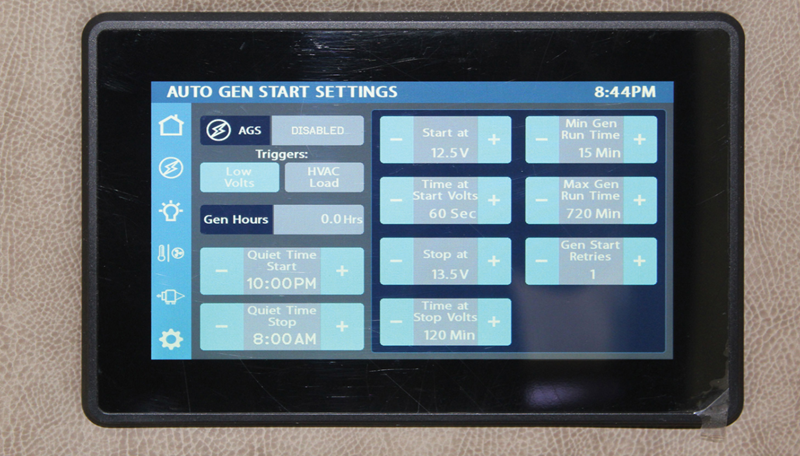

• Automatic Generator Start

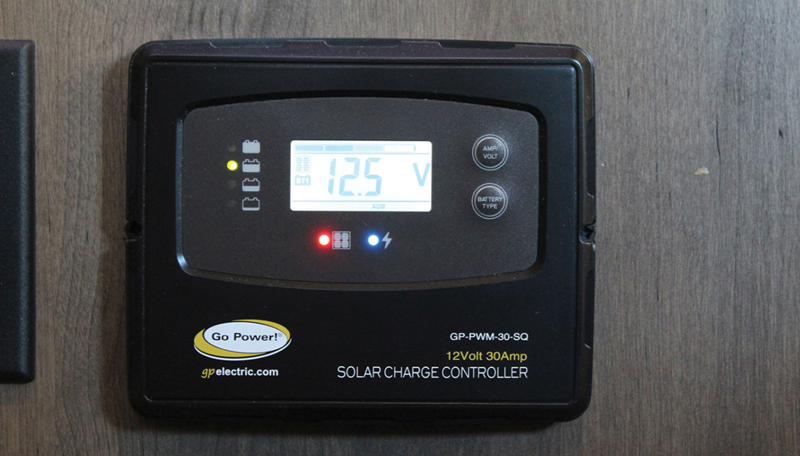

• Solar Panel- Single 190 Watt with 30 Amp Controller
• Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Pump
• 40,000-BTU LP Furnace with Electronic Ignition
• 60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)
• 20.3-Gallon LP Tank (WC)
• LP Quick Connect
• Water Filtration System
• Exterior Shower in Service Bay
• Exterior GFCI Receptacle
• Winegard® AIR 360+ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
• 4x4 HDMI Matrix
• Cable TV/Satellite Hookup in Service Bay
• Black Tank Flush
• SureLevel Tank Level Monitoring System
• Furnace-Heated Utility Compartment
• Enclosed and Furnace-Heated Holding Tanks
• Upgraded 12V On-Demand Water Pump (4 Gallons per minute)
• Carbon-Monoxide, LP, and Smoke Detectors
• Fire Extinguisher

Options

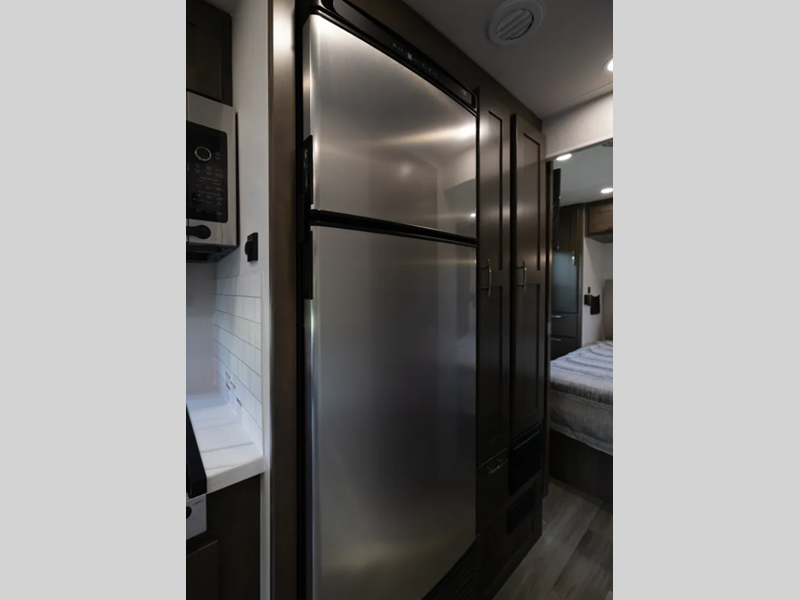

• 12V 10 cu. ft. 2-Door Compressor-Driven Refrigerator in place of Standard Refrigerator (30FW, 34DS)

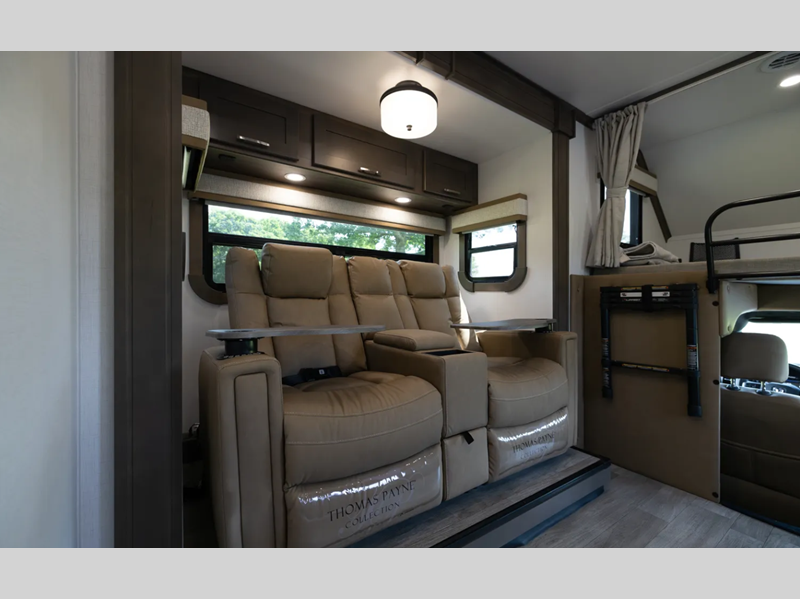

• Dual, Power Reclining Theater Seats in place of Dinette (28SS Only)
• Dual, Power Reclining Theater Seats in place of Sofa (30FW, 34DS)
• Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)

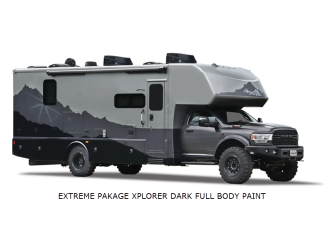

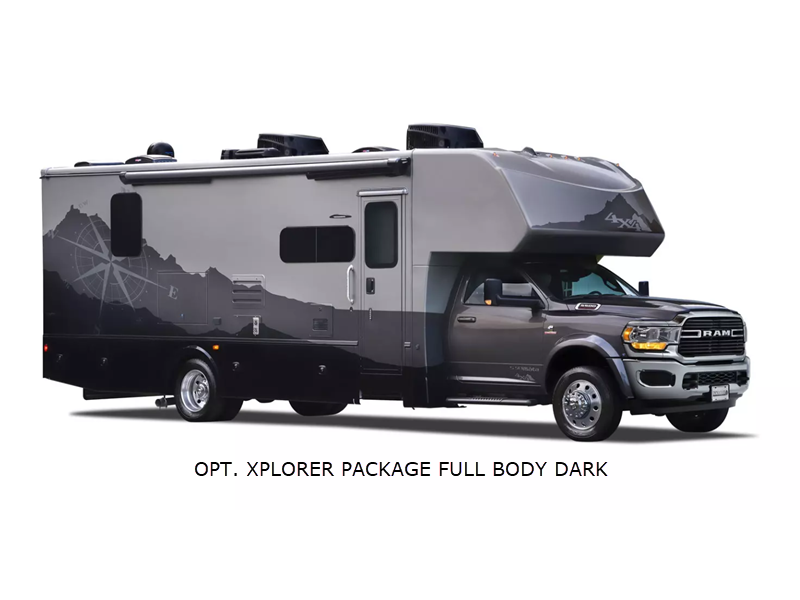

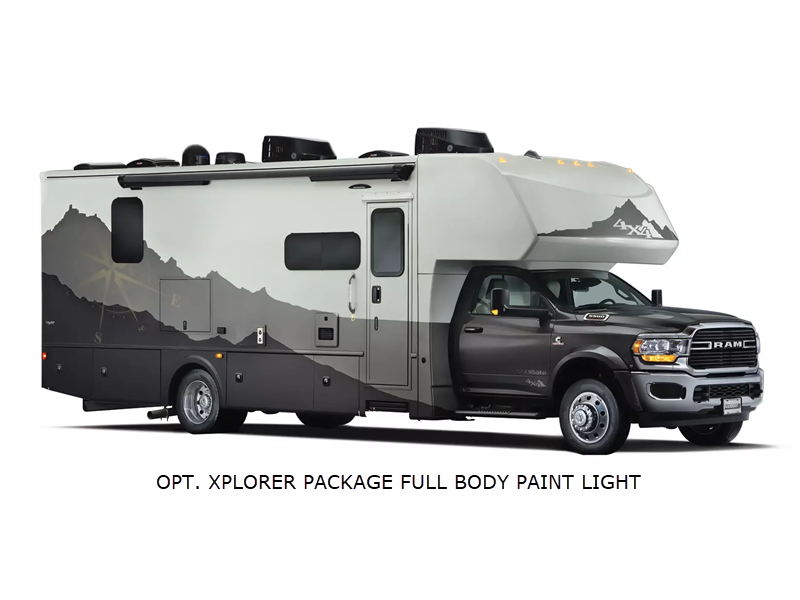

• Xplorer Package - includes Dual-Pane, Dark-Tinted Frameless Windows; Insulated Cab Curtain; Four Lithium House Batteries (400aH Total); 950W Solar Package; & Insulated Utility Bay with Secondary Tank Heater and Temperature Sensor (N/A 34DS)

Please see us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
