New 2024 isata 5 30FW Motor Home Super C - Diesel

* The images displayed may represent all isata 5 models

Shop isata 5 30FW For Sale

Previous Inventory Unit
Next Inventory Unit

isata 5 30FW Description

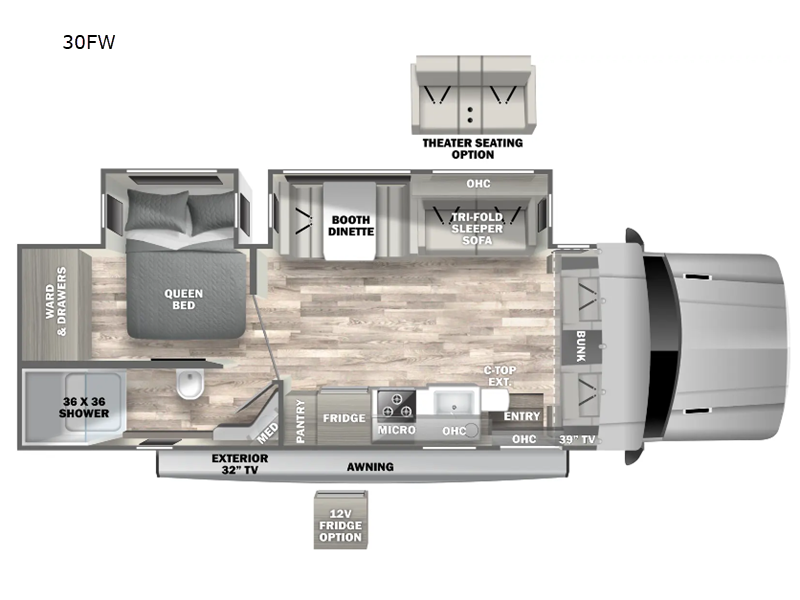

Dynamax isata 5 Super C diesel motorhome 30FW highlights:

  • Private Bedroom
  • Bunk Over Cab
  • Sofa
  • Rear Corner Bathroom
  • Exterior 32" TV

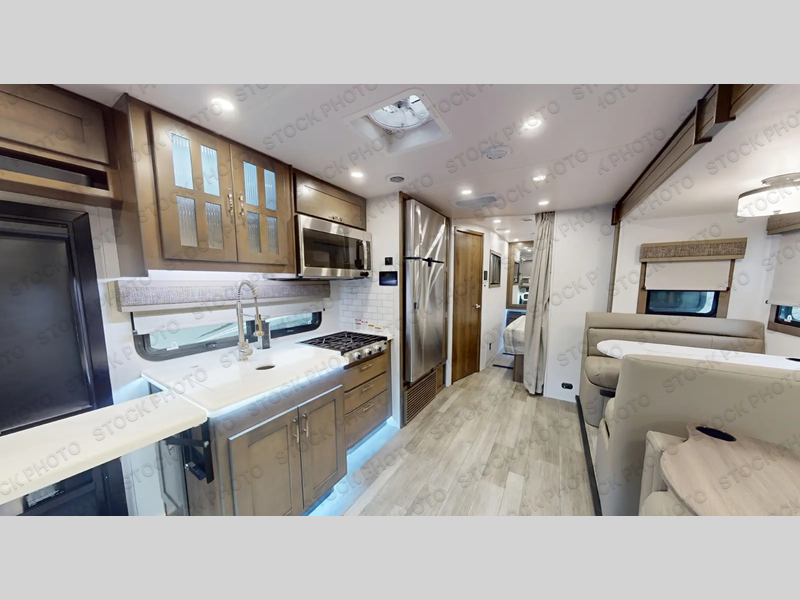

You will have plenty of space to walk about this motorhome with the dual slides! The booth dinette and sofa slide create an open concept living area and the sofa can be replaced for the optional theater seating if you prefer that instead. Freshen up after a long day of traveling in the rear corner bathroom with the designer shower that has a skylight above for more natural lighting and an Oxygenics body spa RV shower head for a more relaxing shower. Put on your comfy clothes stored in the wardrobe in the rear corner private bedroom then either lay on the 60" x 75" gel-infused memory foam mattress while you watch a movie on the 32" LED smart TV or head to the kitchen and whip up a meal with the three burner gas range and countertop extension. You could even head outside and watch a movie on the exterior 32" TV underneath the 16' dual-pitch armless awning!

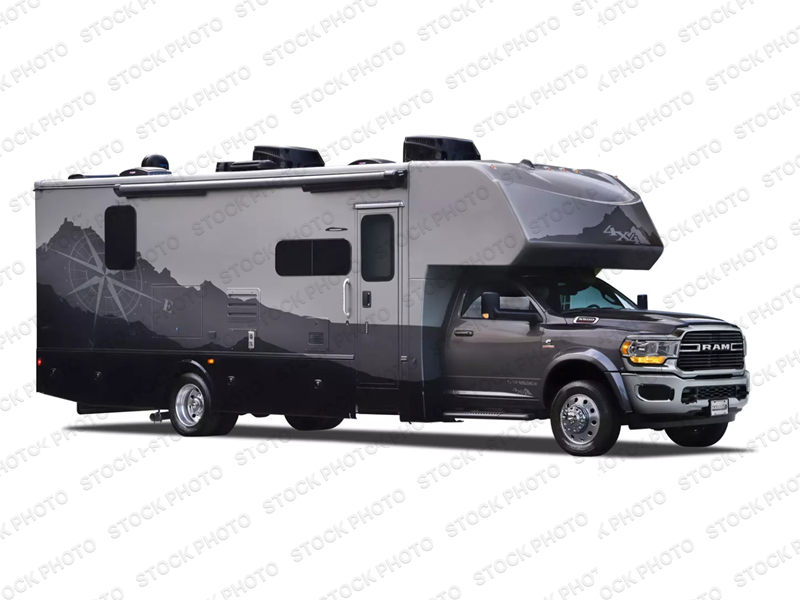

Each one of these Dynamax isata 5 Super C diesel motorhomes offer control, comfort, and stability thanks to the Ram 5500 SLT chassis with factory 4-wheel drive! They are powered by a Cummins 6.7L I6 turbo diesel engine and an AISIN HD 6-speed automatic transmission. Their construction consists of 2" aluminum-framed, laminated sidewalls with block foam insulation, composite exterior fiberglass, and a composite flooring substrate that is lightweight and moisture resistant. You will see their attention to detail everywhere you look including ambient lighting, premium cut and buffed paint finish, and a water filtration system for clean water where ever you go. They even have a single 190 watt solar panel with a 30 amp controller so you can go off the grid. Come check out your favorite model today!

isata 5 30FW Specifications

Sleeps 6
Slides 2
Length 33 ft 3 in
Ext Width 8 ft
Ext Height 12 ft 4 in
Int Height 6 ft 10 in
Interior Color Crescent, Milano
Exterior Color Admiral Blue, Granite, Khaki, Magnetic, Merlot,
Hitch Weight 10000 lbs
GVWR 19500 lbs
Fresh Water Capacity 78 gals
Grey Water Capacity 45 gals
Black Water Capacity 45 gals
Tire Size 225/70R19.5G
Furnace BTU 42000 btu
Generator 8KW Onan Diesel
Fuel Type Diesel
Engine Cummins 6.7L I6 Turbo
Chassis Ram 5500 SLT
Horsepower 360 hp
Fuel Capacity 52 gals
Wheelbase 238 in
Number Of Bunks 1
Available Beds RV Queen
Torque 800 ft-lb
Refrigerator Type Residential Stainless Steel with Ice Maker
Refrigerator Size 16 cu ft
Convection Cooking Yes
Cooktop Burners 3
Number of Awnings 1
Axle Weight Front 7250 lbs
Axle Weight Rear 13500 lbs
LP Tank Capacity 86 lb
Water Heater Type Truma Aqua Go Comfort On Demand
AC BTU 30000 btu
TV Info LR 39" LED Smart TV, BR 32" LED Smart TV, Ext. 32" LED Smart TV
Awning Info 16' Dual-Pitch Armless with LED Lighting
Gross Combined Weight 37500 lbs
Shower Type Standard
Electrical Service 50 amp
