New 2026 Newmar Bay Star 3609 Motor Home Class A

In Stock

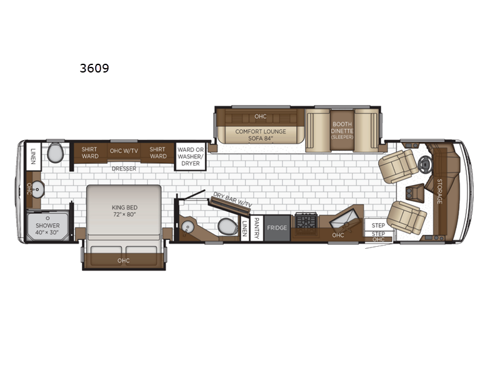

2026 3609 Features and Options

Newmar Bay Star Class A gas motorhome 3609 highlights:

  • Double Slides
  • Dry Bar with a TV
  • Bath and a Half
  • Dual Shirt Wardrobes in Bedroom
  • Booth Dinette/Sleeper



You'll love every minute spent in this spacious coach! Once you park for the day, you can start lunch on the the three burner cooktop or in the convection microwave, and there is a 10 cu. ft. Norcold refrigerator where you can grab a cold drink. There is a comfort lounge sofa and booth dinette/sleeper for comfy seating spaces, and your guests can sleep here at night. An optional drop-down bunk above the cockpit can be added if you're needing additional sleeping space. Head to the master bedroom where you'll find a king bed slide out, dual shirt wardrobes and a dresser to keep your clothes organized. The full rear bath will let you freshen up in privacy, and the mid-coach half bath will be easily accessible for everyone to use!



Each Bay Star Class A gas motorhome by Newmar delivers a smooth ride thanks to the standard electronic stability control, along with the 7.3-liter V8 engine with 335 HP and 468 lb./ft. of torque. The exterior is sure to turn heads with its full-paint Masterpiece Finish and new graphics packages, plus you'll have three interior decor choices and three wood choices to truly make the coach your own. Each model includes Williamsburg furniture, woven material in the slide outs, luxurious vinyl plank flooring, polished solid surface countertops in the kitchen, plus many more comforts. Head outside to find lights in the storage compartments, a 5.5kW Cummins Onan generator with remote switch, and hydraulic leveling jacks with a Bluetooth compatible touch pad for set up easy as 1-2-3! You can further customize your coach with the many options that are offered!

What Our Customers Are Saying

Referred me to great service!

Although they couldn’t help with the repair of my specific problem, they were willing to take the time to help me locate another dealer/repair shop in town who could. - Joseph
Price: $300,441
Blue Compass RV
Location: San Marcos CA
Stock# M126930
To get help now on this RV, call and enter the RV ID if prompted.
RV ID: 3136757#
(enter this ID if prompted)
2026 3609 Specifications
Sleeps 5
Slides 2
Length 36 ft 11 in
Ext Width 8 ft 6 in
Ext Height 12 ft 10 in
Int Height 7 ft
Hitch Weight 5000 lbs
GVWR 26000 lbs
Dry Weight 22700 lbs
Cargo Capacity 3300 lbs
Fresh Water Capacity 75 gals
Grey Water Capacity 60 gals
Black Water Capacity 40 gals
Furnace BTU 35000 btu
Fuel Type Gas
Engine 7.3L V8
Chassis Ford F-53
Horsepower 335 hp
Fuel Capacity 80 gals
Wheelbase 242 in
Available Beds King
Torque 468 ft-lb
Refrigerator Type Norcold
Refrigerator Size 10 cu ft
Convection Cooking Yes
Cooktop Burners 3
Shower Size 40" x 30"
Number of Awnings 1
Axle Weight Front 9000 lbs
Axle Weight Rear 17500 lbs
LP Tank Capacity 25 gals
Water Heater Capacity 6 gal
Water Heater Type Gas/Electric
AC BTU 27000 btu
TV Info LR Samsung LED, BR Samsung LED
Awning Info Carefree Travel'r Power Side Awning w/Strip Lighting
Washer/Dryer Available Yes
Gross Combined Weight 30000 lbs
Shower Type Standard
Electrical Service 50 amp
VIN 1F66F5DN6S0A01610
For more information Contact Us

Bay Star 3609 Reviews

Be the first to tell other RVers what you think about this RV  Write a Review
