New 2026 MOAB Juggernaut Motor Home Class C

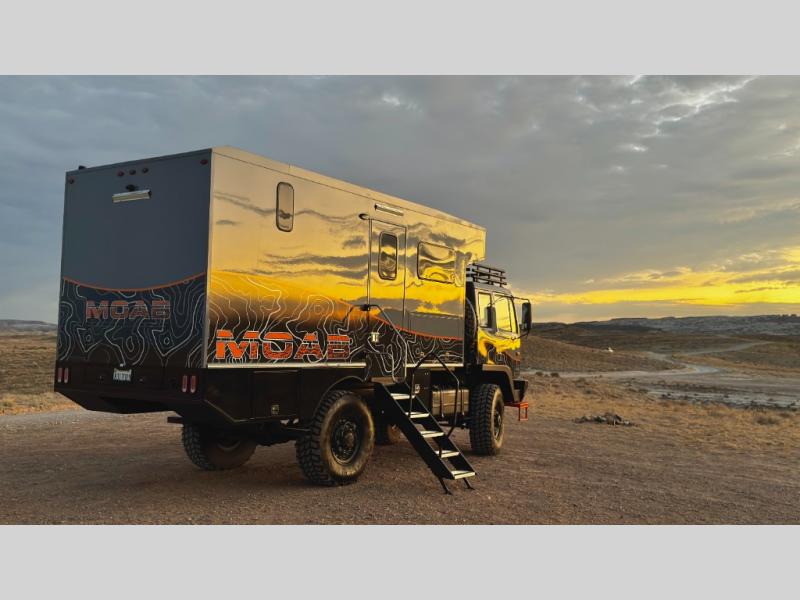

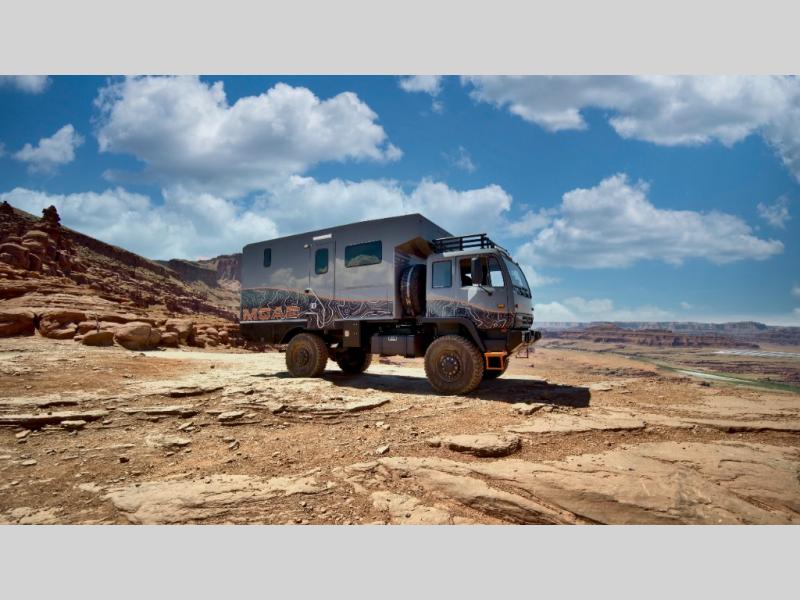

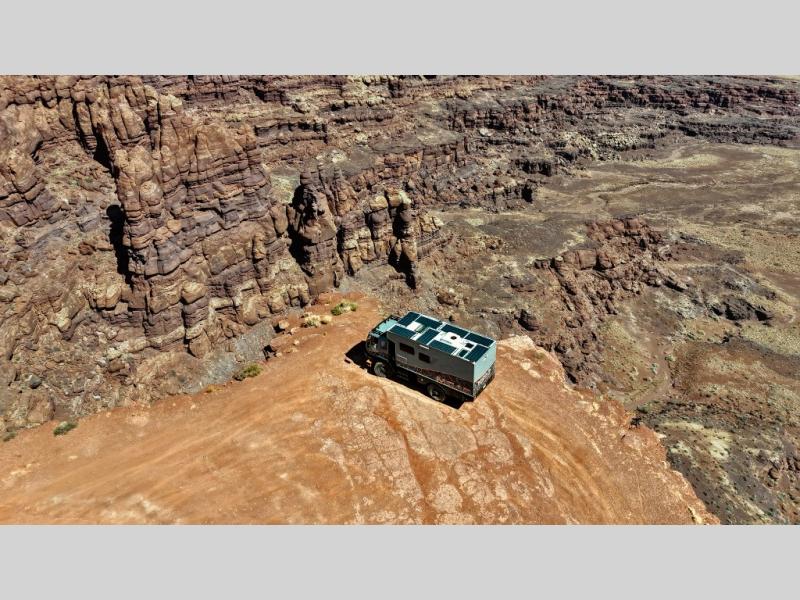

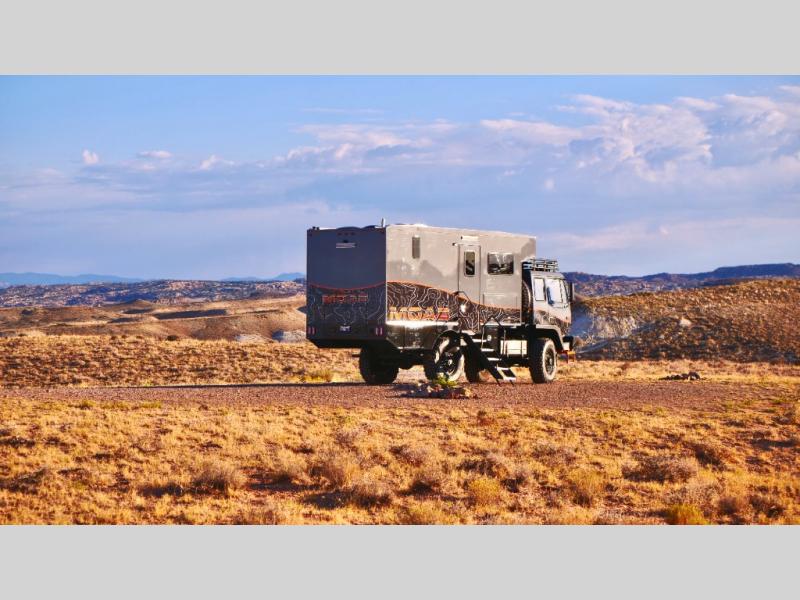

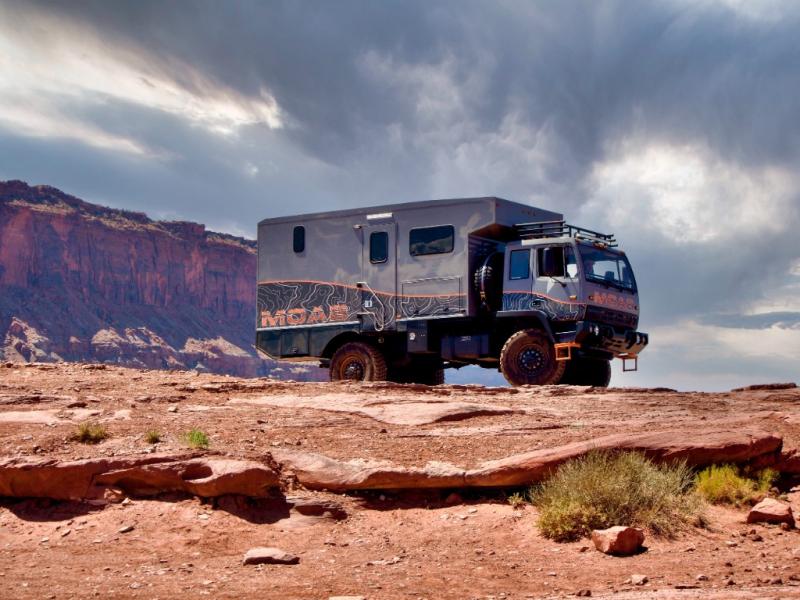

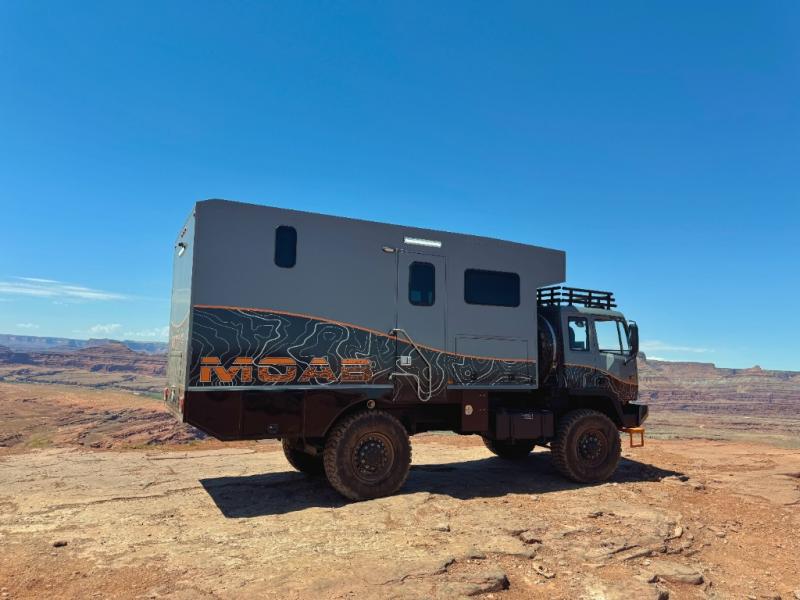

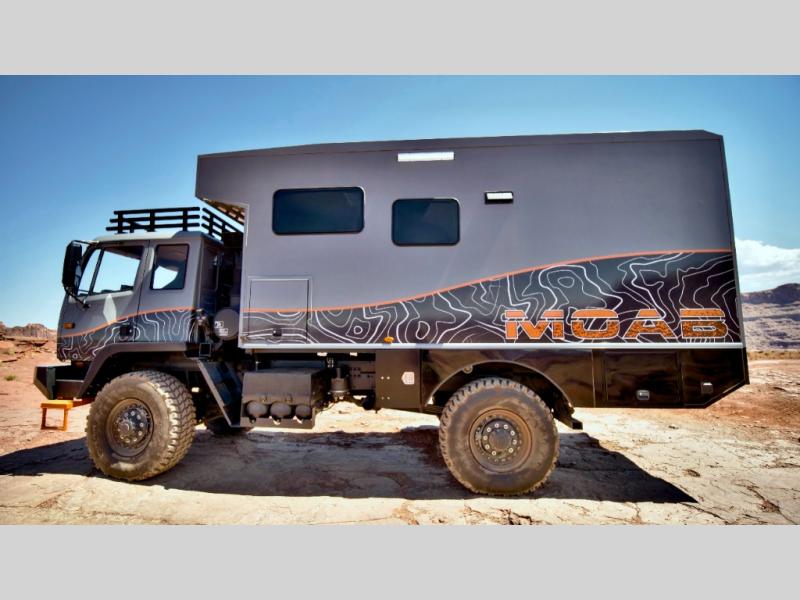

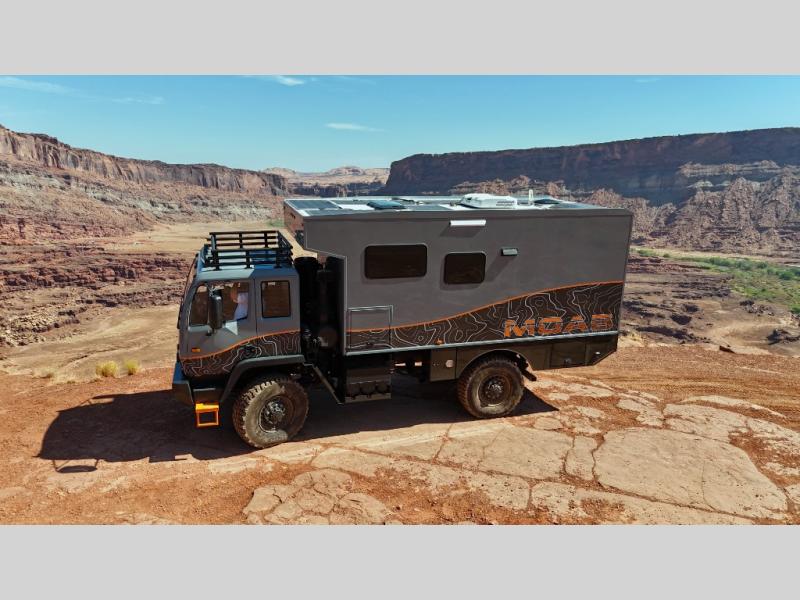

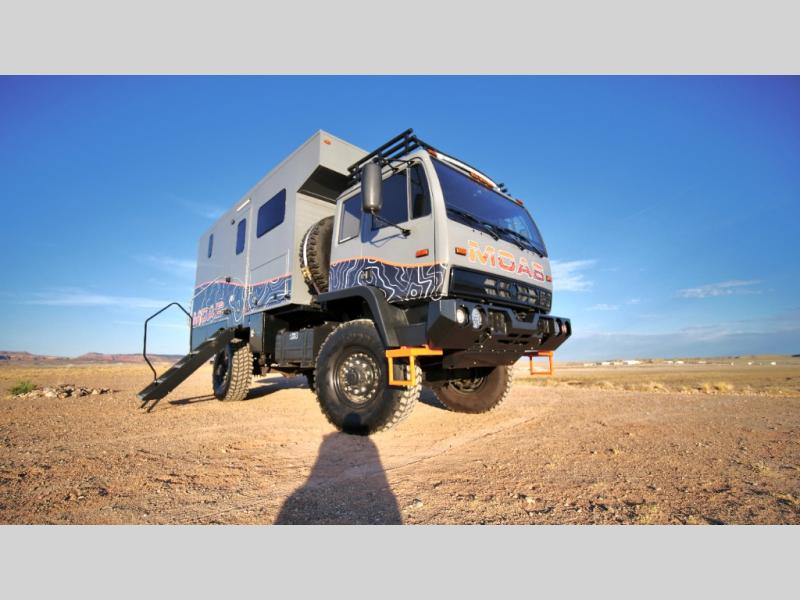

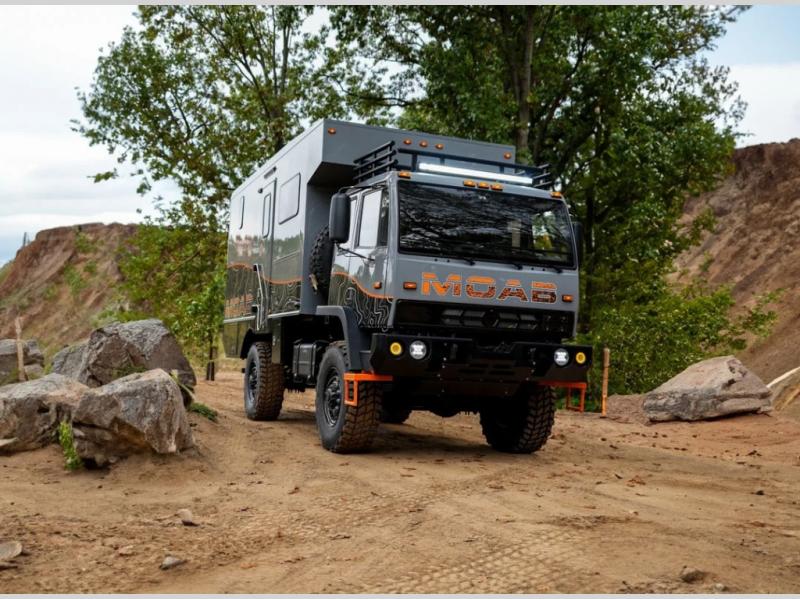

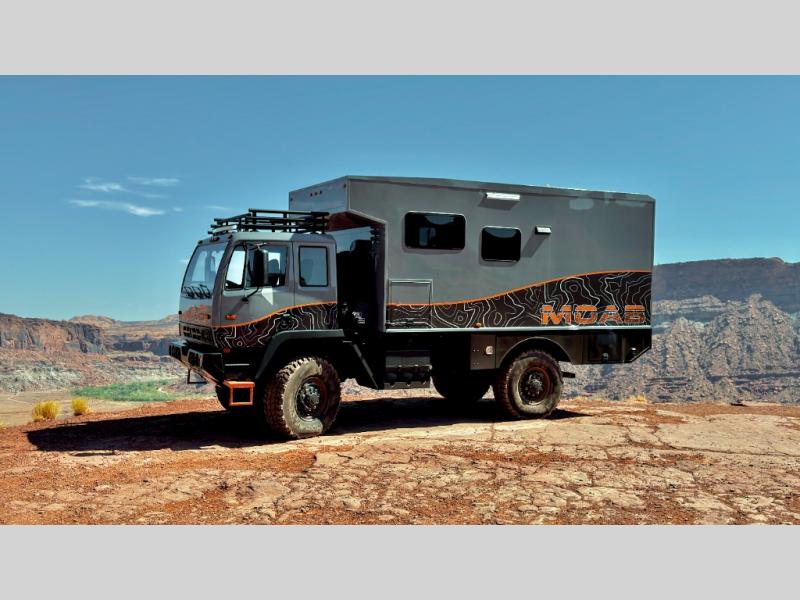

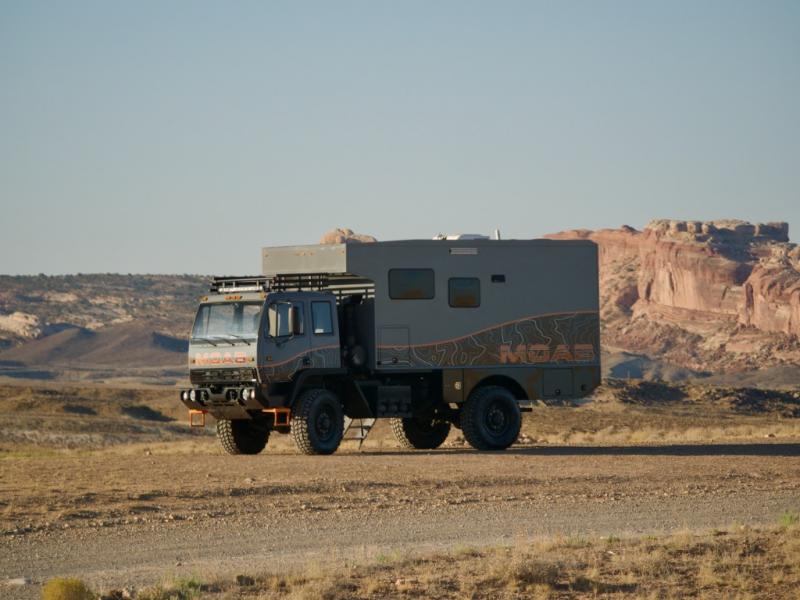

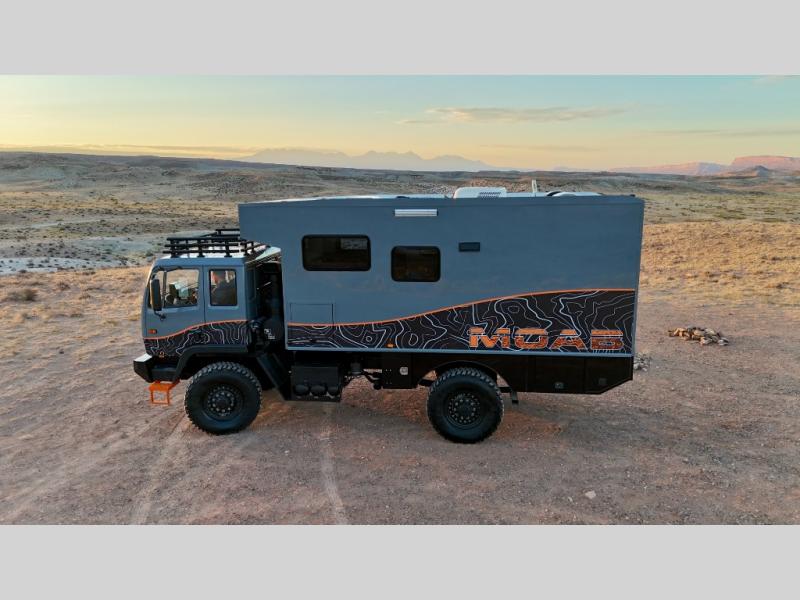

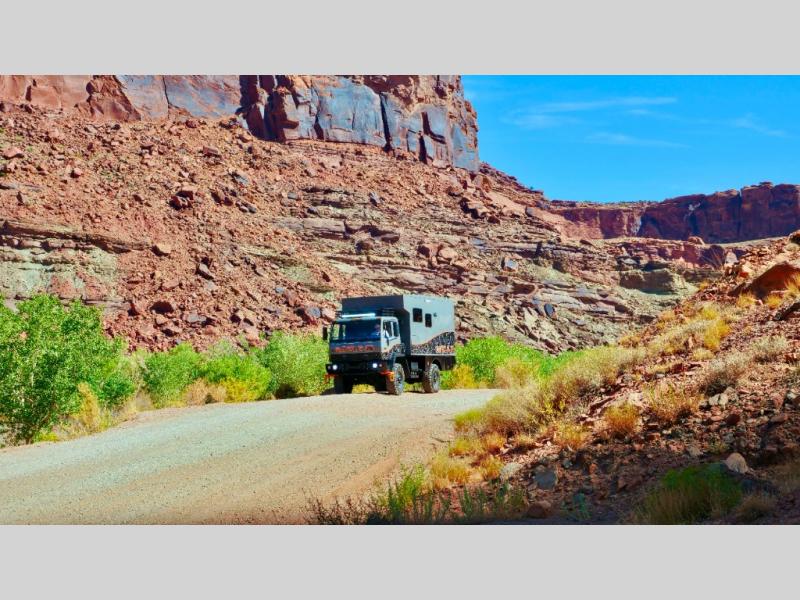

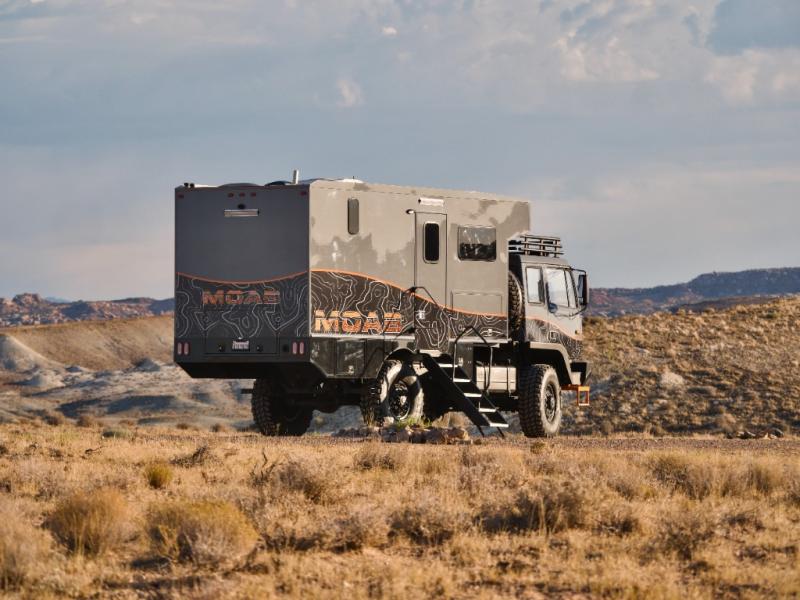

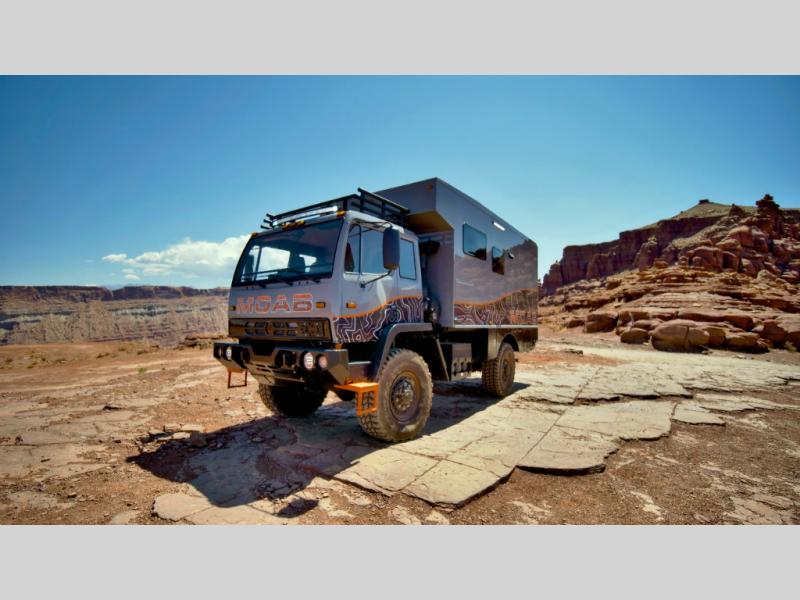

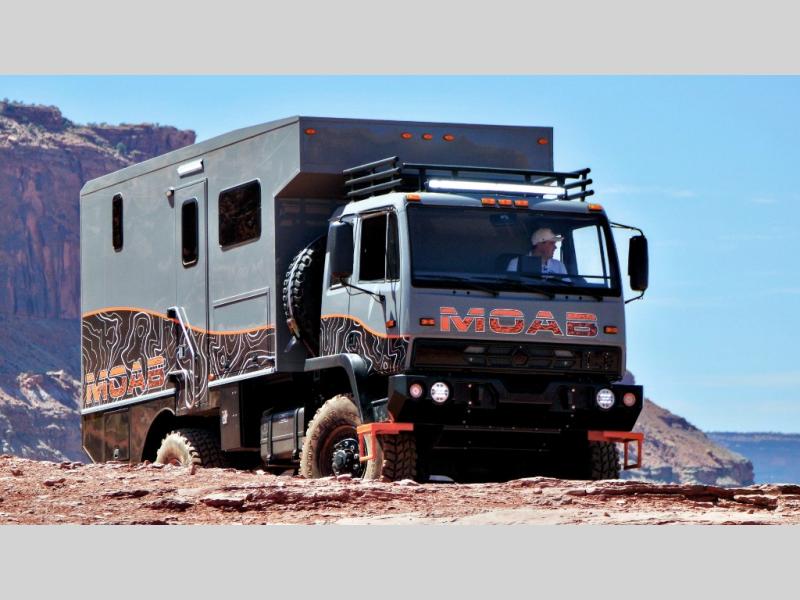

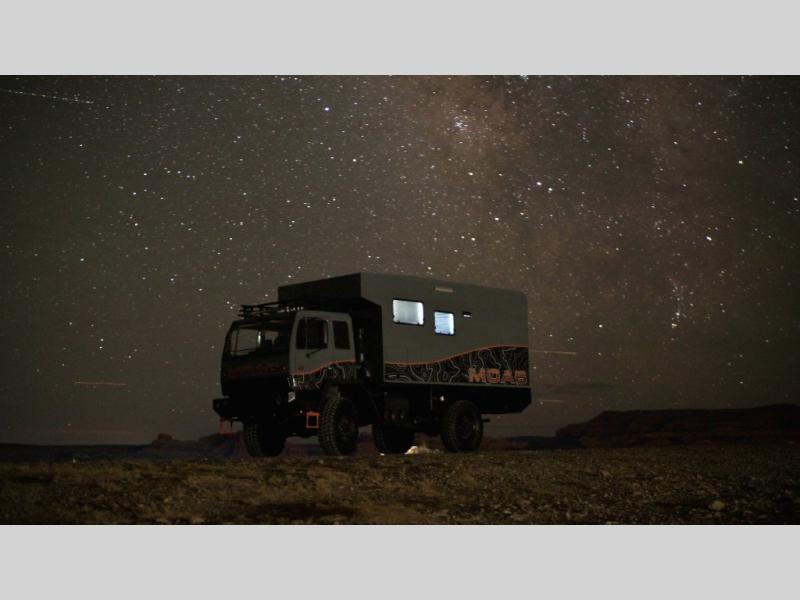

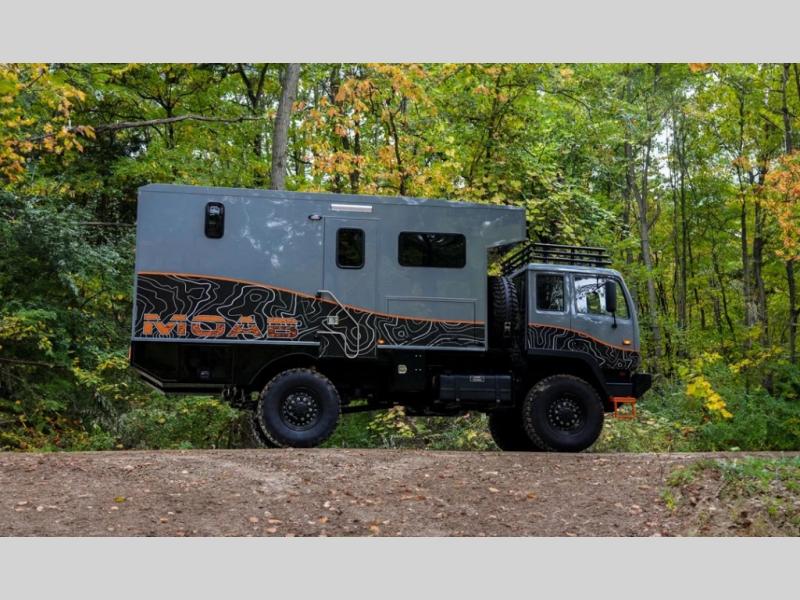

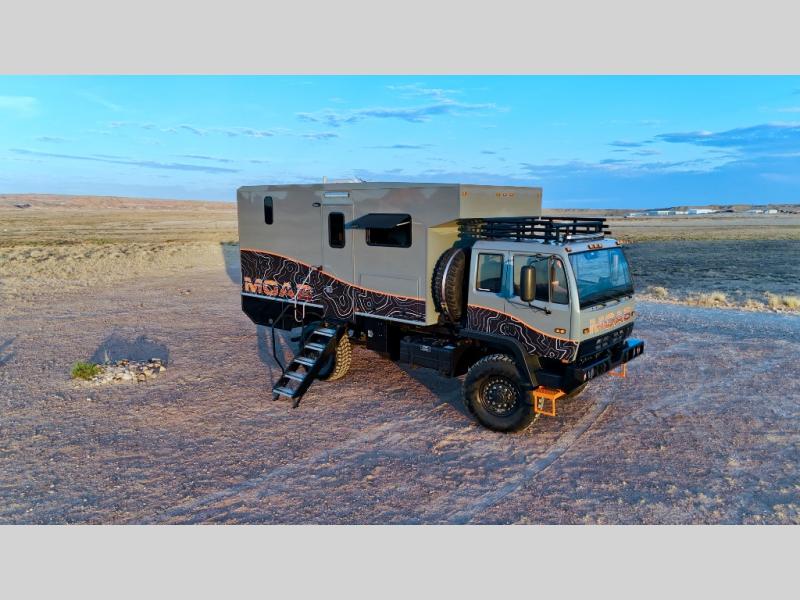

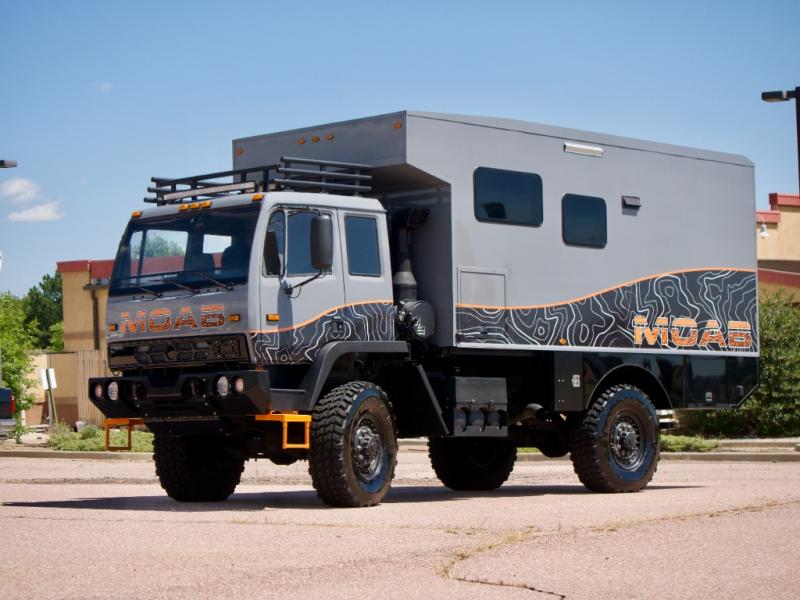

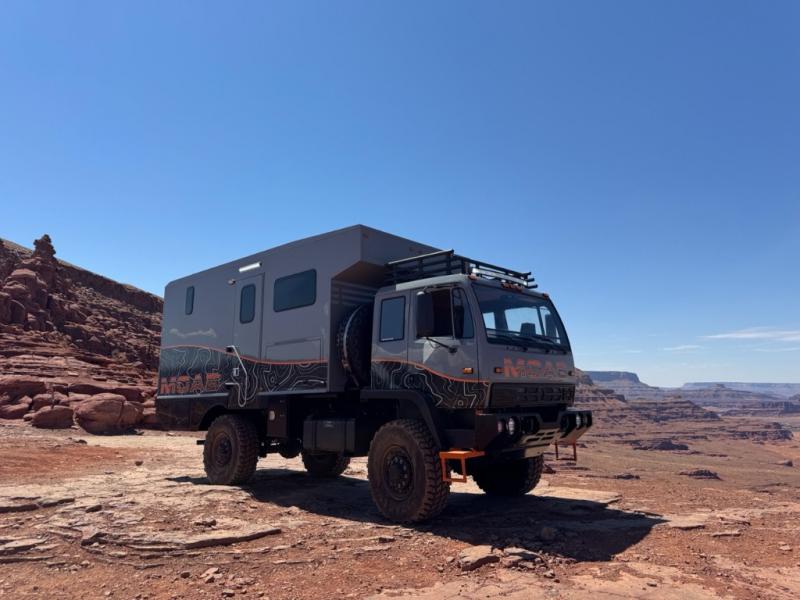

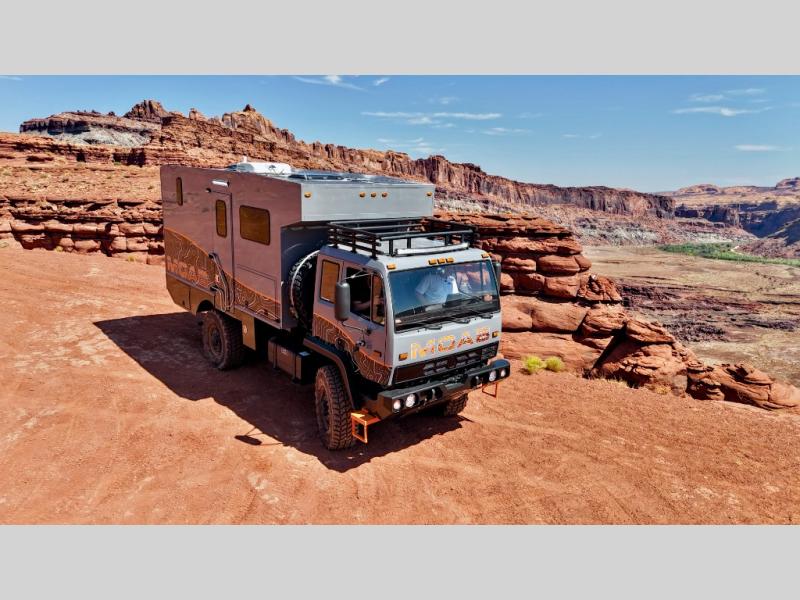

The MOAB Juggernaut is a true extreme off-road, off-grid motorhome, built on the ACELA Monterra 4x4 military-grade chassis with full-time AWD, 22" of ground clearance, and 46" Goodyear MV/T super singles with CTIS. Power comes from a 330HP Caterpillar 7.2L turbo-diesel paired to an Allison 7-speed automatic, with air-ride seating, ABS with a driver-controlled exhaust “Jake” brake, and multi-angle cameras for confident maneuvering. A self-supporting, welded and huck-fastened habitat rides on a floating platform so the box stays composed as the chassis articulates, and the shell can be unbolted from the frame for major service. Off-grid capability is anchored by a class-leading 48V electrical system (6,000W inverter, ~17kWh Lithionics storage, 1.5kW solar) and 150 gallons of heated fresh water, enabling extended stays without a generator. At 25’3” long, 12’8” tall (with A/C), 97" wide, and with 81.5" of interior headroom and a 32,000-lb GVWR, the Juggernaut blends expedition toughness with residential comfort.- 330HP Caterpillar 7.2L turbocharged diesel engine

• CHASSIS: ACELA Monterra 4x4 Extreme-Duty Class 6-7 Cab & Chassis

- Allison automatic 7-speed transmission

- Top speed: 74 MPH

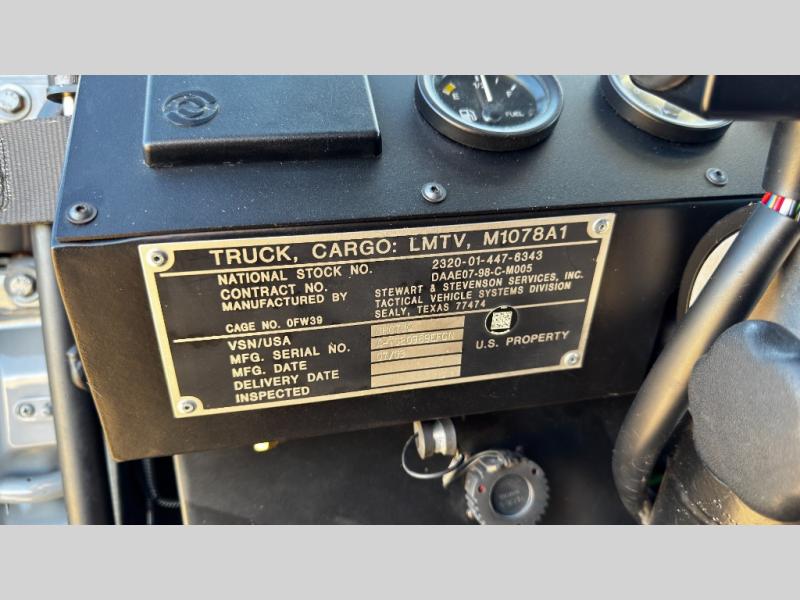

- Former military vehicle with a U.S. Army “Ultra-Reliable” certificate

- 22” ground clearance

- Air-ride seating

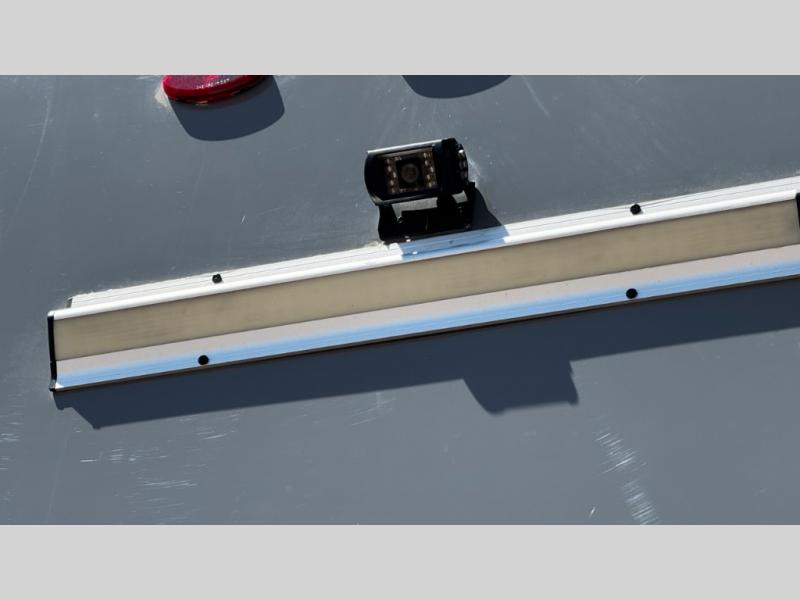

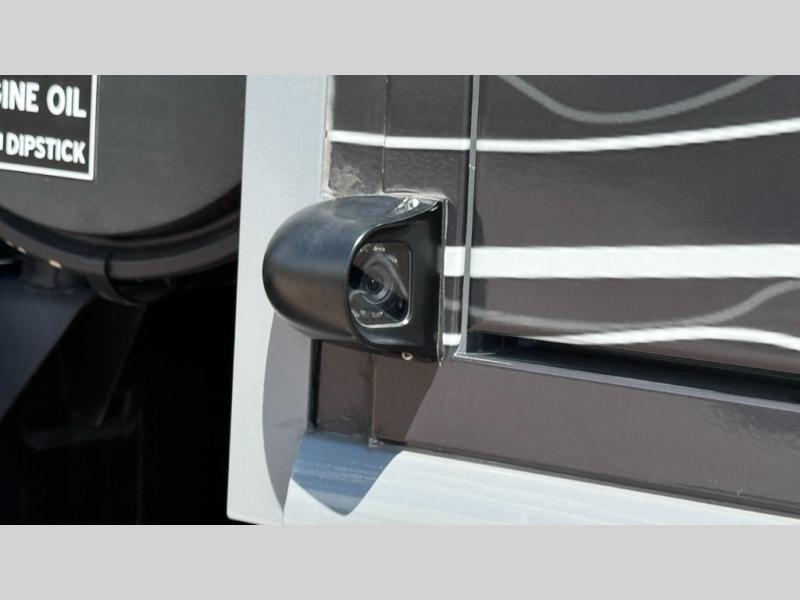

- Backup, left, and right turn cameras on a 7” screen

- Dash-mounted stereo (AM/FM/DVD) with a 6.2” touchscreen

- Central tire inflation system (CTIS)

- Dash switches for lighting controls

- 58-gallon fuel tank with an approximate 400+ mile range

- Power steering assist

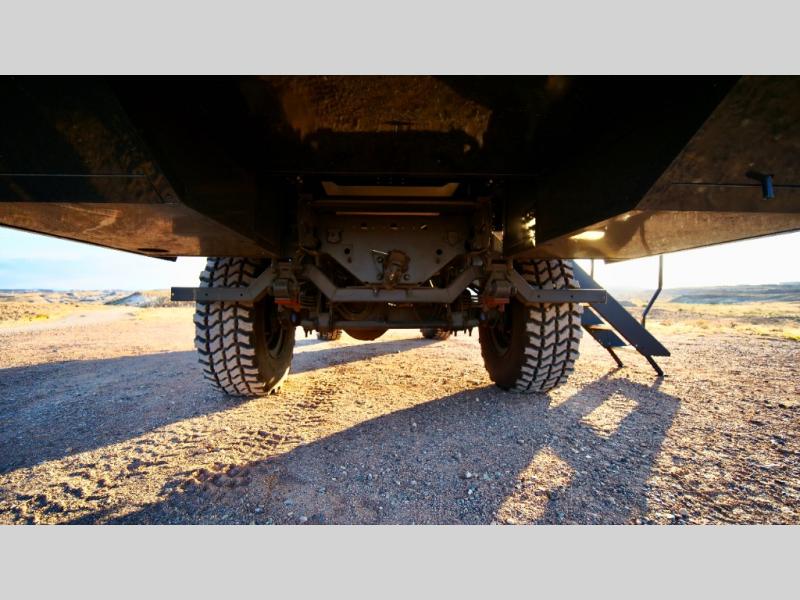

- Parabolic-tapered leaf springs with hydraulic twin-tube shocks

- ABS brakes with supplemental air-actuated driver-controlled exhaust “Jake” brake

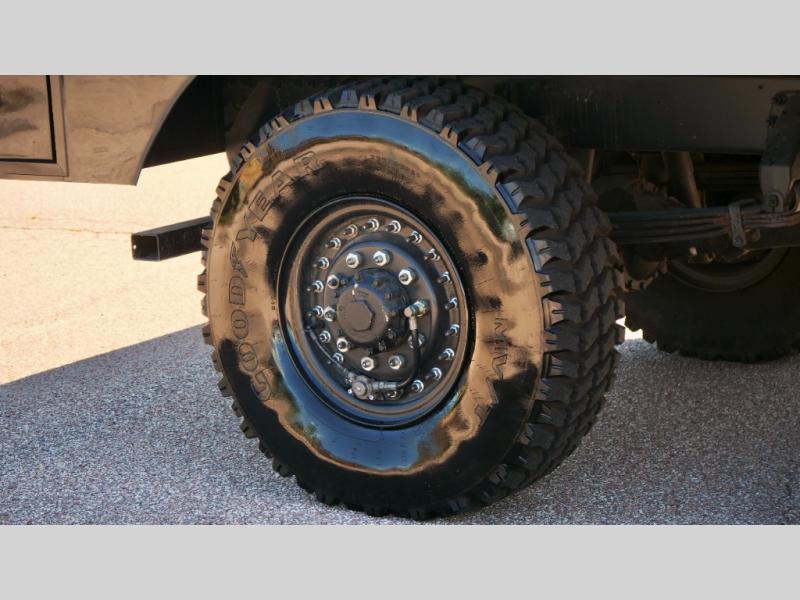

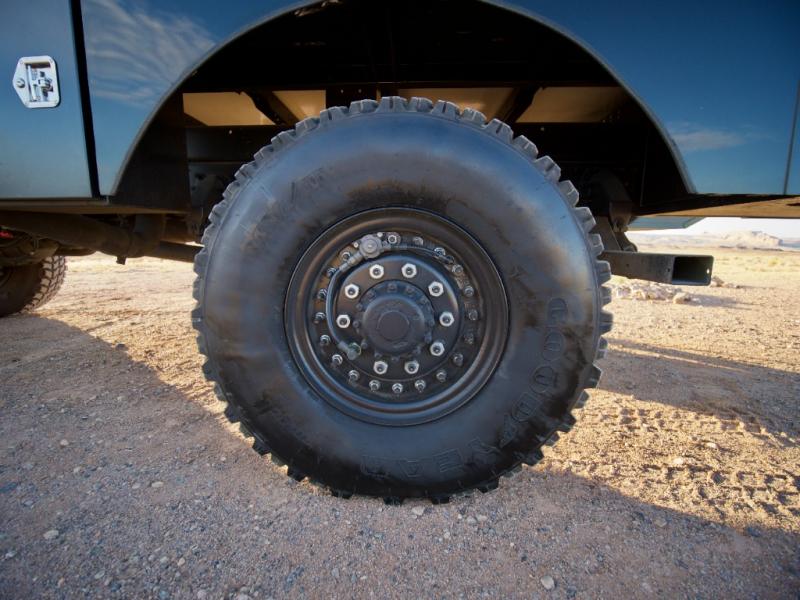

- 46” Goodyear MV/T, 14-ply, 81MPH-rated tires, load-range G Super Singles

- Rack-mounted hydraulic lift for the spare tire

- Dual voltage, 12/24VDC, central power distribution panel

- 100 amp, 12/24 volt, waterproof, EMI/RFI suppressed 12/24 volt power supply

- Four (4) 6T commercial batteries with 3000 CCA and 480 CA

EXTERIOR:

- RS-designed self-supporting body/frame with a welded and huck-fastened box frame structure for maximum strength

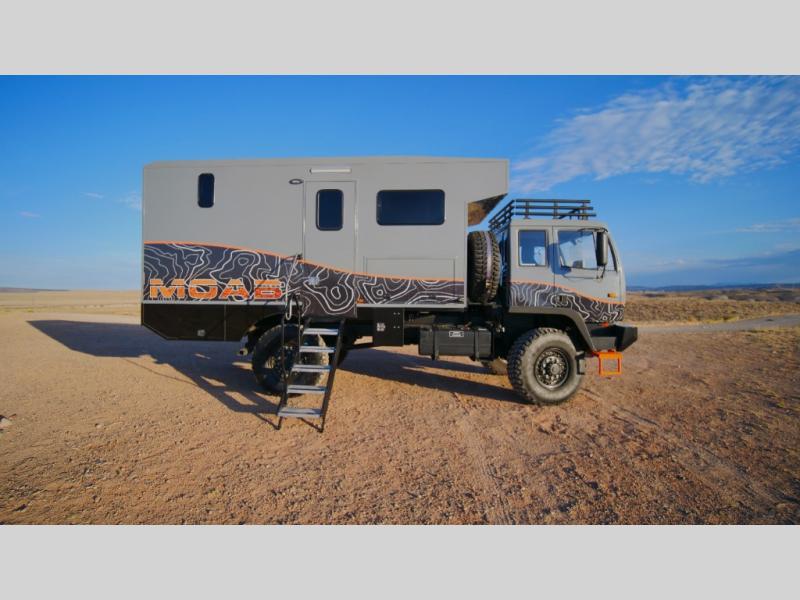

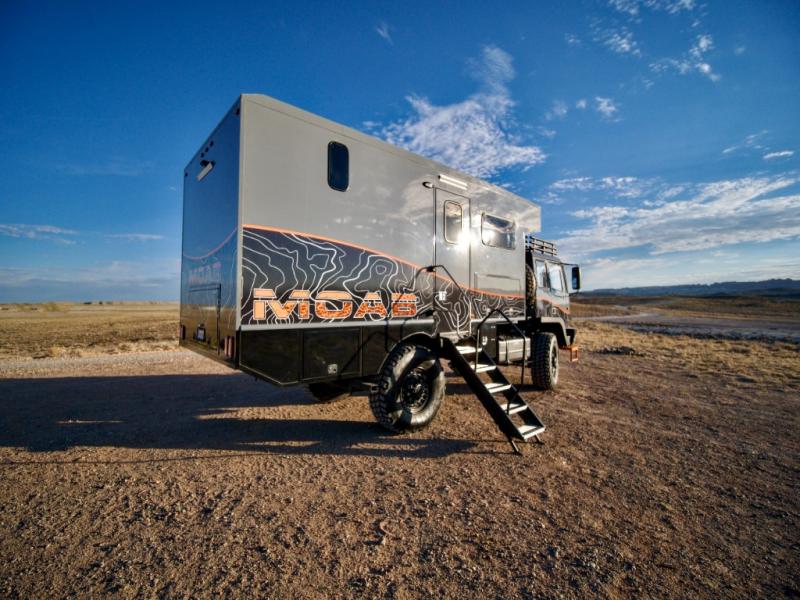

- Articulating step for easy entry/exit

- Grab handle and railing at the entry door for convenience

- Multiple metal storage areas with lockable doors

- Fully painted body to match the truck

- All tanks are easily accessible through exterior storage doors

- All components are self-contained within the shell, allowing the habitat to be unbolted from the chassis

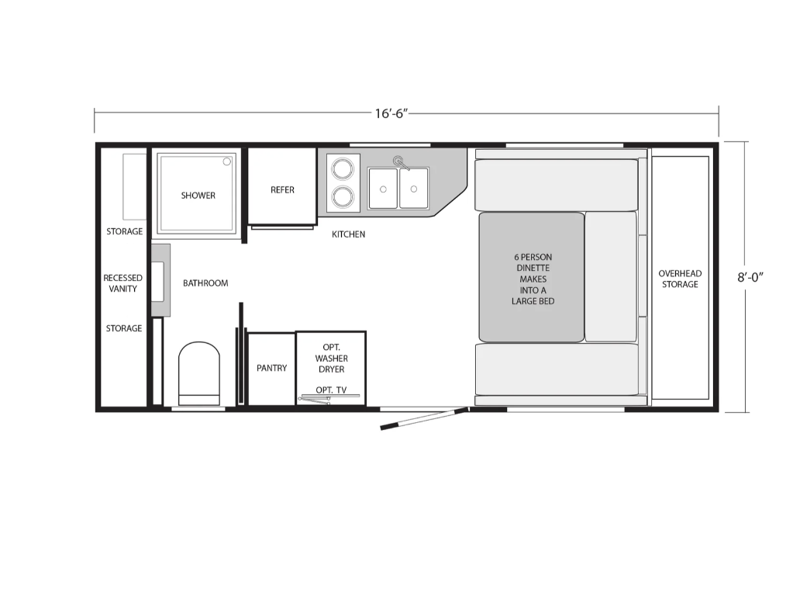

INTERIOR:

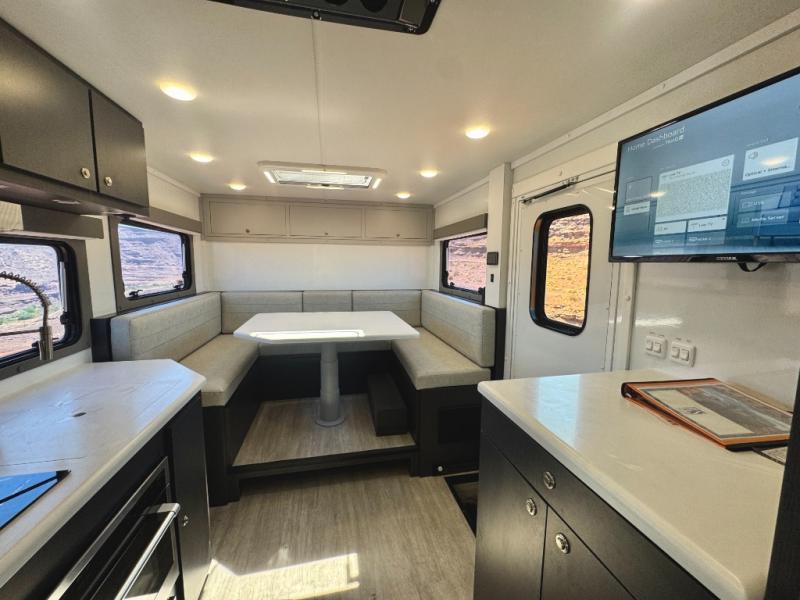

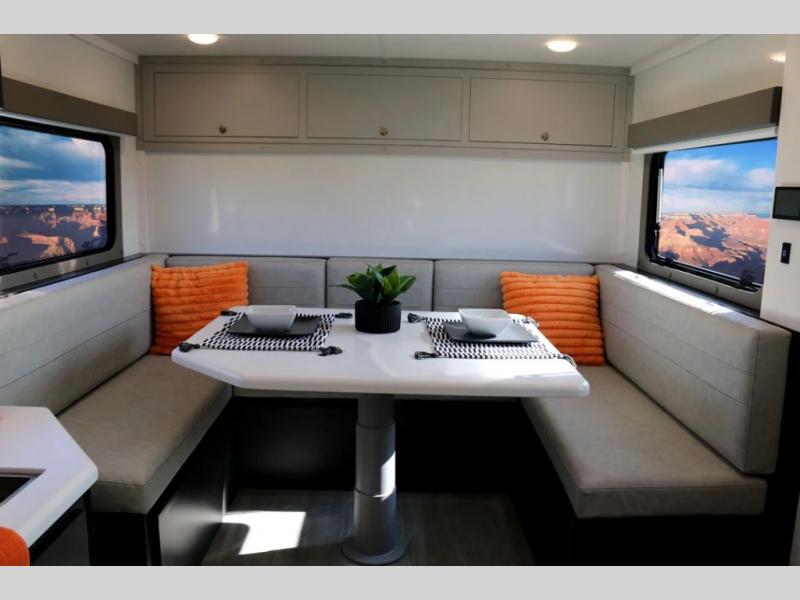

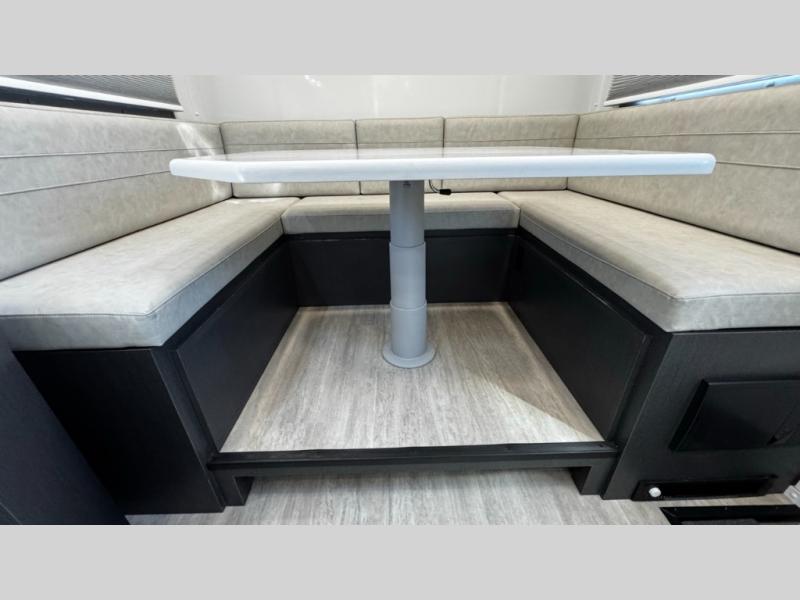

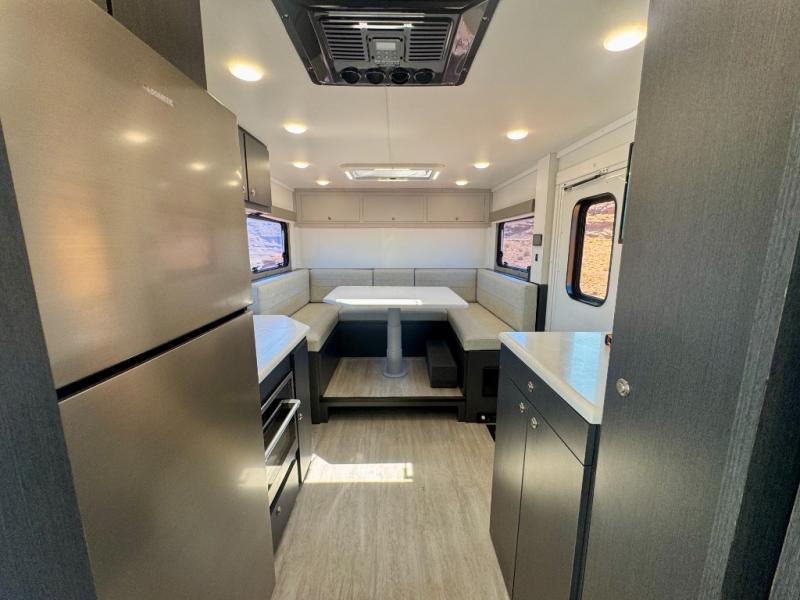

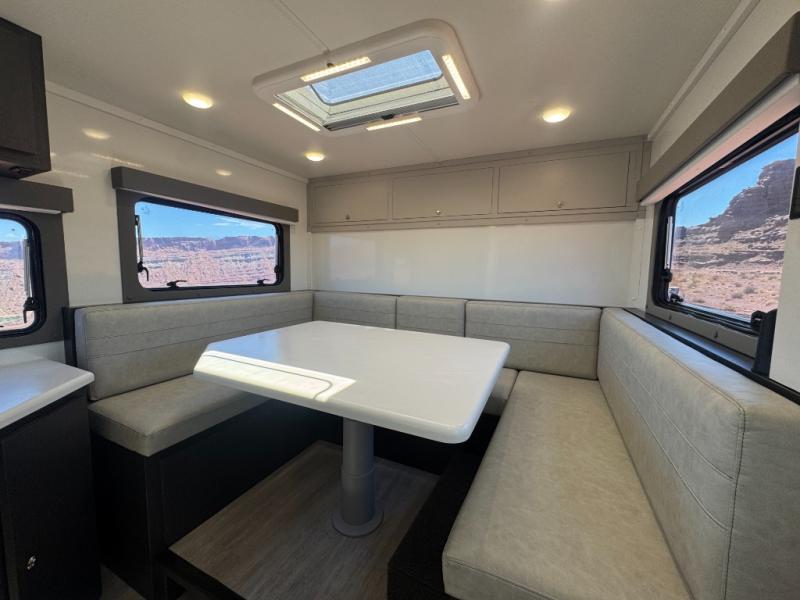

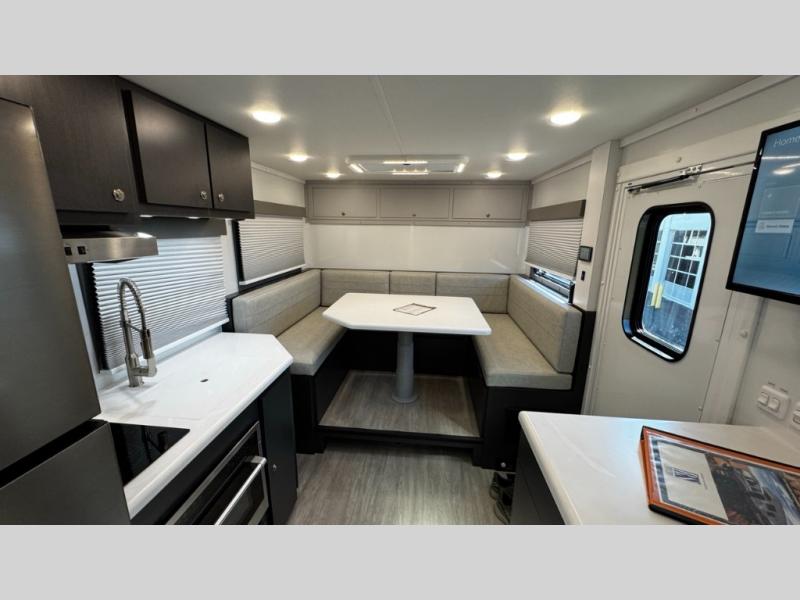

- Large dining table for 6, converts to King Bed

- High ceilings with premium soft touch headliner

- Closet with shelves and hanging rod

- Under dinette storage

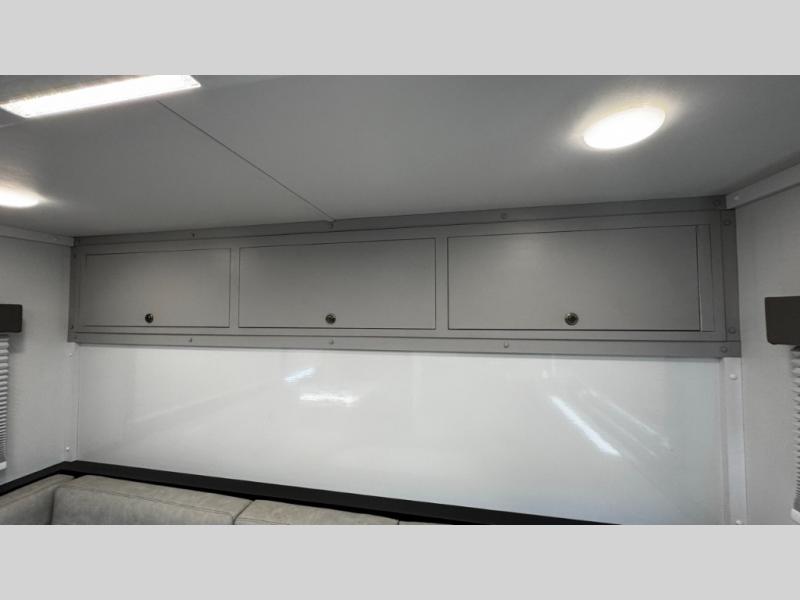

- Cab over storage

- Commercial-grade flooring for easy cleaning

- Premium seating material

- Commercial-grade laminate cabinets with soft close mechanism

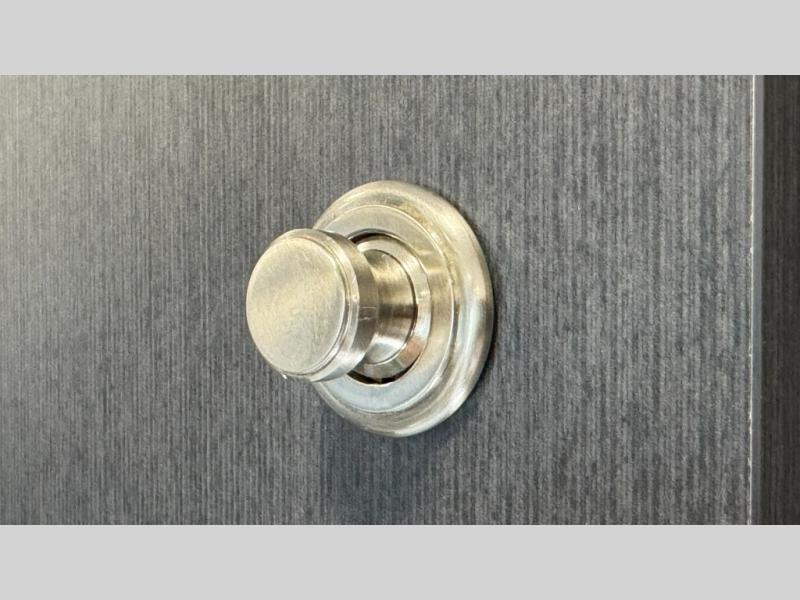

- Push button latches

- Solid surface countertops throughout

EXTERIOR LIGHTING:

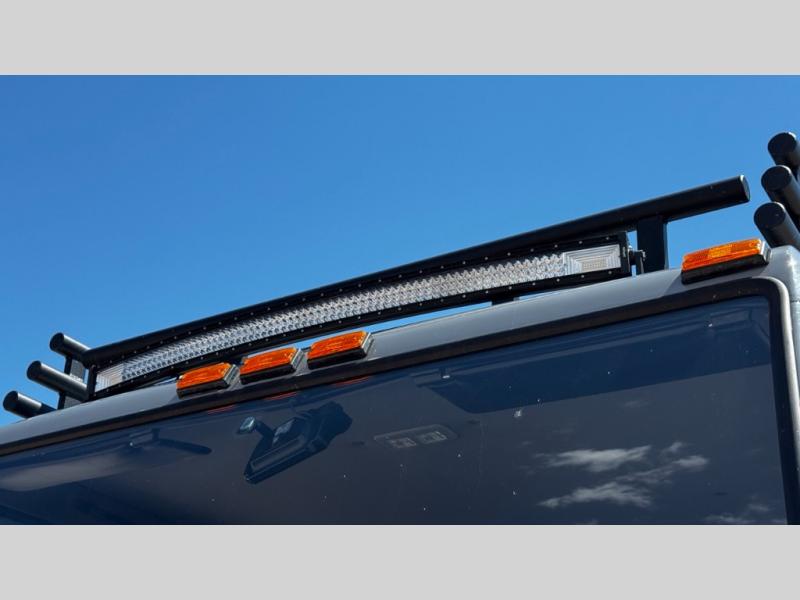

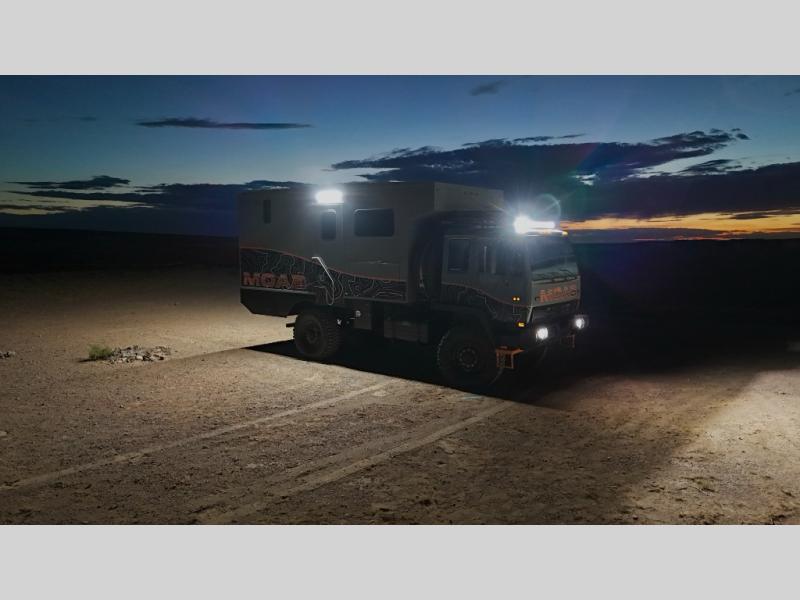

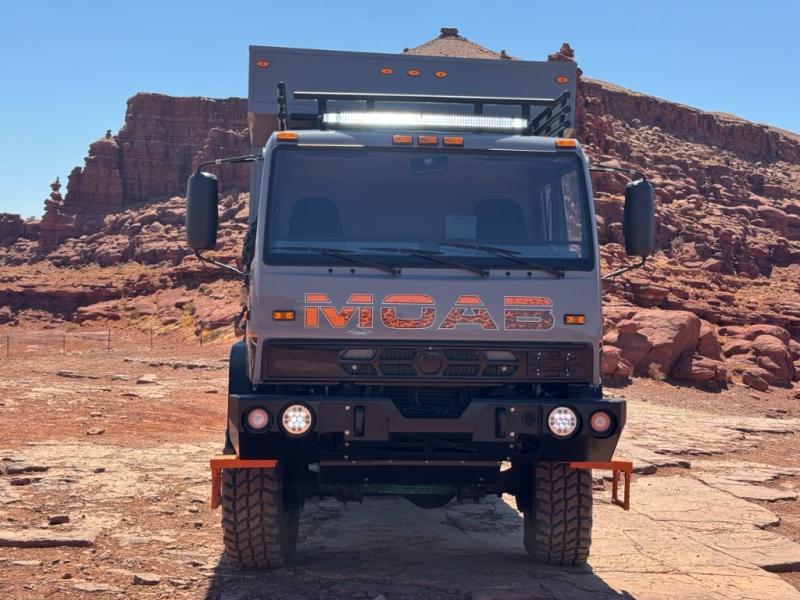

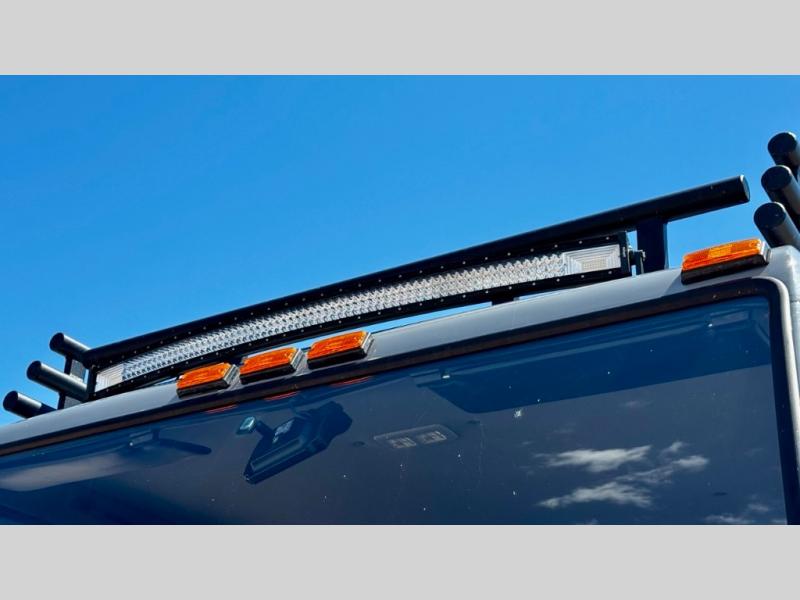

- 52” LED light bar on front of cab

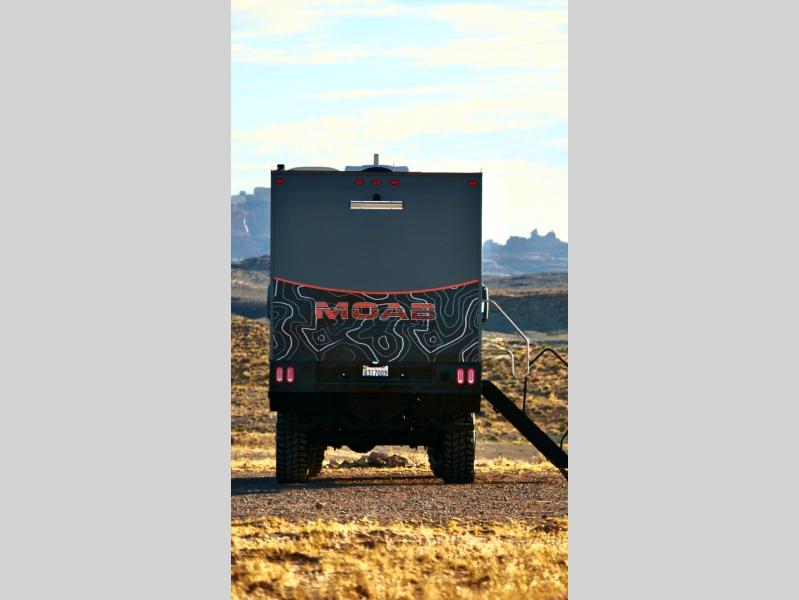

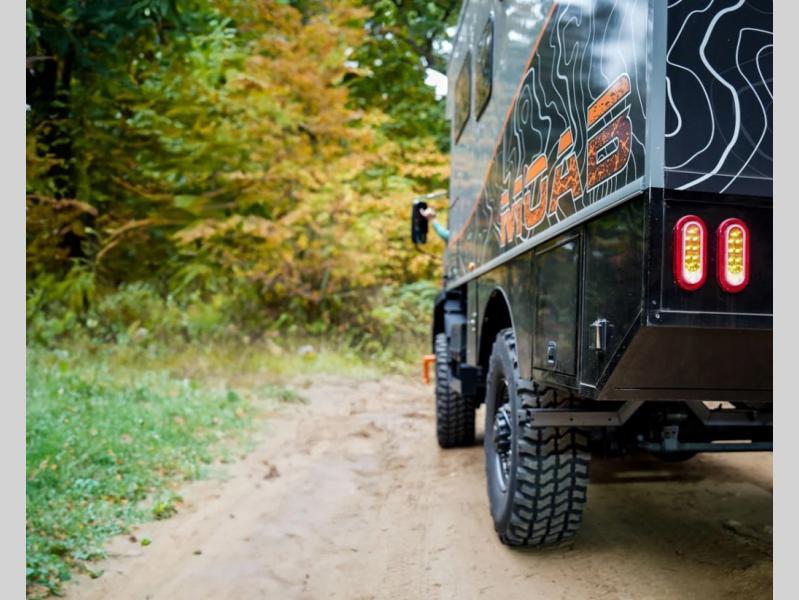

- LED tail and brake lights, upper and lower, & marker lights

- LED reverse lights

- LED rear license plate light

- Fog lights

- OEM driving lights

- 3-LED 12” security lights

INTERIOR LIGHTING:

- Zoned lighting throughout

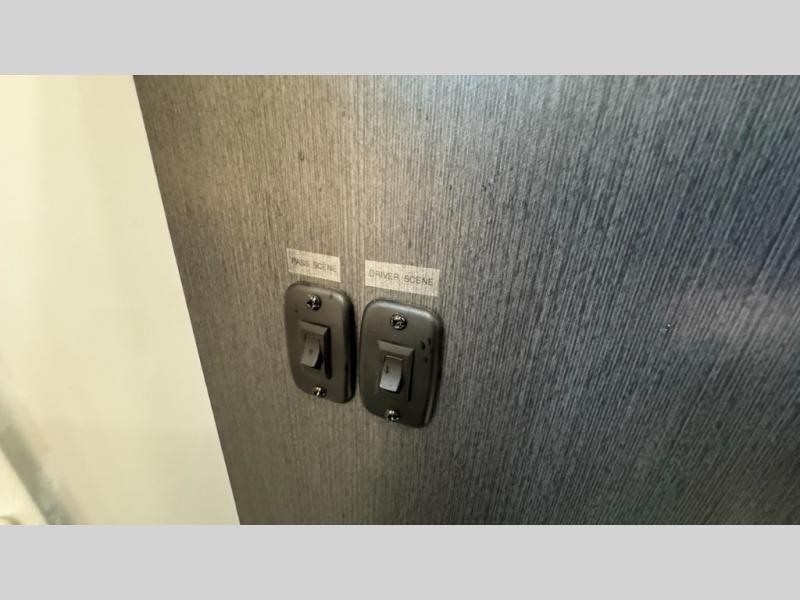

- Independent on/off switches for overheads, bathroom, dinette, kitchen, and outside security lights

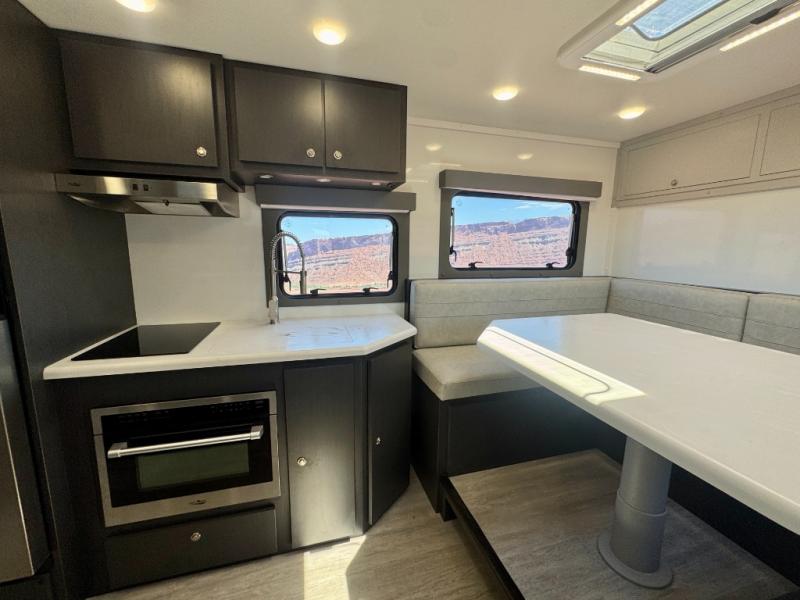

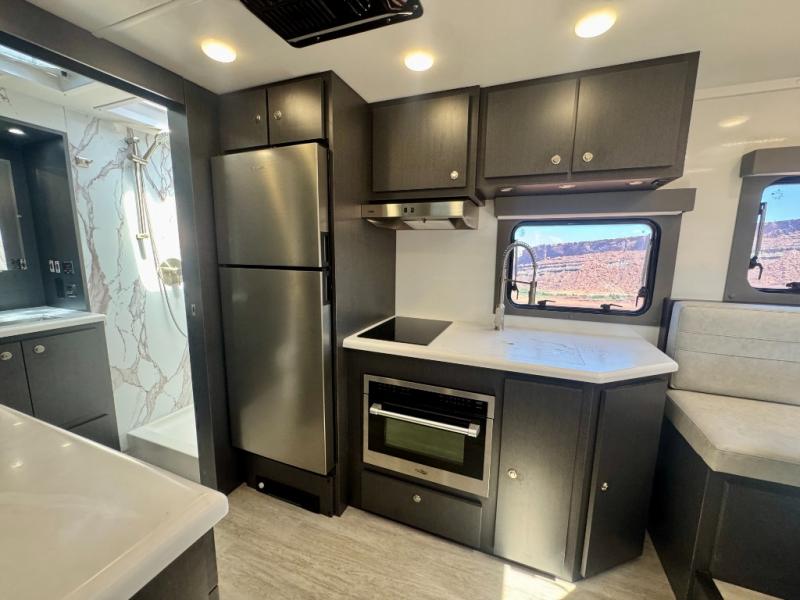

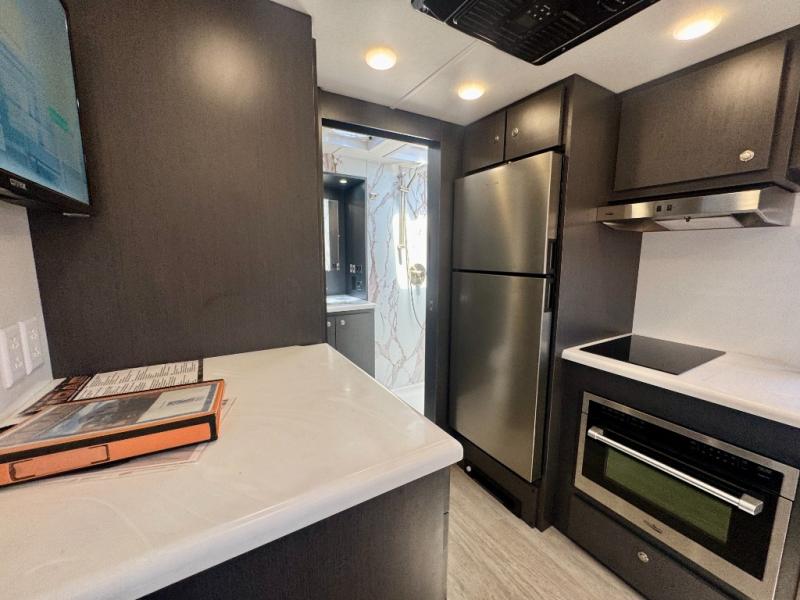

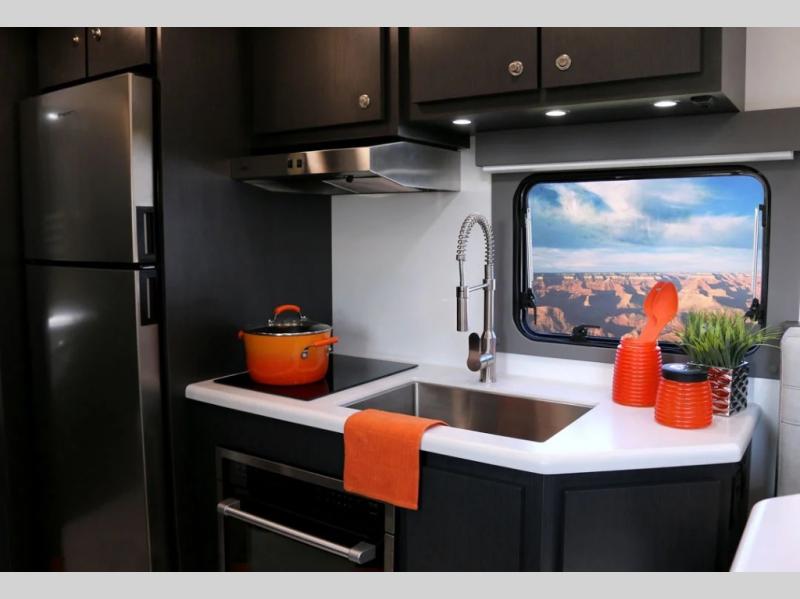

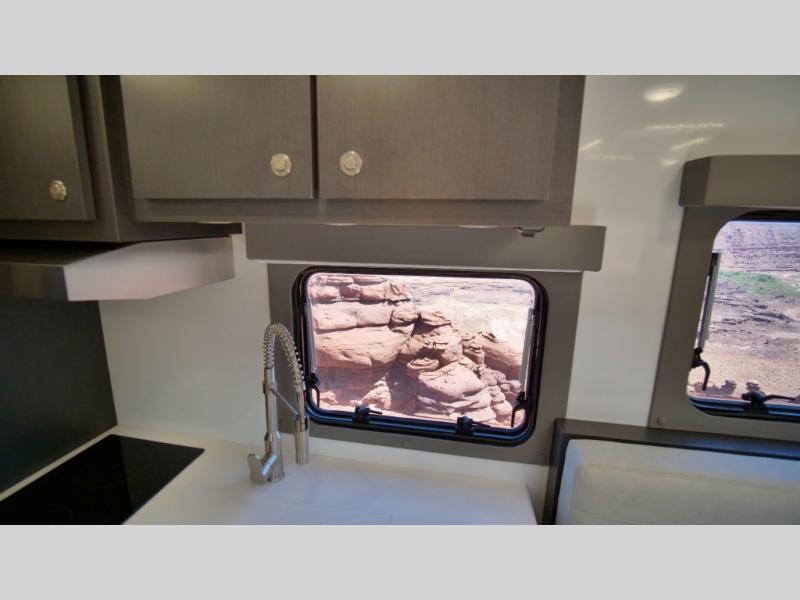

GALLEY:

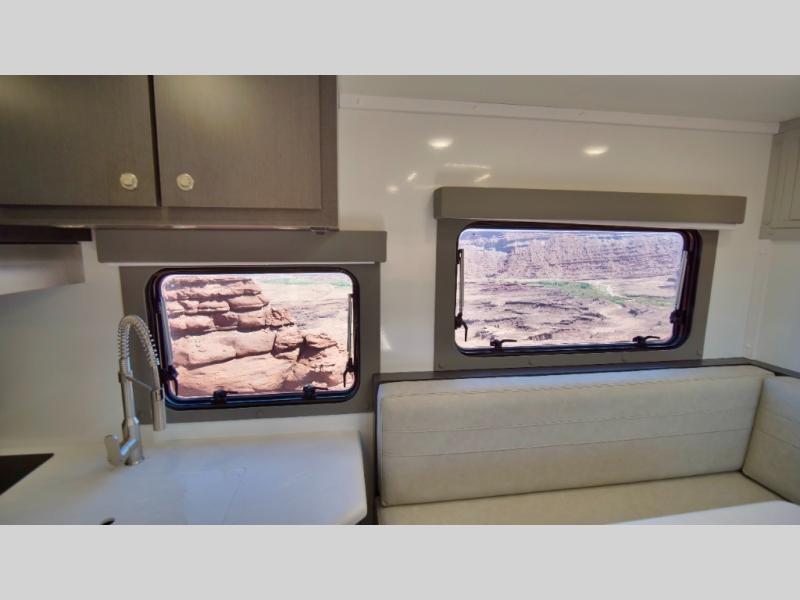

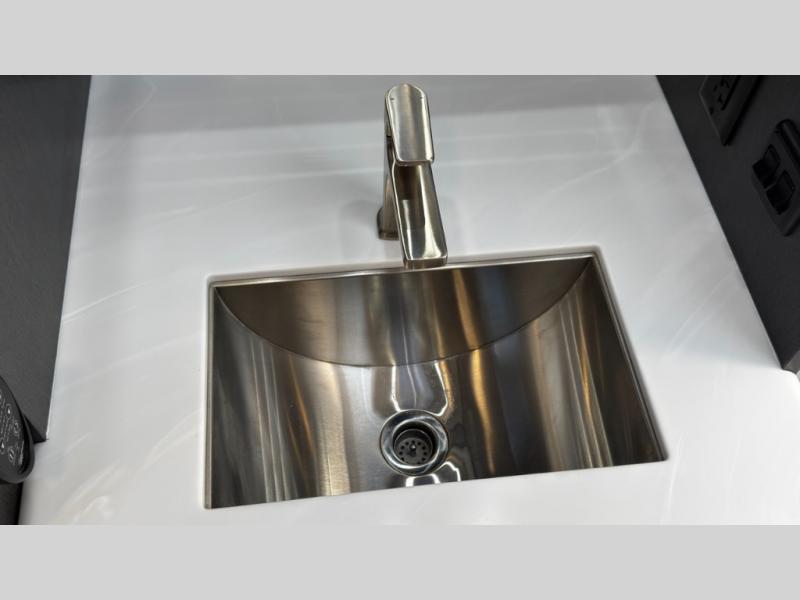

- Residential-style stainless-steel sink with large faucet

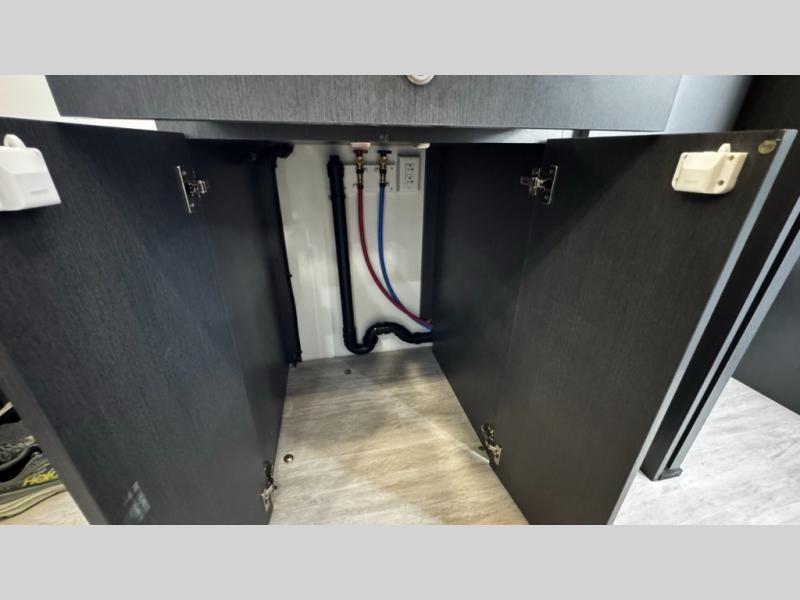

- Under cabinet storage for trash can

- Residential-style solid surface countertops

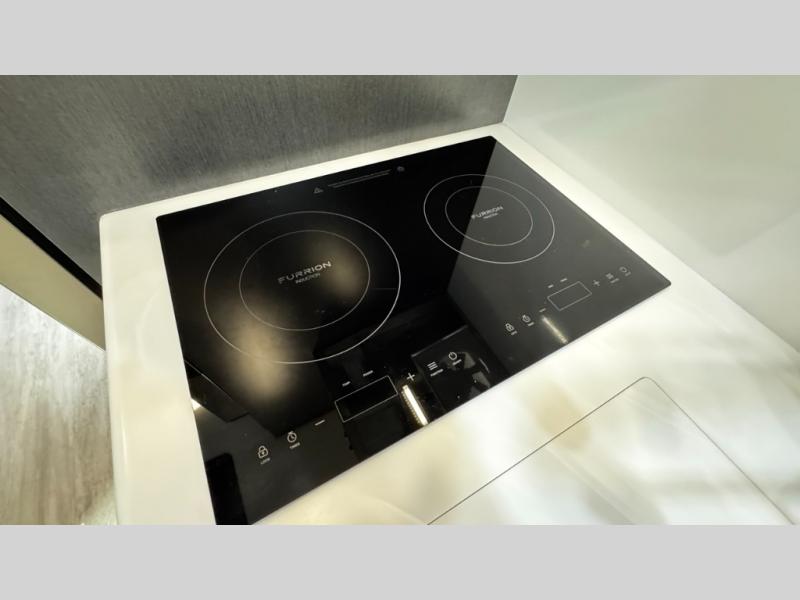

- Removable-double burner induction cooktop (plug in outside)

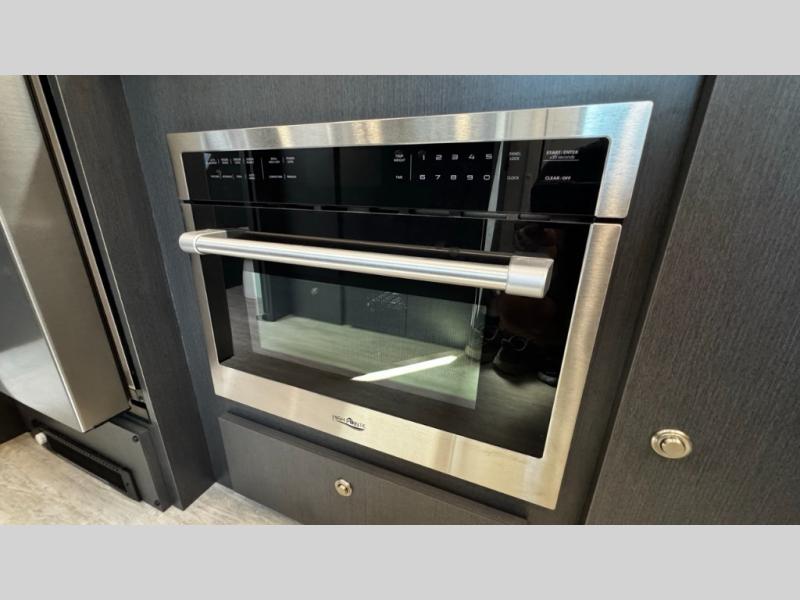

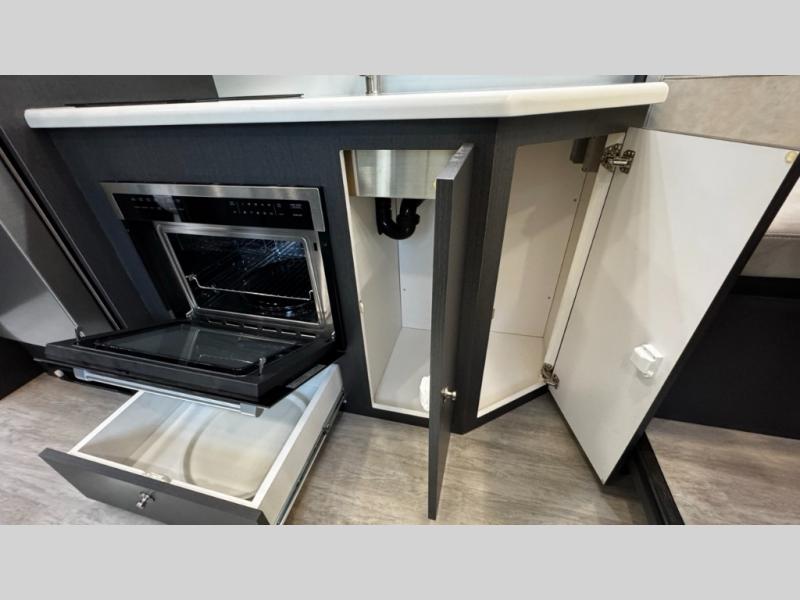

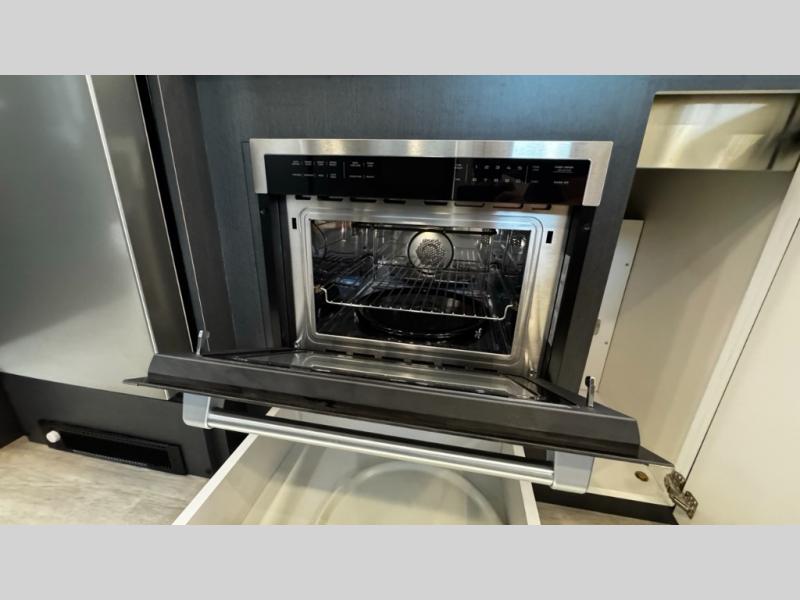

- Convection microwave/oven

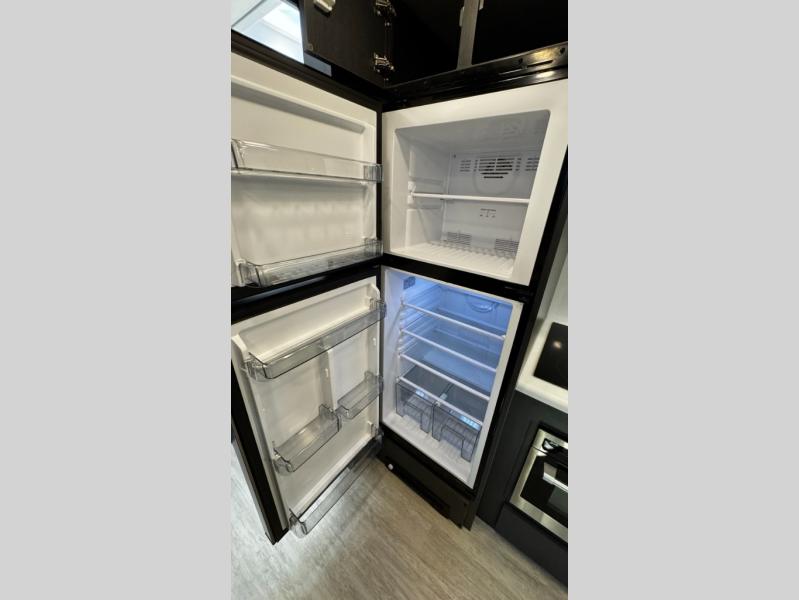

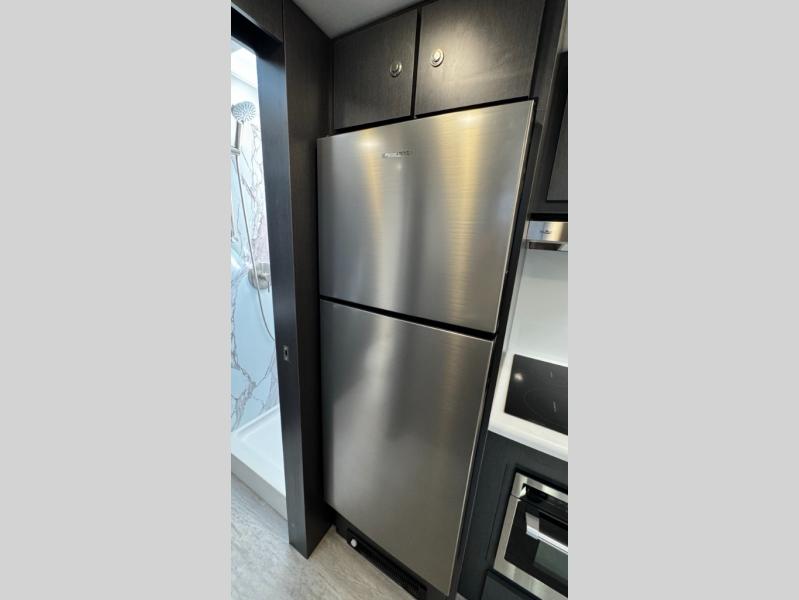

- Refrigerator/freezer

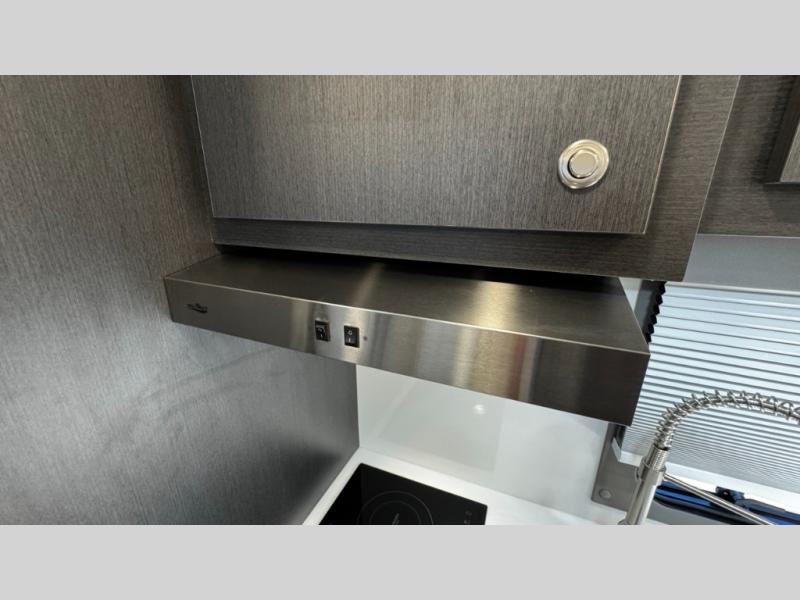

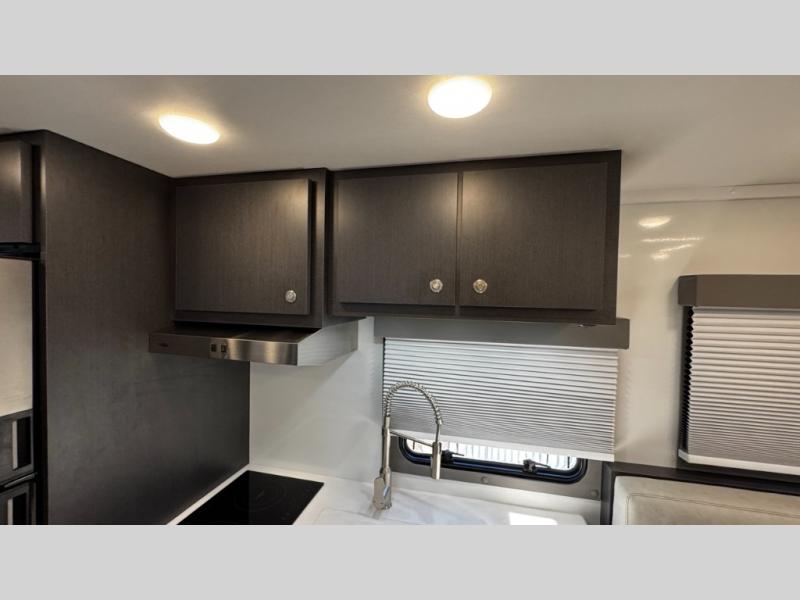

- Exhaust hood

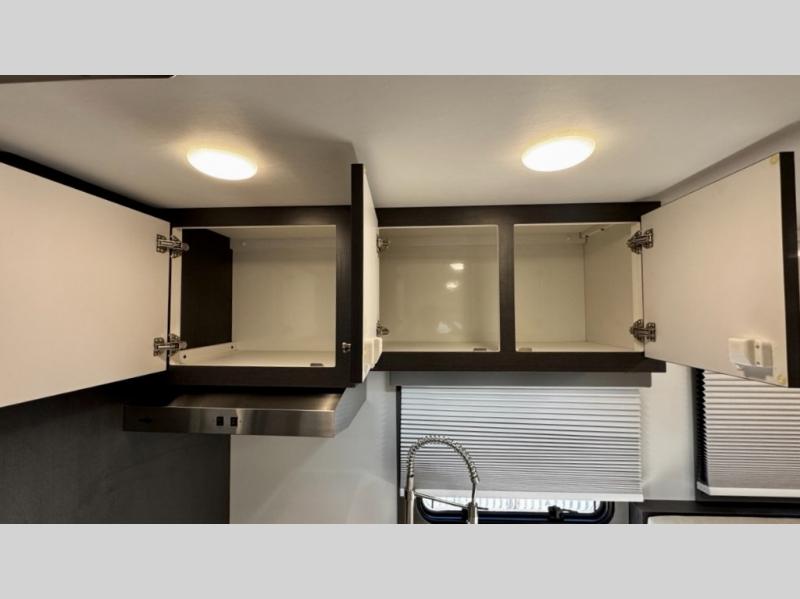

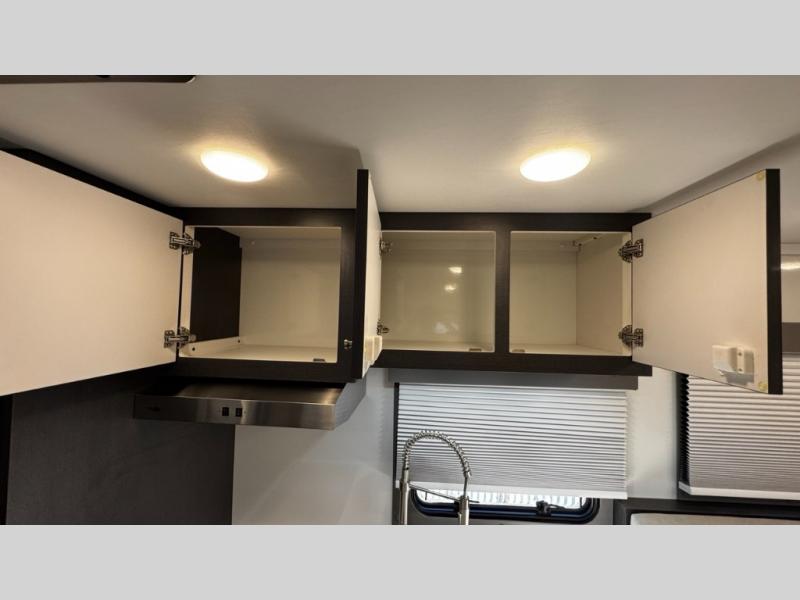

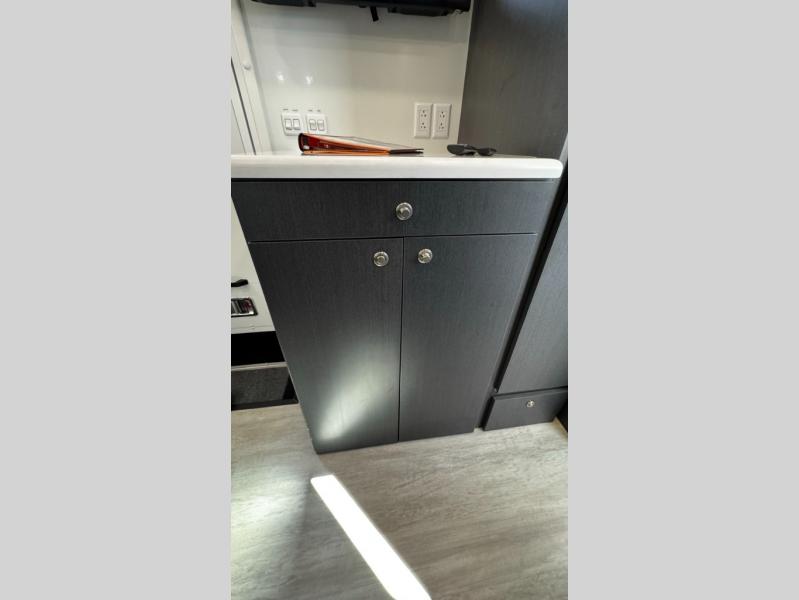

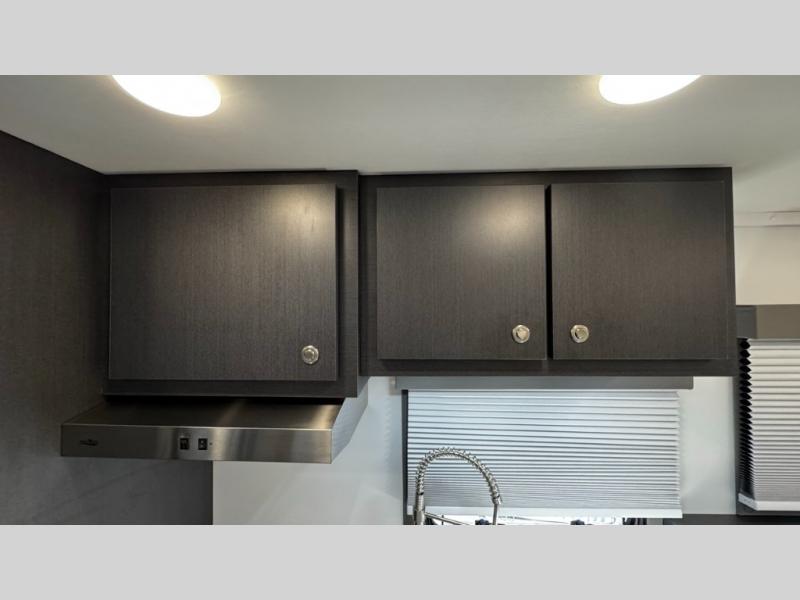

- Overhead and base cabinet storage

- Washer/dryer cabinet with pull-out storage drawer

- Countertop space with outlets for charging devices

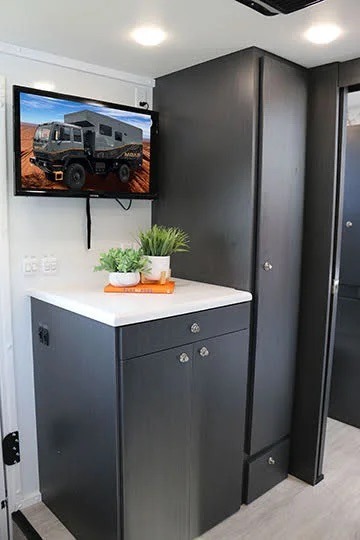

- Wall-mounted Smart TV

- Ceiling skylight for roof access above the dinette table

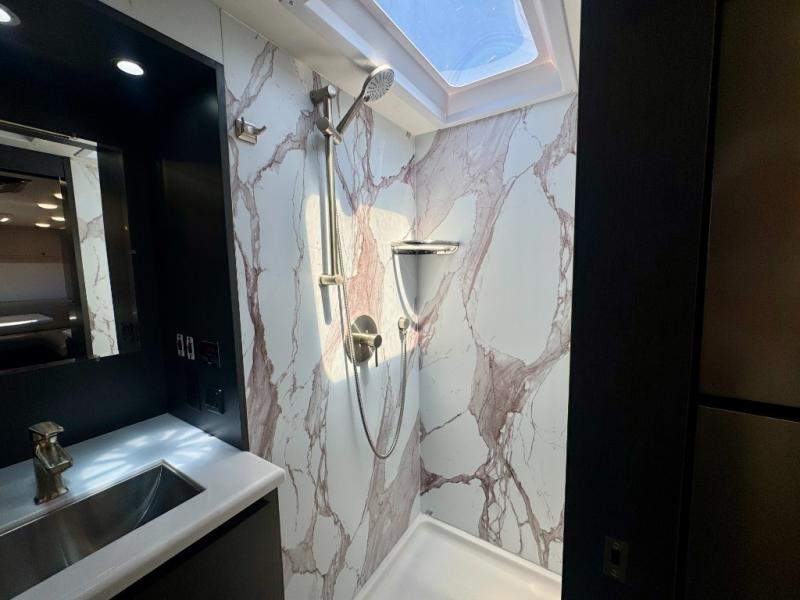

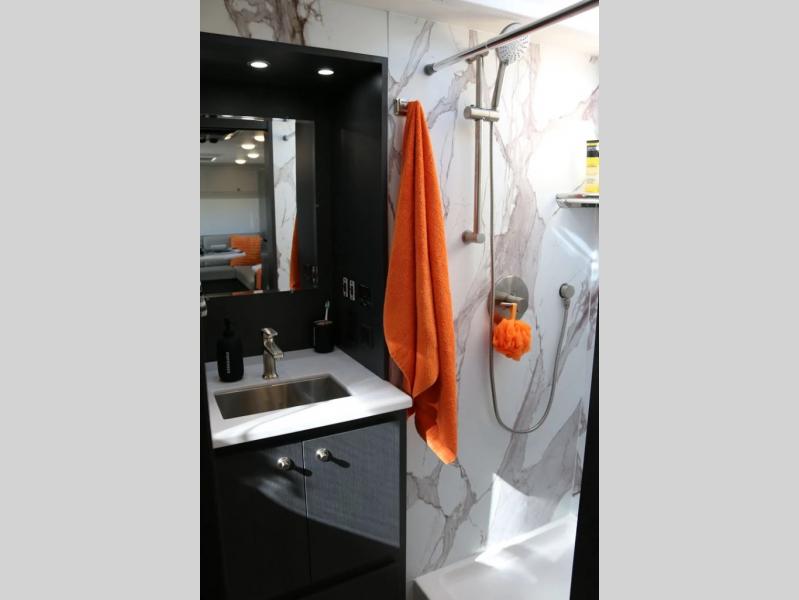

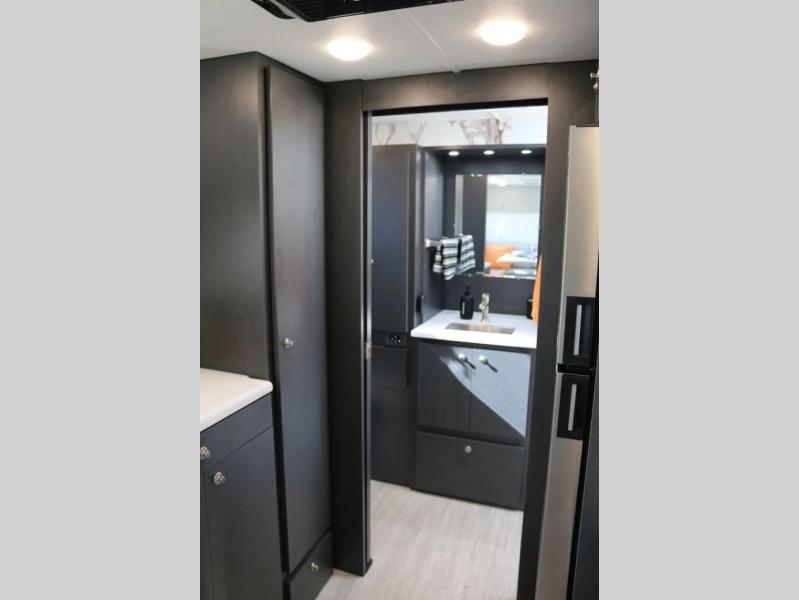

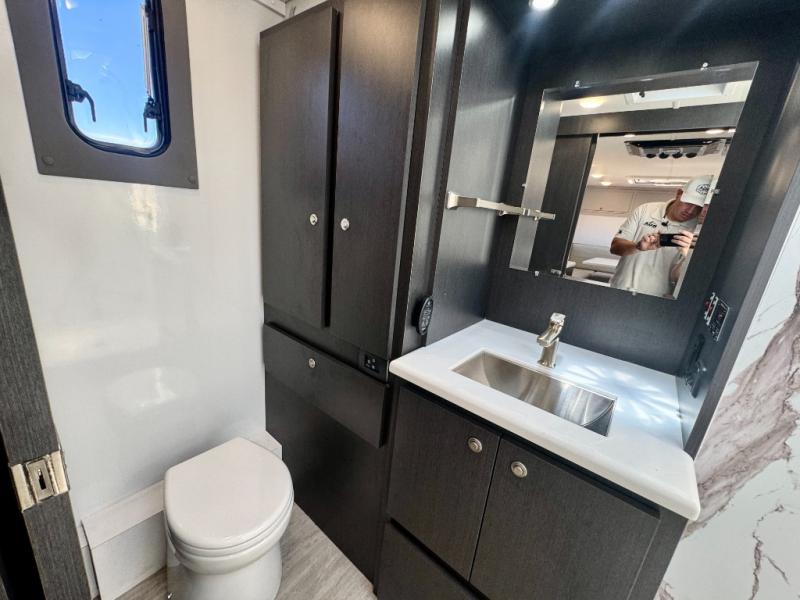

BATHROOM:

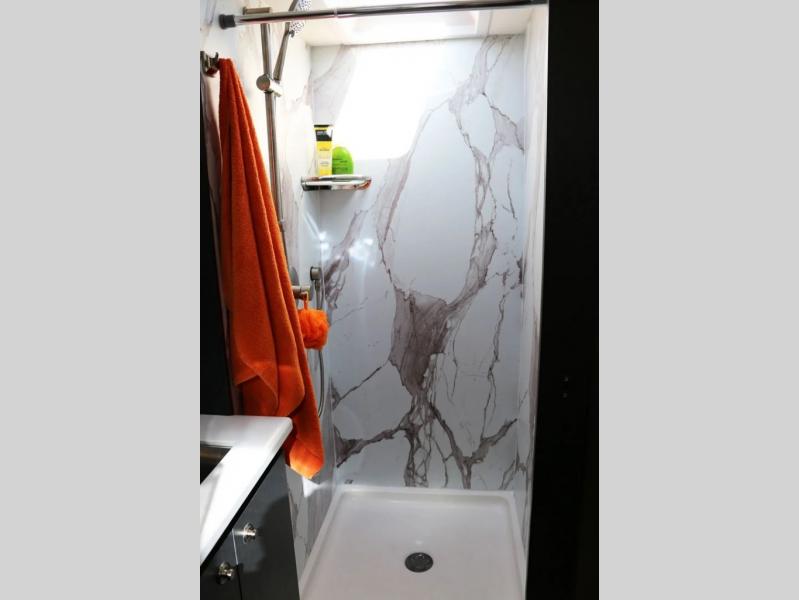

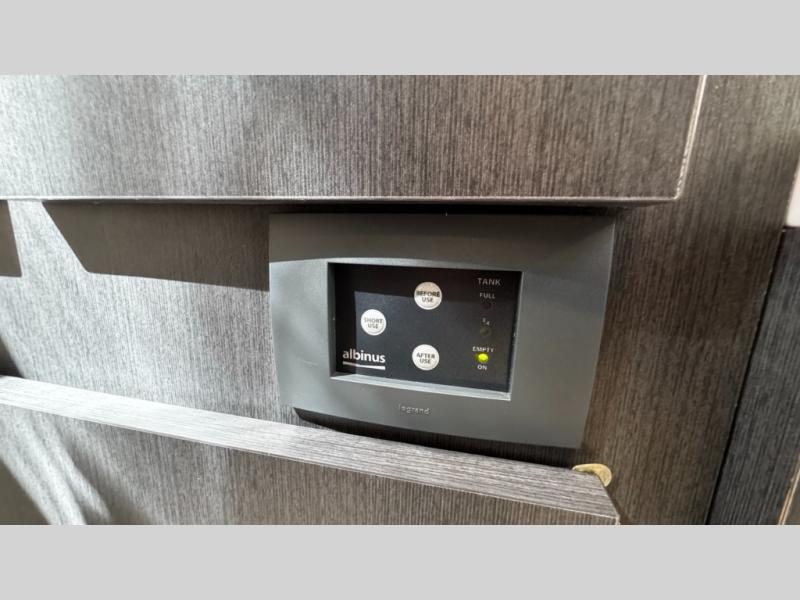

- Fully dry, enclosed bathroom with toilet and walk-in shower

- Vanity mirror

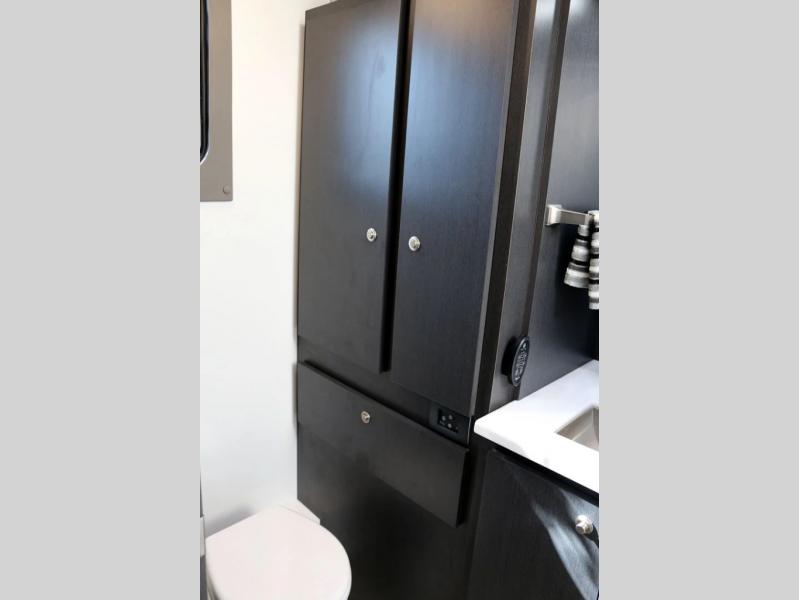

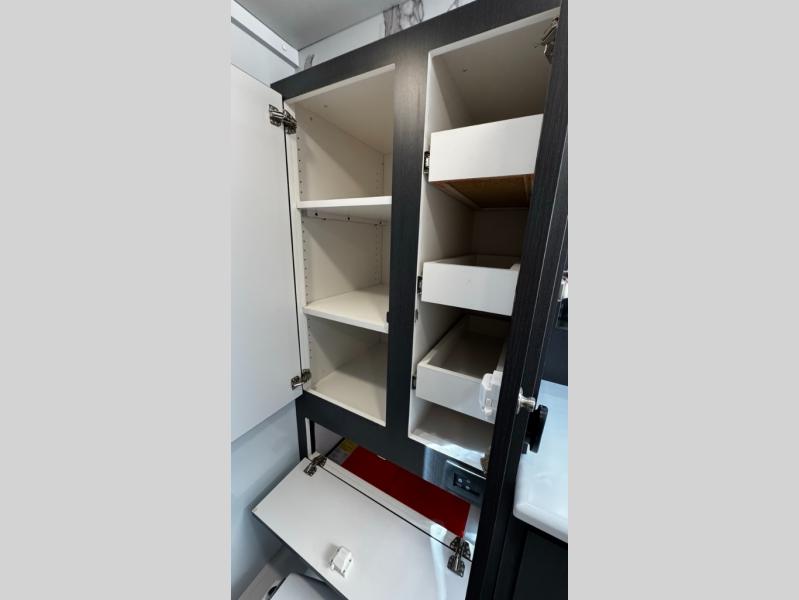

- Floor-to-ceiling storage cabinet beside the toilet

- Lower cabinet storage with a pass-through to the rear exterior storage

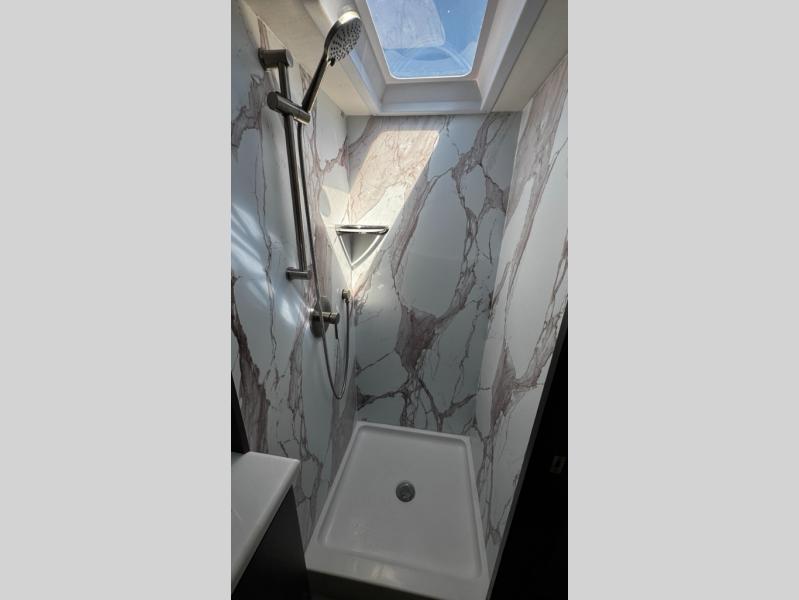

- Removable shower wand on a height-adjustable slide bar

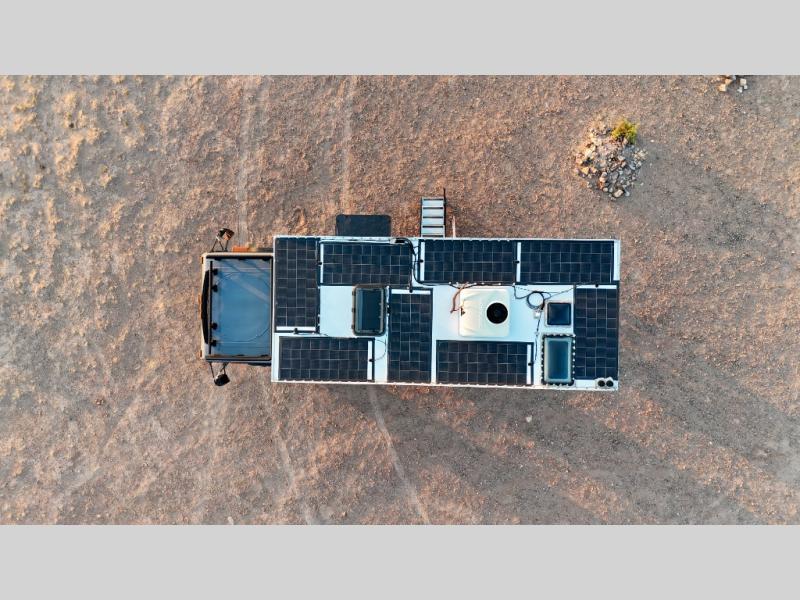

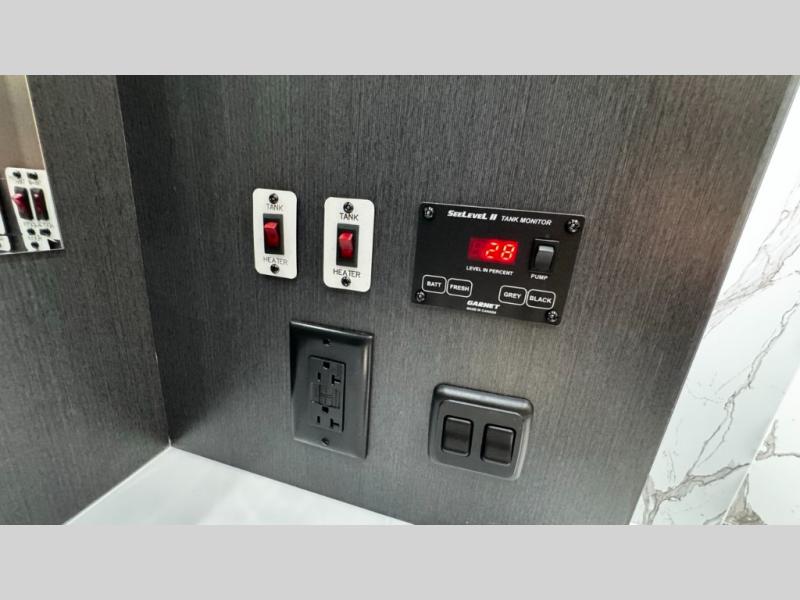

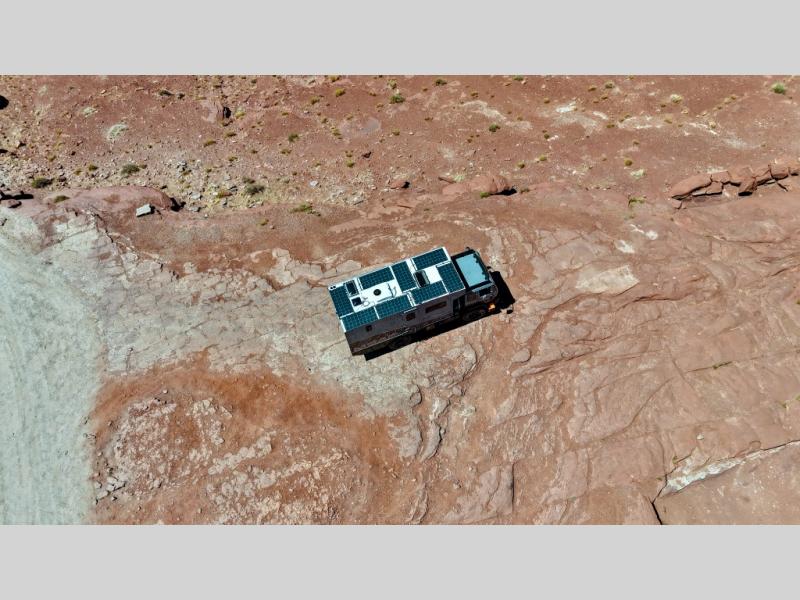

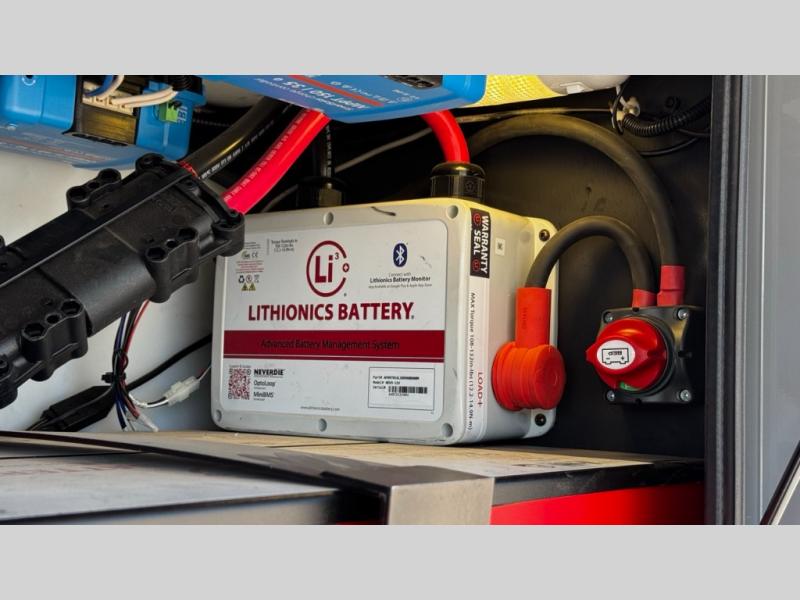

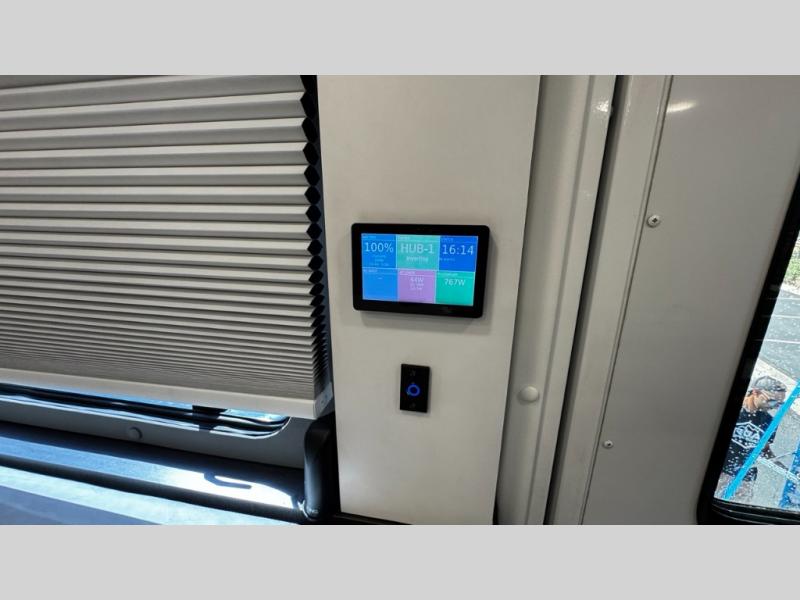

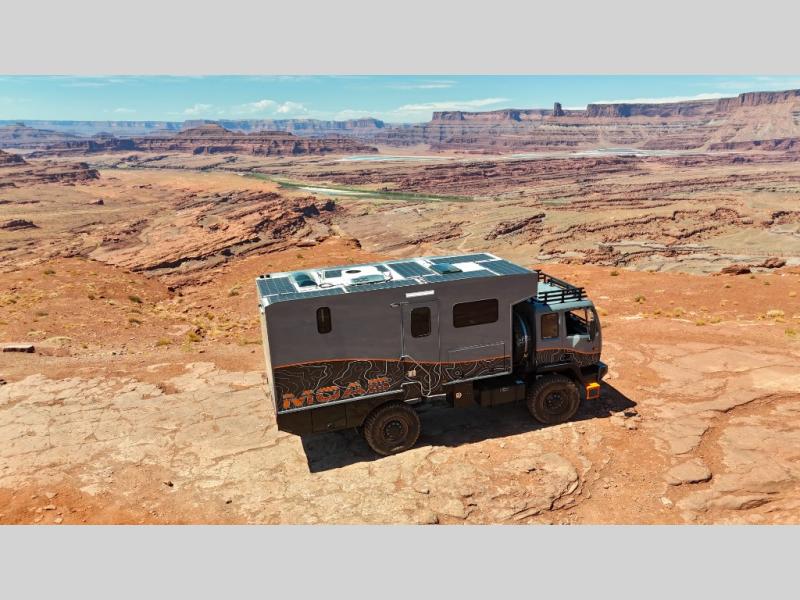

Premium fixtures, premium toilet paper holder, skylight, variable speed exhaust fan with rain cover, industry-leading off-grid electrical system, 50 amp service, 6000 watts inverter power, max A/C run time of 21 hours, running full system at 10 hours (solar/alternator/shore power adds additional time), less than 5 hours recharge time at full capacity, just over 3 hours recharge time with sunlight/solar, 17 kilowatts energy storage system, two 8440 watt hour module lithium-ion batteries, 1.5 kilowatts Merlin flexible solar panels, market-leading remote interface with Bluetooth and Wi-Fi-based app, Victron touchscreen control panel, 120V AC outlets in front overhead, dinette, kitchen, washer/dryer cabinet, bathroom, and storage area, 20 amp AC outlet in compartment, two 75 gallon self-contained and heated fresh water holding tanks with manual drain valve (total 150 gallons), four 40 gallon self-contained and heated waste black tanks with manual drain valve, three 30 gallon self-contained and heated waste grey tanks with manual drain valve, tank monitoring system, high-capacity water pump.

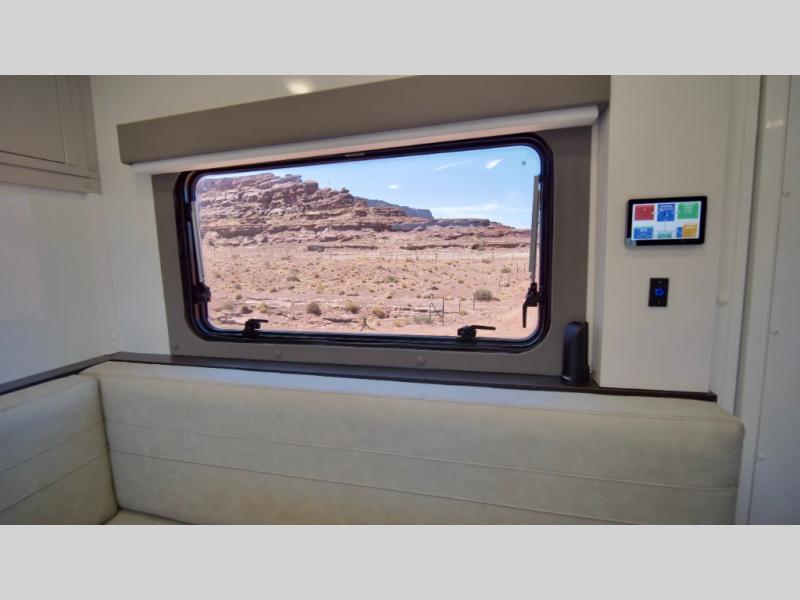

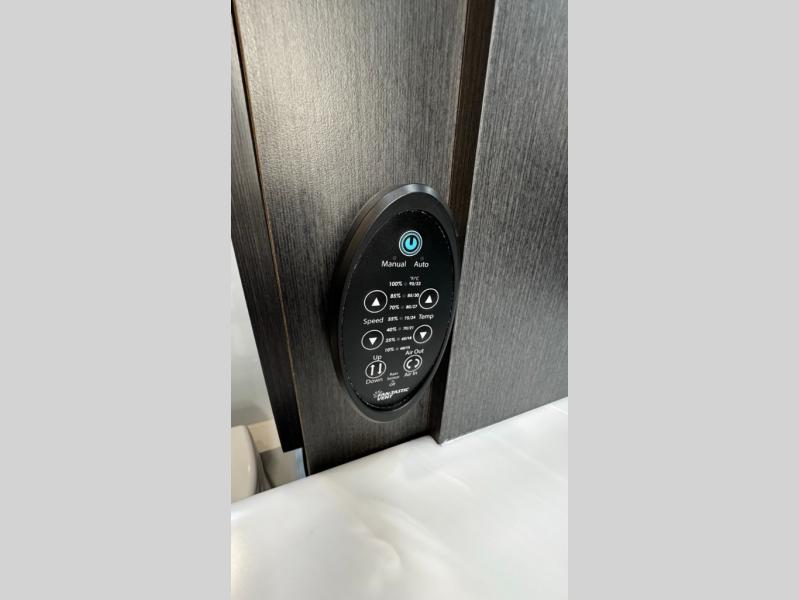

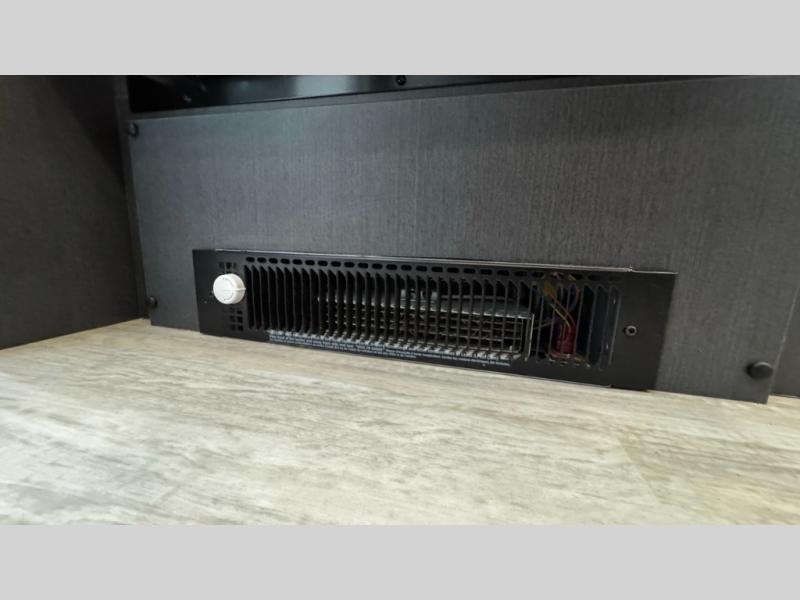

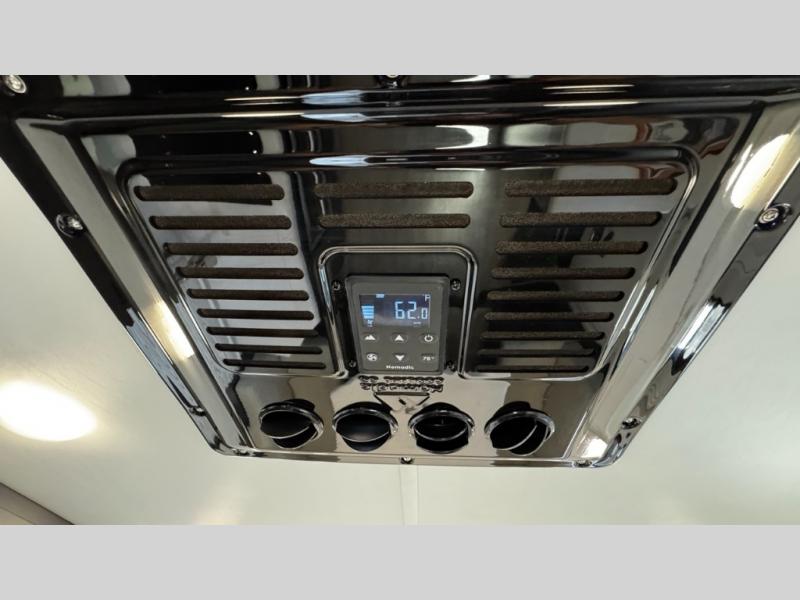

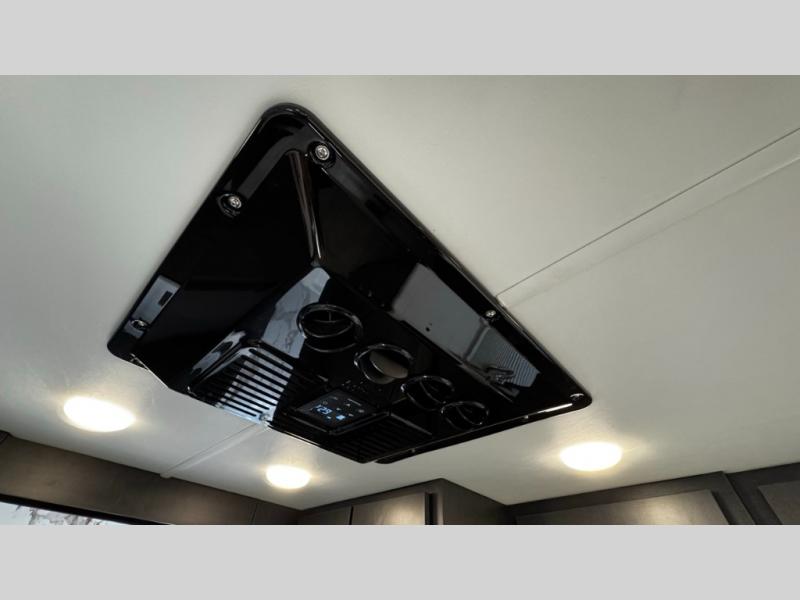

10-gallon water heater, exterior shower with hot and cold water, air conditioning, heating, and ventilation. Nomadic Cooling 3000 48 Volt A/C with 48 Volt brushless motor, highly efficient, reduces noise, and increases motor life. Two thermostat-controlled toe kick heaters. Dual pane windows fully open to bring the outside in. Roof hatch with vent fan, screen, and escape hatch. Carbon monoxide/smoke detector, fire extinguisher, roadside safety kit. Fresh water hose, waste tank hose, axe, shovel, metal constructed storage boxes, and 50 Amp shore cord.
