New 2023 Bay Star 3626 Motor Home Class A

* The images displayed may represent all Bay Star models

Shop Bay Star 3626 For Sale

Bay Star 3626 Description

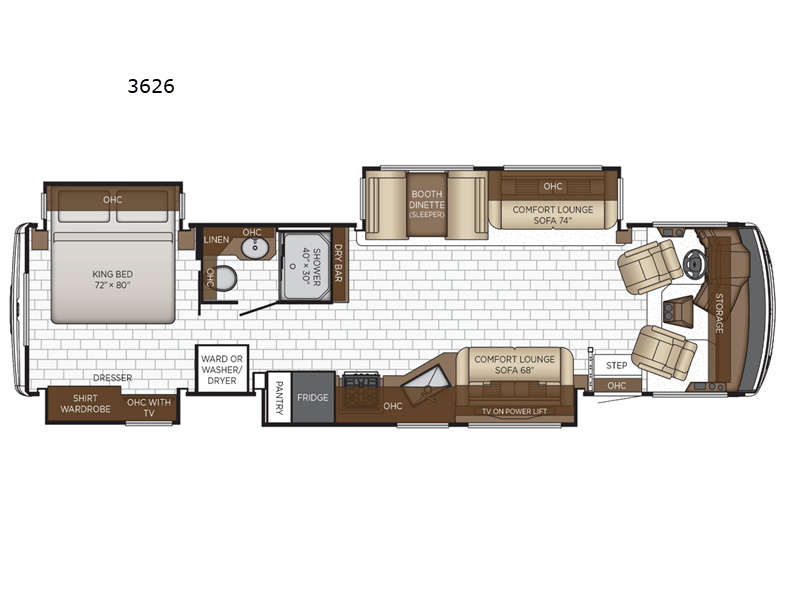

Newmar Bay Star Class A gas motorhome 3626 highlights:

  • Comfort Lounge Sofa
  • Pantry
  • King Bed Slide Out
  • Front Overhead Storage
  • 10 Cu. Ft. Norcold Refrigerator
  • 6-Way Power Driver's Seat



Four slide outs make this motorhome both spacious and comfortable for all your excursions! The passenger workstation will be big plus if you need to telecommute on the way to the campground, and your guests can stay comfortable on the comfort lounge, the booth dinette, and the Visionary V2 tri-fold sofa. This model includes a wardrobe right across from the full bath that can be optioned out for an optional Splendide stacked washer and dryer, and the rear private bedroom will feel just like home with its king bed and shirt wardrobe. There is even a bedroom LED TV, along with the living room LED TV on power lift!



Each Bay Star Class A gas motorhome by Newmar delivers a smooth ride thanks to the standard electronic stability control, along with the 7.3-liter V8 engine with 450 HP and 468 lb./ft. of torque and heavy duty sway bars. The exterior is sure to turn heads with its full-paint Masterpiece Finish, and you'll have three interior decor choices and three wood choices to truly make the coach your own. Each model includes newly styled Williamsburg furniture, luxurious vinyl tile flooring, polished solid surface countertops in the kitchen, plus many more comforts. Head outside to find lit basement storage, a 5.5kW Onan generator with remote switch, and smart level hydraulic leveling jacks with a Bluetooth compatible touch pad for set up easy as 1-2-3! You can further customize your coach with the many options that are offered, such as the optional exterior entertainment center, the optional fireplace in the living room, and the optional Whirlpool refrigerator to name a few!

Bay Star 3626 Specifications

Sleeps 5
Slides 4
Length 36 ft 11 in
Ext Width 8 ft 6 in
Ext Height 12 ft 8 in
Int Height 6 ft 8 in
Interior Color Axis, Burma, Colusa
Exterior Color Axis, Burma, Colusa
Hitch Weight 5000 lbs
Gross Weight 26000 lbs
Dry Weight 22750 lbs
Cargo Weight 250 lbs
Fresh Water Capacity 75 gals
Grey Water Capacity 60 gals
Black Water Capacity 40 gals
Furnace BTU 42000 btu
Generator 5.5 kW Cummins Onan
Fuel Type Gas
Engine 7.3L V8
Chassis Ford F-53
Horsepower 350 hp
Fuel Capacity 80 gals
Wheelbase 252 in
Available Beds King
Torque 468 ft-lb
Refrigerator Type Norcold
Refrigerator Size 10 cu ft
Convection Cooking Yes
Cooktop Burners 3
Shower Size 40" x 30"
Number of Awnings 1
Axle Weight Front 9000 lbs
Axle Weight Rear 17500 lbs
LP Tank Capacity 25 gals
Water Heater Capacity 6 gal
Water Heater Type Gas/Electric
AC BTU 27000 btu
TV Info LR Samsung LED, BR Samsung LED
Awning Info Carefree Travel'r Power Side Awning w/Strip Lighting
Washer/Dryer Available Yes
Gross Combined Weight 30000 lbs
Shower Type Standard
Electrical Service 50 amp
