Entegra Coach Aspire Motor Home Class A - Diesel

When you're dreaming of taking on the open road, none other will do than the Aspire Class A diesel motorhome by Entegra Coach. You may not even notice you're away from home with upgraded Italian leather furniture, plus new decor, wood, and exterior paint choices!



Each model includes the new E-Z Steer adjustable power steering assist, an Xite 360 degree HD digital camera system, and Villa heated and cooled leather captain's seats for the ultimate driving experience. The X-Bridge bracing welded into the chassis frame provides a strong foundation, along with insulated front and rear caps with a steel-reinforced front cap and windshield. You will be pleased to find hand-laid porcelain tiled floors, a central vacuum system, solid surface countertops with dimmable LED accent lighting, and many more interior comforts at every turn.



The Aspire Class A diesel motorhomes by Entegra Coach have the beauty, strength, and drivability to make your dreams come true!

Showing 1 - 8 of 8
Favorites ()

Motor Home Class A - Diesel

  1. Floorplan - 2017 Entegra Coach Aspire 38M
    Outdoor Entertainment, Rear Bedroom
    • Length: 40 ft 11 in
    • Slides: 4
    • Sleeps: 5
  2. Bath and a Half, Outdoor Entertainment
    • Length: 40 ft 11 in
    • Slides: 4
    • Sleeps: 6

    1 Available Now!

  3. Floorplan - 2017 Entegra Coach Aspire 42DEQ
    Outdoor Entertainment, Rear Bedroom
    • Length: 43 ft 5 in
    • Slides: 4
    • Sleeps: 4
  4. Bath and a Half, Outdoor Entertainment
    • Length: 45 ft 5 in
    • Slides: 4
    • Sleeps: 4

    1 Available Now!

  5. Bath and a Half, Outdoor Entertainment
    • Length: 45 ft 5 in
    • Slides: 4
    • Sleeps: 6

    1 Available Now!

  6. Bunkhouse, Bath and a Half
    • Length: 45 ft 5 in
    • Slides: 4
    • Sleeps: 7

    1 Available Now!

  7. Bath and a Half, Outdoor Entertainment
    • Length: 45 ft 5 in
    • Slides: 4
    • Sleeps: 6
  8. Outdoor Entertainment, Rear Bedroom
    • Length: 45 ft 5 in
    • Slides: 4
    • Sleeps: 4

    2 Available Now!

Showing 1 - 8 of 8
Zip Code

Enter your Zip Code to find RVs nearest you


Aspire Features:

Standard Features (2022)



Chassis

  • Spartan® K2 raised-rail chassis
  • Cummins® L9 turbocharged 450 HP engine with 1,250-lb. ft. torque at 1,400 RPM
  • Allison® 3,000 MH 6-speed transmission
  • Side-mounted, parallel-airflow radiator
  • 170-amp alternator
  • 1,000-watt engine block heater
  • Two-stage engine brake
  • Reyco® Granning® front axle - 17,000 lb. rating
  • Independent front air suspension (IFS)
  • Meritor rear axle - 20,000 lb. rating (Dana® rear axle- 24,000 lb. rating on 40P)
  • Tag axle with air dump - 12,000 lb. rating (N/A 40P)
  • ABS disc brakes on front axle, drum brakes on drive and tag axle
  • 4.88 rear axle ratio (4.78 on 40P)
  • Michelin® 315/80R 22.5” tires (front) and 295/80R 22.5” tires (rear)
  • Bilstein® 46mm shocks
  • Tire pressure monitoring system (TPMS) with temperature monitoring
  • Equalizer™ hydraulic automatic coach leveling
  • Remote air connection
  • (2) 12V chassis batteries
  • 150-gal. fuel tank with dual fills (100 gal. on 40P)
  • 15-gal. DEF tank with dual fills (single fill on 40P, 44R)
  • Spartan® Safehaul tow vehicle air brake system
  • 15,000-lb. hitch with 7-pin plug (10,000-lb. hitch on 40P)

Construction

  • 2" x 4" wood trusses on 16" centers or less filled with bat and Flexfoil insulation then topped with 3/4" 7-ply plywood decking (R-33)
  • X-Bridge™ bracing welded into chassis frame
  • Insulated front and rear caps (R-24) with steel-reinforced front cap and windshield frame
  • 4" arched aluminum trusses filled with bat insulation and reflective Flexfoil® topped with 3/8" plywood decking then one-piece fiberglass
  • Entegra-exclusive Relia-Torque flush-mounted 12V slide out system with VegaTouch and rocker switch controls
  • 2-1/2" exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16" centers or less filled with bat and Flexfoil insulation then covered with high-gloss gelcoat

Heat, AC, Water and Power

  • Aqua-Hot® heated basement storage
  • Onan® 10,000-watt diesel generator, with automatic start, on slide-out tray
  • 3,000-watt pure sine wave inverter
  • (2) L16 AGM batteries (6V/390 amp hrs. ea.)
  • 50-amp power cord on electric powered reel
  • Smart automatic transfer switch with surge protection
  • (3) 15,000-BTU A/C units with heat pumps and condensation drain system
  • Aqua-Hot® 400D hydronic water and heating system with in-floor heat throughout
  • Sani-Con® Macerator holding tank dump system with manual gate valves, manual backup and metal door
  • Black holding tank sprayer
  • City and tank water filtration system
  • Winterizing drain system
  • Trutank™ ultrasonic tank monitoring system displayed on VegaTouch screen
  • Water hose with electric reel

Exterior

  • Power rear engine door with manual override
  • Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights
  • Girard® power entrance door awning with LED lights
  • Girard® Ultra slide out awnings
  • Girard® window awnings
  • Frameless, dual-pane, tinted, safety-glass windows
  • Lit grab handle with doorbell and keypad system for keyless entry

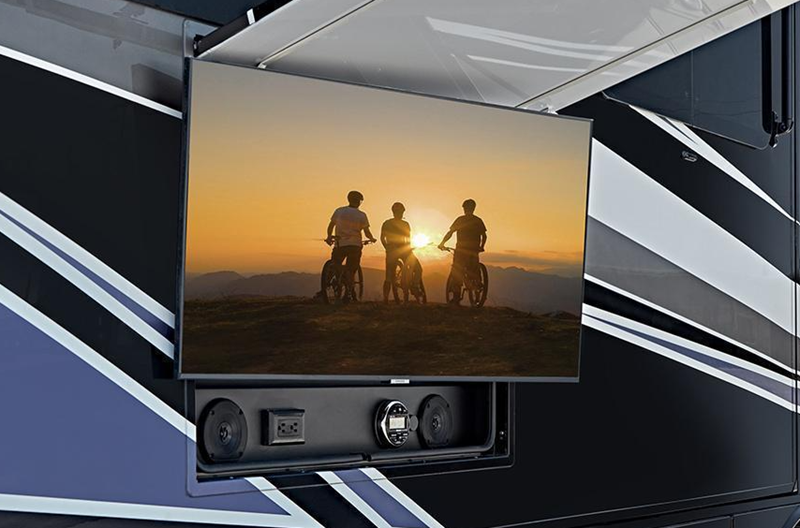

  • 43” Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL radio and speakers with USB port and receptacle
  • Chrome, heated, remote-control, side-view mirrors with integrated cameras
  • Diamond Shield™ front protective film mask
  • LED low beam headlights, halogen high beam headlights and fog lights
  • Daytime running lights
  • LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
  • LED accent lights under passenger slide out rooms
  • Mudflap with chrome “Aspire” nameplate
  • Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
  • Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option
  • Winegard® Rayzar Z1 TV antenna
  • Winegard® Wi-Fi extender with 4G/LTE
  • Heated exterior utility center with 5” LED Firefly® tank monitoring panel
  • Slide out basement storage tray; Push-button power-unlatching baggage doors with LED indicator light

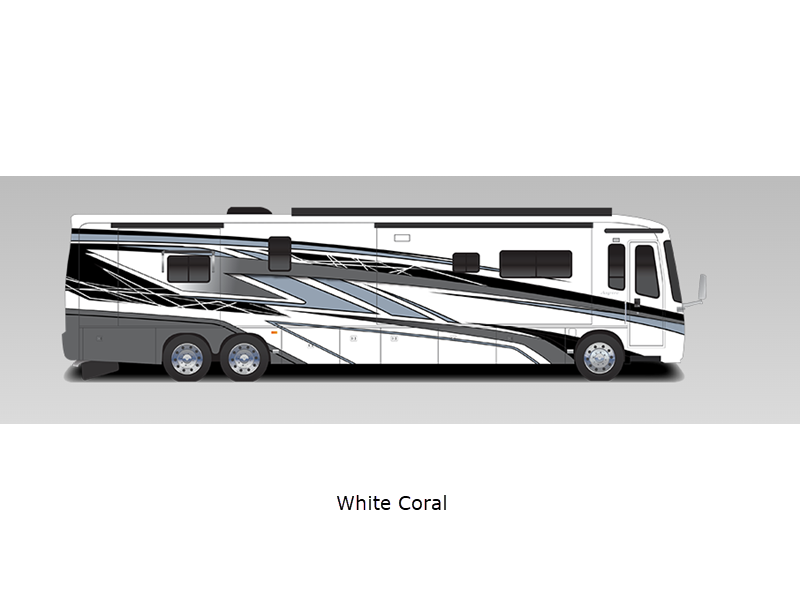

  • Sikkens custom full-body paint
  • Removable screen on entry door

Cockpit

  • Valid 12.3" digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instrument cluster, 360° camera system or GPS navigation
  • Xite™ 360° HD digital camera system
  • Xite™ XSG4 infotainment system with 9" touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution
  • E-Z Steer™ adjustable power steering assist
  • Steering wheel with integrated controls for cruise, wipers, radio and Bluetooth® phone functionality
  • Manual tilt and telescoping steering column
  • JBL® premium audio 5-speaker sound system with amplifier, speakers and DVC subwoofer
  • Ultra-Vision® one-piece wrap-around tinted windshield
  • Villa® leather driver and passenger seats with powered 6-way adjustment, lumbar and footrest functions
  • Powered flush stepwell cover
  • Powered adjustable brake and accelerator pedals
  • Powered front sun visors and privacy shades
  • (2) dual USB ports and (2) 12V sockets for charging

Interior

  • 32" Samsung® LED 1080P Smart TV in front overhead
  • Firefly multiplex system with 10” VegaTouch touchscreen for complete integration of coach controls (mobile app available)
  • 50” Samsung® 4K UHD Smart TV
  • Bose® sound bar with subwoofer and universal remote control
  • Sony® Blu-ray™ player
  • Premium leather Villa® furniture
  • Hand-laid porcelain tiled floors
  • LED interior lighting
  • Decorative ceiling feature with integrated accent lighting
  • Manual solar day shades and blackout night shades
  • Central vacuum system
  • Aire-Secure™ travel locks for all pocket doors
  • Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (44R only)

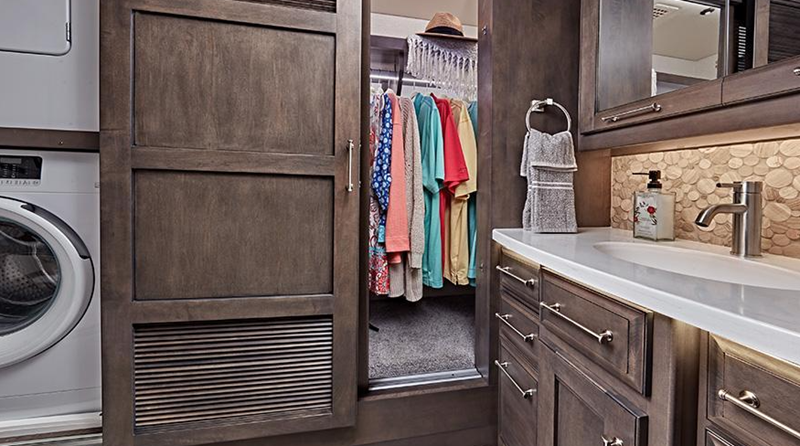

  • Whirlpool® stacked washer and dryer

Kitchen

  • Whirlpool® stainless-steel residential refrigerator with ice maker and water dispenser
  • Induction cooktop with matching wood cover
  • Whirlpool® 1.9-cu. ft. convection microwave oven
  • Fisher & Paykel dishwasher
  • Solid-surface countertops with dimmable LED accent lighting
  • Stainless steel sink
  • Maxxair® power vent exhaust fan with intake and touch screen control
  • Large, deep drawer for waste basket with easy access trash chute (trash chute not available on 40P, 44F and 44R)
  • Slide-out storage tray(s) in overhead cabinet

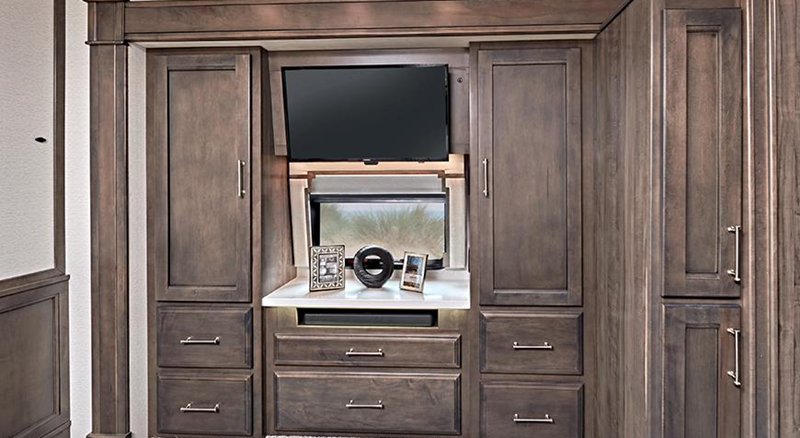

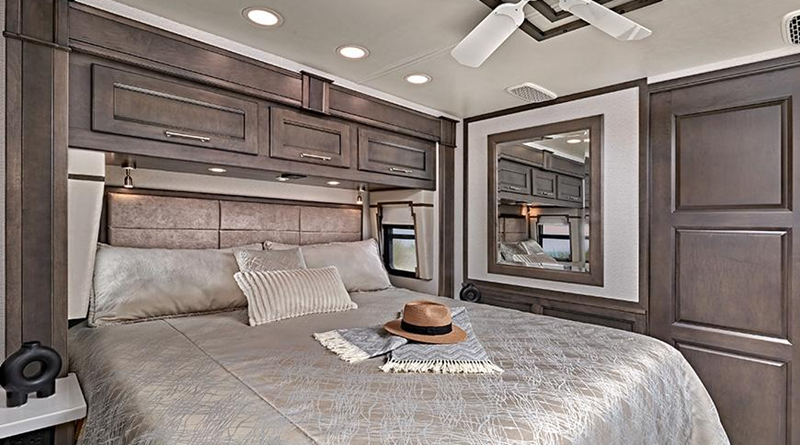

Bedroom

  • King-size gel memory-foam mattress
  • 32" Samsung® LED 1080P Smart TV
  • Bose® sound bar with universal remote control
  • Sony® Blu-ray™ player
  • Ceiling fan
  • Nightstands with solid-surface tops

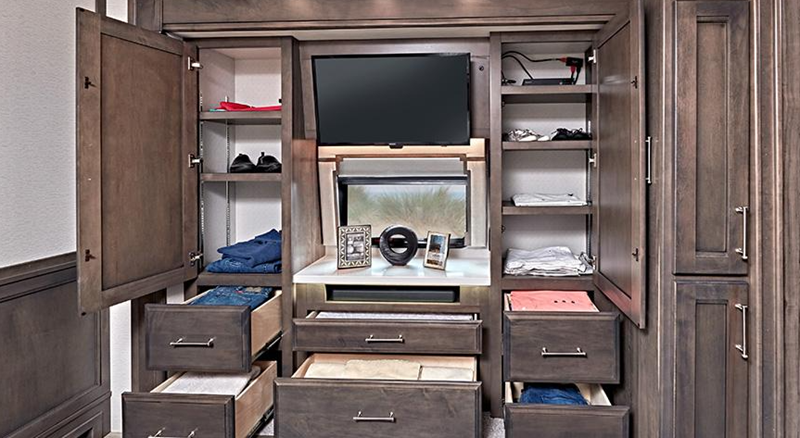

  • Large cedar-lined wardrobe

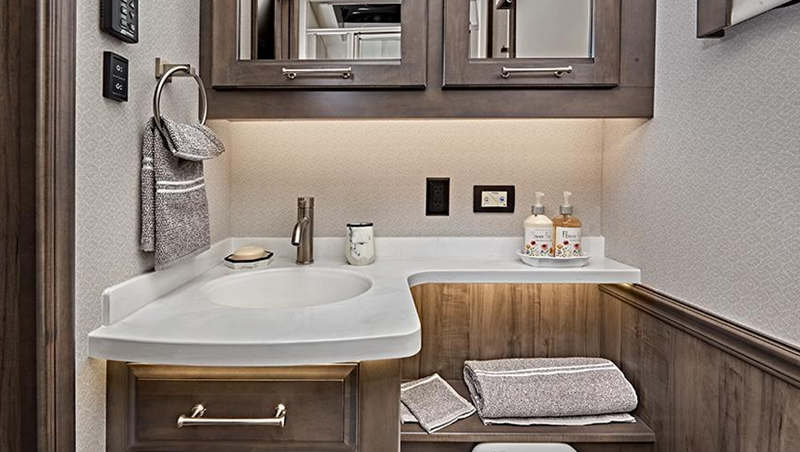

Bathroom

  • Solid-surface countertops with dimmable LED accent lighting
  • Integrated sink

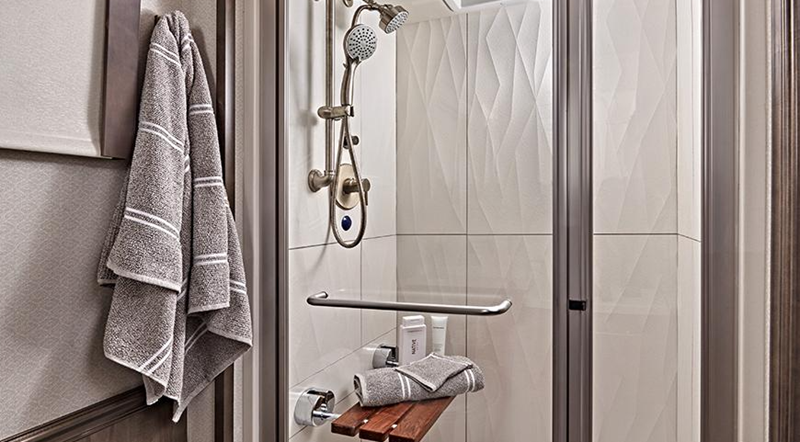

  • Textured porcelain tile shower with skylight and clear glass shower door
  • Teakwood shower seat (N/A 44F)
  • Fixed shower head and separate hand-held spray wand
  • Aqua View SHOWERMI$ER™ water saving system
  • Thetford® macerator toilet in main bath (N/A 44Z)
  • Maxxair® power exhaust fan with intake

Safety

  • Porch light and motion sensor security lights
  • Carbon monoxide detector
  • Security system with glass shatter sensors
  • Smoke alarm
  • Security safe

Options

  • Canadian Standards- CSA
  • Fireplace
  • Theater seating with power recliners and hide-a-bed
  • Theater seating with power recliners and fixed console
  • 100" power reclining sofa
  • Fireplace/TV/entertainment center and work station ILO sofa
  • Winegard In-Motion satellite dome
  • Winegard TRAV'LER Dish Network

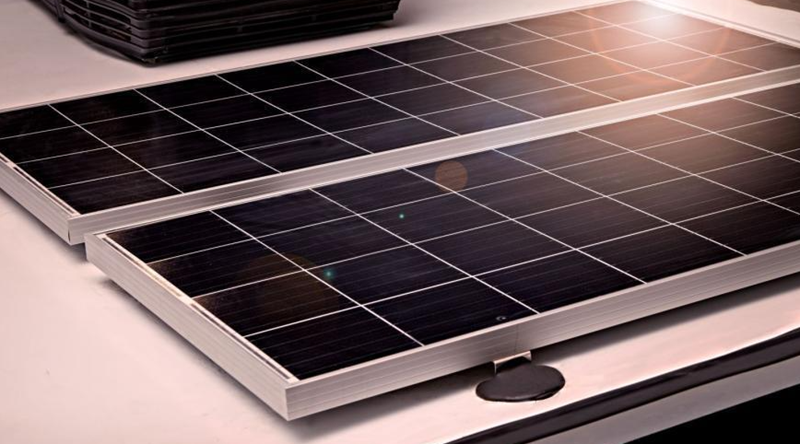

  • Solar panels (dual 100-watt)
  • (2) additional AGM batteries (4 total)
  • Dinette booth

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Manu-Facts:

About Entegra Coach

In the spring of 2008, Entegra Coach became a member of the Jayco family of companies. Ever since, we've taken great pride in the details—and each luxury motorhome we build embodies that principle.



We started building luxury motorcoaches one at a time—with a superior foundation, unrelenting attention to detail and old-world craftsmanship, unmatched engineering innovation, rock-solid construction and a ride that's as smooth and quiet as it is invigorating and well-appointed.



In 2018, our pursuit of the superior luxury motorhome expanded beyond diesel Class A coaches to gas Class As and Class Cs. By building on experience and listening to customers, we're making the Entegra Coach luxury experience a reality for more travelers than ever. As always, we back each coach with personalized customer service and coverage that is unmatched in the industry. So from the moment you drive off the lot, you're not only an owner—you're a member of the family
