New 2024 Phaeton 37 BH Motor Home Class A - Diesel

* The images displayed may represent all Phaeton models

Shop Phaeton 37 BH For Sale

Phaeton 37 BH Description

Tiffin Motorhomes Phaeton Class A diesel motorhome 37 BH highlights:

  • Bath and a Half
  • Booth Dinette-Sleeper
  • Convection Microwave with Air Fryer
  • Two Sofa Beds
  • Exterior TV
  • Expand-An-Island

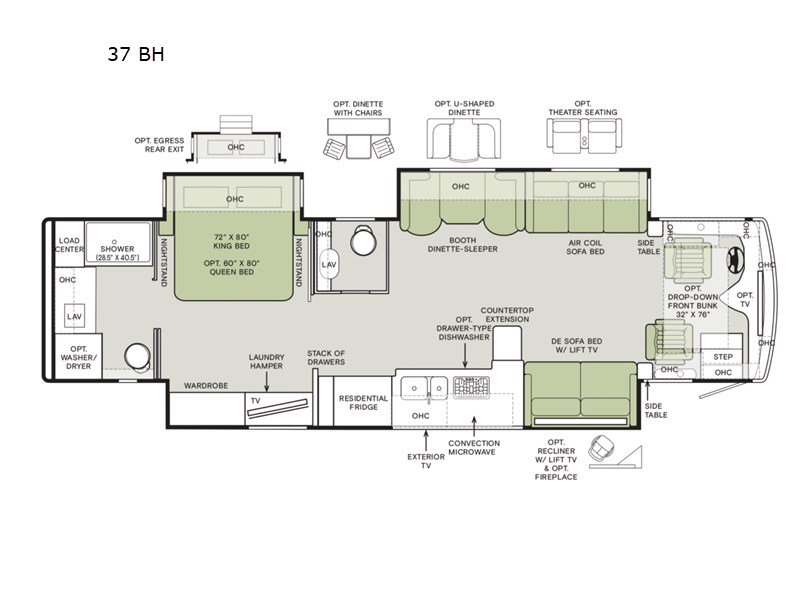

A bath and a half makes life easier on the road with this Phaeton motorhome! The master suite has a king bed slide across from a wardrobe, laundry hamper, and mounted TV, plus access to the full rear bathroom. The bathroom not only has a shower with a seat and a linen closet, but also an area that is prepped to add an optional washer and dryer. The chef can prepare their best meals in the kitchen and clean up will be even easier if you choose to add the optional drawer-type dishwasher. After a long day of traveling, everyone can relax on either the air coil sofa bed, the DE sofa bed with a lift TV behind it, or play some games at the booth dinette. There are many other options you can add to customize it to fit your style like the optional drop-down front bunk, the recliner with lift TV and fireplace, the U-shaped dinette, and theater seating!



Each one of these Tiffin Motorhomes Phaeton Class A diesel motorhomes offer high-end elegance at every turn! A PowerGlide chassis or Freightliner chassis, depending on the model you choose, will give you a smooth ride for every mile, and each coach is now standard with a Cummins L9 450 HP engine to power your journeys. There is a 10.0 kW Onan Quiet Diesel generator, three 15k BTU A/C units, and a Firefly integrations Eclipse module to keep you connected wherever you go. Outside, you'll appreciate the custom rock guard to protect your unit, along with full-body paint with four layers of clear coat and high-performance protection film on the front cap and select areas. A Girard power awning with LED lights also comes standard plus a fiberglass reinforced plastic basement floor, an exterior TV, and more! New features include a redesigned ceiling treatments, new wood colors and decors, a Starlink Pro options, and a raised rail chassis on all models.

Phaeton 37 BH Specifications

Sleeps 7
Slides 3
Length 38 ft 2 in
Ext Width 8 ft 5 in
Ext Height 13 ft 3 in
Int Height 6 ft 11 in
Interior Color Capri, Tide Pool, Stallion
Exterior Color Generation 10, 11 Paint Schemes, Midnight Edition
Hitch Weight 10000 lbs
GVWR 39660 lbs
Fresh Water Capacity 100 gals
Grey Water Capacity 100 gals
Black Water Capacity 55 gals
Tire Size 275/80R22.5
Generator 10.0kW Onan Quiet Diesel
Fuel Type Diesel
Engine Cummins L9
Chassis Freightliner XCR Raised Rail Rear or PowerGlide Raised Rail Rear
Horsepower 450 hp
Fuel Capacity 100 gals
Wheelbase 234 in
Available Beds King
Torque 1250 ft-lb
Refrigerator Type Stainless Steel Residential with French Doors and Bottom Freezer
Refrigerator Size 25 cu ft
Convection Cooking Yes
Shower Size 28.5" x 40.5"
Number of Awnings 2
Axle Weight Front 15660 lbs
Axle Weight Rear 24000 lbs
LP Tank Capacity 35.7 gals
Water Heater Type Truma AquaGo Comfort Instant
AC BTU 45000 btu
Basement Storage 162 cu. ft.
TV Info LR TV, BR Mounted TV, Ext. TV
Awning Info Girard Power Patio and Window
Washer/Dryer Available Yes
Gross Combined Weight 49660 lbs
Shower Type Shower w/Seat
