New 2023 Catalina Destination Series 40BHTS Destination Trailer
Get answers to your questions about this RV
Shop Catalina Destination Series 40BHTS For Sale

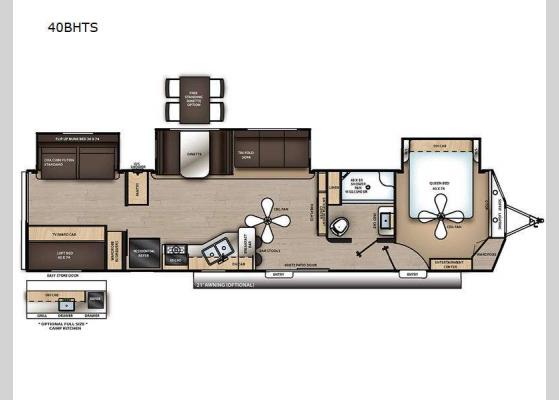

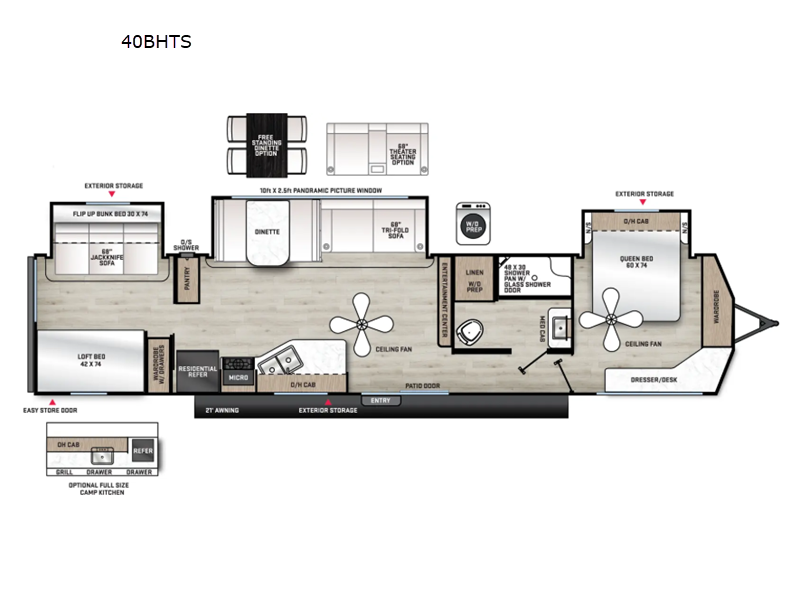

Catalina Destination Series 40BHTS Description
Coachmen Catalina Destination Series destination trailer 40BHTS highlights:
- Private Bunkhouse
- Dual Entry
- Private Bedroom
- Tri-Fold Sofa
- Residential Refrigerator
- Breakfast Bar
Your kids are ready to get away, are you? From having their own rear private bunkhouse with a COA cube futon and flip-up bunk above, and second bunk on the opposite side, they may only come out to play when the sun is shining! When you want to do a little entertaining, the main living area will be the perfect spot to do so with its breakfast bar and bar stools, booth dinette, and tri-fold sofa. You might even want to choose the free standing dinette option if you prefer that type of seating. The private front bedroom with its own exterior entry door features a queen bed as a nice retreat, and with a separate entry door you can easily slip out for late-night star gazing, a quiet evening out under the optional 21' patio awning, or an early morning walk. There is an additional option, a full size camp kitchen... outside, if that sounds like something that would be needed or even wanted!
The Catalina Destination Series trailers by Coachmen RV are constructed with a seamless Alpha roof membrane, a cambered structural steel l-beam frame, full length frame E-coated outriggers, fiberglass insulation throughout, and a platinum aluminum exterior metal skirt. Along the exterior you will find JBL Elite exterior speakers, a battery disconnect switch on the A frame and a LP quick connect port. The interior offers two 12V 14" ceiling vent fans in the living and bedroom, full length kitchen drawer guides, a slim line range hood, a skylight above the shower, and Congoleum Woodplank linoleum flooring for easy care. Why wait to enjoy your favorite location every chance you get, choose your favorite destination trailer today!
Catalina Destination Series 40BHTS Specifications
Sleeps | 8 |
Slides | 3 |
Length | 40 ft 11 in |
Ext Width | 8 ft |
Ext Height | 11 ft 8 in |
Int Height | 7 ft |
Hitch Weight | 1130 lbs |
GVWR | 11000 lbs |
Dry Weight | 9669 lbs |
Cargo Capacity | 1331 lbs |
Fresh Water Capacity | 44 gals |
Grey Water Capacity | 80 gals |
Black Water Capacity | 40 gals |
Furnace BTU | 35000 btu |
Number Of Bunks | 2 |
Available Beds | Queen |
Refrigerator Type | Residential |
Refrigerator Size | 18 cu ft |
Cooktop Burners | 3 |
Shower Size | 48" x 30" |
LP Tank Capacity | 30 lbs |
Water Heater Capacity | 10 gal |
Water Heater Type | Gas/Electric DSI |
AC BTU | 15000 btu |
TV Info | LR 39" TV |
Axle Count | 2 |
Number of LP Tanks | 2 |
Shower Type | Shower w/Seat |
